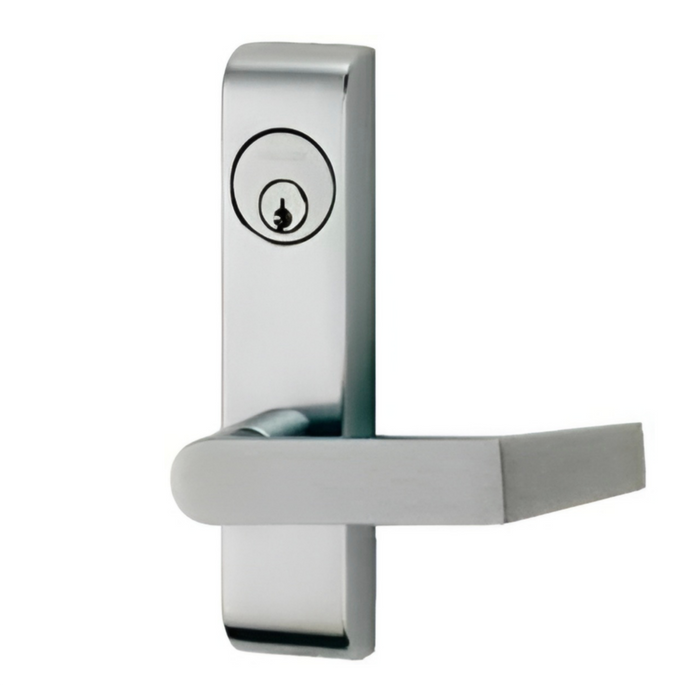

Von Duprin 376WDC-L Lever Trim for 5547WDC Exit Devices | Key Locks and Unlocks | 370 Series Heavy Duty Grade 1
Professional 370 Series Control Trim for Commercial Exit Device Applications
The Von Duprin 376WDC-L is a heavy-duty, Grade 1 lever trim from the 370 Series Control Trims line, engineered specifically for use with 5547WDC exit devices. Featuring a Key Locks and Unlocks function with a mortise cylinder, this commercial-grade lever trim delivers the flexibility and modular adaptability that Von Duprin is known for. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards and compliant with ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132, this trim is built to meet the rigorous demands of professional door hardware installations.
Professional Features & Benefits
- Key Locks and Unlocks Function: The 376WDC-L provides a Key Locks and Unlocks trim function, offering controlled access management ideal for commercial security applications requiring lever-operated entry control.
- Grade 1 Heavy-Duty Construction: Rated Heavy Duty and certified to ANSI/BHMA A156.3 2014 Grade 1, this lever trim is engineered for high-traffic commercial environments where long-term reliability is essential.
- Mortise Cylinder Compatibility: Designed to accept a mortise cylinder, providing compatibility with a wide range of keying systems and master key configurations for facility-wide access management.
- 370 Series Modular Design: Part of Von Duprin’s 370 Series Control Trims, this product is built with flexibility in mind, allowing new options and functionality to be added as facility needs evolve without replacing the entire exit device system.
- Compatible with 5547WDC Exit Devices: Specifically designed for use with Von Duprin 5547WDC exit devices, ensuring seamless integration and proper mechanical and electronic convergence in access control applications.
- Multi-Standard Certification: Meets ANSI/UL 10C (fire-rated only), ANSI/UL 305, CAN/ULC-S104 (fire-rated only), and CAN/ULC-S132, supporting compliance across a broad range of building code and life safety requirements.
- Investment Protection: Von Duprin’s versatile modular platform enables cost-effective upgrades to existing devices, protecting your hardware investment well into the future as mechanical and electronic technology converge.
Technical Specifications
- Subcategory: Exit Device Trim
- Series: 370 Series
- Grade: Grade 1
- Duty Level: Heavy Duty
- Function Description: Key Locks and Unlocks
- Product Group: Exit Devices and Trim
- Product Subgroup: Exit Device Trim
- Product Type: Exit Device Trim
- Commercial/Residential: Commercial
- Cylinder and Keyways: Mortise Cylinder
- Handle Type: Lever
- Product Model: 376WDC-L
- Door Hand Direction: Yes
- Product Category: Exit Devices and Trim
- Department: Door Hardware
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Von Duprin Quality?
Von Duprin 370 Series Control Trims deliver professional-grade reliability backed by ANSI/BHMA A156.3 2014 Grade 1 certification and compliance with ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 standards. The modular, heavy-duty design of the 376WDC-L protects your facility’s hardware investment by enabling cost-effective upgrades and seamless integration with existing 5547WDC exit devices. Engineered for demanding commercial applications where dependable performance and code compliance are essential.
Manufacturer Resources
Von Duprin 55 Series Catalog
Product Specs
- Subcategory:
- Exit Device Trim
- Series:
- 370 Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Function Description:
- Key Locks and Unlocks
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trims
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- Mortise Cylinder
- Handle Type:
- Lever
- Product Model:
- 376WDC-L
- Door Hand Direction:
- Yes
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
Von Duprin VON-376WDC-L-626 – Frequently Asked Questions
1) What exit device does the Von Duprin 376WDC-L lever trim work with?
The 376WDC-L is built for Von Duprin 5547WDC exit devices. It is a 370 Series control trim, so it mounts to that device rather than working as a standalone lockset. If your opening has a different Von Duprin device on it, this is not the trim for it.
2) How does the Key Locks and Unlocks function on this Von Duprin lever trim behave day to day?
Key Locks and Unlocks means the key is used to toggle the outside lever between locked and unlocked states, rather than momentarily retracting a latch. Turn it one way and the lever stays free for entry; turn it back and the lever is locked off. Useful where a building opens in the morning and secures at night without anyone needing to stand at the door. Egress from the inside is always free through the exit device push pad.
3) Do I have to specify handing when ordering the 376WDC-L trim?
Yes, handing is required. The 376WDC-L is offered right hand reverse (RHR) or left hand reverse (LHR), which is normal for exit device trim since all exit devices are on reverse-bevel openings that swing out. Stand outside the door: if the hinges are on your right, it is RHR.
4) Does the Von Duprin 376WDC-L come with a cylinder?
The 376WDC-L takes a mortise cylinder, and that cylinder is a separate order. Plan to add a mortise cylinder in the keyway your facility is keyed to, with the cam Von Duprin specifies for this trim, so it can be keyed into your existing master key system.
5) What do I need to pick besides finish when ordering this Von Duprin exit trim?
Three choices on the order: handing (RHR or LHR), lever design, and finish. Lever designs offered are 01, 02, 03, 06, 07, 12 and 16. Finishes are 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 643E aged bronze, and 693/SPBLK black painted. The mortise cylinder is on top of that.
6) Can I use this Von Duprin trim on a fire rated door?
The 376WDC-L is certified to ANSI/BHMA A156.3 2014 Grade 1 and complies with ANSI/UL 10C and CAN/ULC-S104 in fire rated configurations, plus ANSI/UL 305 and CAN/ULC-S132 for panic hardware. On a fire door the whole assembly has to be a fire exit hardware listing, so the 5547WDC device it pairs with must be the fire rated version and no dogging is permitted.
7) Is there an electrified alternative to the Von Duprin 376WDC-L lever trim for access control?
The 376WDC-L is a mechanical lever trim keyed with a mortise cylinder, so control is at the key. If the opening needs to be locked and unlocked from a card reader or access control panel instead, Command Access offers electrified exit trims with 12V/24V operation and fail safe or fail secure options, including the ET15, ET25 and the ET26, which is Grade 1 with a field reversible design. Falcon also lists the 510L-FSA/FSE, an electrified heavy duty lever exit trim for 25 Series devices.
8) What is a comparable Grade 1 heavy duty lever exit trim to the Von Duprin 376WDC-L if the opening needs a storeroom function instead of key locks and unlocks?
The 376WDC-L is a Grade 1, heavy duty lever trim with a key locks and unlocks function and a mortise cylinder. If the opening calls for storeroom operation instead, the Pamex E9000 is a Grade 1 storeroom function heavy duty exit device trim with an L3 lever, and the Marks USA M195F is a storeroom function lever and rose trim with spring loaded roses for M9900 touchbar devices. Storeroom keeps the lever locked at all times with the key retracting the latch, rather than allowing the key to leave the lever unlocked as the 376WDC-L does.
9) Which exit device lever trim should I use instead of the Von Duprin 376WDC-L on a nightlatch opening where the lever should never unlock?
The 376WDC-L is a key locks and unlocks trim, so the key can leave the lever free. For an opening that must stay locked with the key only retracting the latch momentarily, look at nightlatch trims: the Sargent 704ET is a Grade 1 heavy duty night latch lever exit trim with field reversible operation, the Sargent 704-ETL is a Grade 1 heavy duty night latch lever trim with key retract for PE Series devices, and the Dorma YR03R is a wide stile escutcheon lever trim with nightlatch function supplied less cylinder.
10) I want a nightlatch trim instead of key locks and unlocks. What else is there?
Key Locks and Unlocks holds the lever unlocked until you key it back, which is wrong if you want the door to stay secure and only allow momentary entry. For that behavior look at nightlatch trims such as the Sargent 704ET or 704-ETL, both Grade 1 heavy duty night latch function, or the Corbin Russwin VT957ET for ED5000 Series devices. Each is matched to its own device family, so pick the one that fits the device already on the door.
11) Is the 376WDC-L a complete lock, or do I still need an exit device?
It is trim only. The 376WDC-L is the outside lever and escutcheon that operates a Von Duprin 5547WDC exit device; the device itself, with its latching and push pad, is a separate item and must already be on the door or ordered alongside. Inside egress comes from the device, not from this trim.
12) What is the difference between the Von Duprin 376WDC-L and the Falcon 510L exit device trim?
Both are heavy duty lever exit device trims. The 376WDC-L is a Von Duprin 370 Series Grade 1 trim with a key locks and unlocks function and a mortise cylinder, built for 5547WDC exit devices. The Falcon 510L is a heavy duty classroom function lever trim for 24/25 Series devices. Classroom operation is keyed from the outside to lock and unlock the lever with no inside control, and the device families they mount to are different, so they are not interchangeable on the same door.
13) Can a Falcon 212L or 179L be used in place of the Von Duprin 376WDC-L?
They serve different duty levels and devices. The 376WDC-L is a heavy duty Grade 1 trim for 5547WDC exit devices. The Falcon 212L is a medium duty escutcheon lever trim with shear pin protection built as a blank escutcheon for 20 Series devices, and the Falcon 179L is a medium duty classroom function lever control trim for 1790 Series devices. For a high traffic commercial opening matching the 376WDC-L, stay with a heavy duty trim.
14) Is there a keyed entry lever exit trim alternative to the Von Duprin 376WDC-L for a 1-3/4 inch door?
Several keyed lever trims cover standard commercial door thicknesses. The Tell EDELT53 is an escutcheon lever exit device trim with entry function rated for 1-3/8 inch to 1-3/4 inch doors, and the Tell EDELT80 is the storeroom function version in the same thickness range. Design Hardware also lists the KIL entry function trim with a Schlage C keyway flat lever and the LE08 entry function escutcheon lever trim, both Grade 1, for 1000 and 2000 Series devices. Unlike the 376WDC-L, these mount to their own manufacturers' exit devices rather than to a Von Duprin 5547WDC.
15) What is the alternative to the Von Duprin 376WDC-L if I want pushbutton code entry on the outside of an exit device?
The 376WDC-L is key operated through a mortise cylinder. For credential-free code entry, Dormakaba offers the E-Plex 201U electronic pushbutton exit trim for wide stile doors, the PowerPlex P201U exit trim for rim, mortise and surface vertical rod devices, and the E-Plex 5067 mechanical pushbutton mortise lock. These replace key management with a keypad code rather than a keyway.
16) Do I need to specify handing on the Von Duprin 376WDC-L the way I would on other exit trims?
Yes. The 376WDC-L is handed and is ordered right hand reverse or left hand reverse. Some comparable trims are handled differently: the Sargent 704ET is a field reversible night latch lever trim and the Command Access ET26 is described as field reversible, so one part covers either hand. If you are stocking spares across a facility, that is a real difference in how many part numbers you carry.
17) How does the Von Duprin 376WDC-L compare to the Command Access 230L trim?
The 376WDC-L is a mechanical 370 Series lever trim with a key locks and unlocks function for Von Duprin 5547WDC devices. The Command Access 230L is an electrified replacement trim for the Von Duprin 230L, built for V96/36/23 Series devices with 12V/24V operation and fail safe or fail secure options. They target different Von Duprin device families, and the 230L adds remote electrical control where the 376WDC-L is key controlled.
18) Which Sargent trim is closest to the Von Duprin 376WDC-L for a surface vertical rod or mortise exit device?
On the Sargent side, the 744 is a Grade 1 70 Series exit device trim with freewheeling operation and key retracts latch, listed for surface vertical rod and mortise 8700 and 8900 Series devices. The Von Duprin 376WDC-L is a Grade 1 heavy duty lever trim with key locks and unlocks for 5547WDC devices. The functional split is that the Sargent 744 uses the key to retract the latch each time, while the 376WDC-L key can leave the lever unlocked.
19) If the outside trim needs a thumbpiece rather than a lever, what replaces the Von Duprin 376WDC-L?
The 376WDC-L uses a lever handle. For a thumbpiece pull instead, the Tell EDTHP53 is a thumbpiece exit device trim with keyed entry function for 1-3/8 inch to 1-3/4 inch doors, and the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom function thumbpiece with pull plate and cylinder, supplied less cylinder. Thumbpiece trim is often chosen where lever projection is a concern in a corridor.
