The 990EO
Th 990EO trim is an Exit Only Plate used on the exterior of the door.
98/99 Trim Functions
Von Duprin protects your investment by empowering you to adapt with flexible solutions and modular options. The 98/99 Series features numerous trim options to serve your different needs. Designed with flexibility in mind, our solutions offer ease of adding new options as they are developed.
With Von Duprin, you can be confident that as the needs of your facility change, our products can be upgraded easily to meet your needs, especially as the mechanical and electronic technology converge. Von Duprin’s versatile design enables you to add functionality to existing devices in a cost-effective way, protecting your investment well into the future.
Specifications
Specifications and certifications are specific to each configuration. See the 98/99 Series catalogs for more information.
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132
Functions & Trim
A variety of functions and trim options are available, but only the standard options are listed below. Refer to the 98/99 Series catalog for more information.
Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt, the lever or knob is rigid
98/99 Series popular trims
- 990: pull trim, 5 standard functions:
- Classroom (TP)
- Storeroom (NL)
- Dummy trim (DT)
- Passage (TP-BE)
- Exit only (EO)

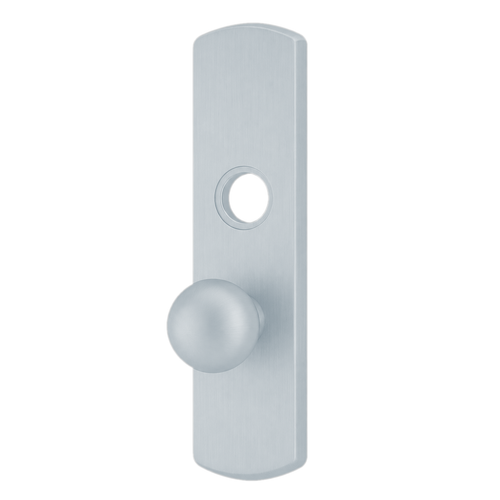

- 996: lever or knob trim, 4 standard functions:
- Classroom (L, K)
- Storeroom (L-NL, K-NL)
- Dummy (L-DT, K-DT)
- Passage (L-BE, K-BE)
Resources and Downloads
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Subcategory:
- Exit Device Trim
- Series:
- 98/99 Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Function:
- Exit Only Plate
- Trim:
- Exit Only Plate
- Handing:
- Non-Handed
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trim
- Model:
- 990EO
- Commercial/Residential:
- Commercial
