Von Duprin 230EO Exit Device T...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$137.00
$76.24

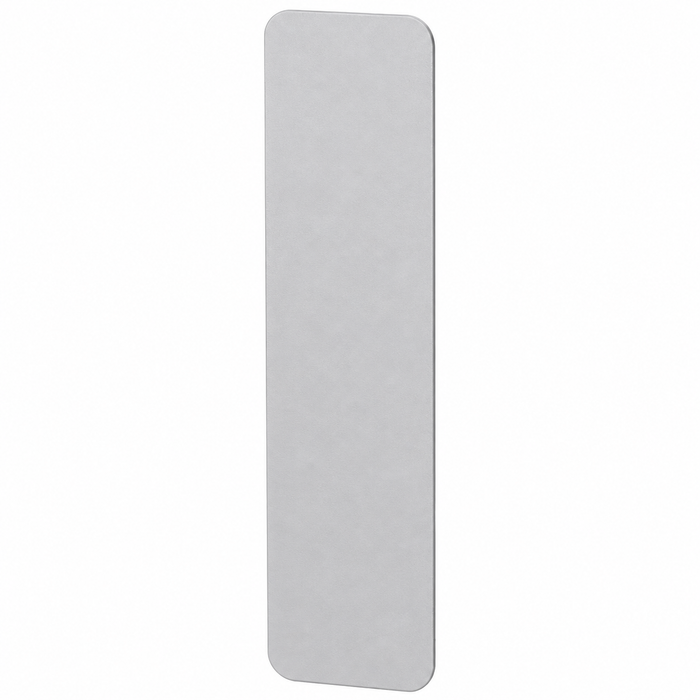

Von Duprin 230EO Exit Device Trim Plate, Exit Only Function for 22 Series

Von Duprin 230EO Exit Device Trim Plate, Exit Only Function for 22 Series

(No reviews yet) Write a Review

Model: 230EO 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$137.00
$76.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 230EO Exit Device Trim Plate, Exit Only Function for 22 Series

Heavy-Duty Commercial Exit Only Trim for 22 Series Exit Devices

The Von Duprin 230EO is a professional-grade Exit Only trim plate designed specifically for compatibility with Von Duprin 22 Series exit devices. Featuring a heavy 10 gauge (2.4 mm) steel escutcheon, this trim plate delivers exceptional durability and long-term reliability in demanding commercial environments. The 230EO is non-handed, offering flexible installation without the need to specify door hand direction, and is furnished standard with the number 06 lever style, with number 03 and number 17 optional style levers also available.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: Features a heavy 10 gauge (2.4 mm) steel escutcheon for exceptional strength and durability in high-traffic commercial applications.
  • Exit Only Plate Function: Configured as an exit only plate, providing controlled egress without entry trim hardware for designated one-way exit points.
  • 22 Series Compatibility: Engineered specifically for use with Von Duprin 22 Series exit devices, ensuring seamless integration and reliable performance.
  • Non-Handed Design: Non-handed configuration simplifies ordering and installation, eliminating the need to specify door hand direction for most applications.
  • Flexible Lever Style Options: Furnished standard with number 06 lever style; number 03 and number 17 optional style levers are available to suit varied aesthetic and functional requirements.
  • Modular & Upgradeable Platform: Von Duprin's versatile modular design enables easy addition of new options and functionality to existing devices in a cost-effective way, protecting your investment into the future.
  • Grade 1 Heavy Duty Rating: Rated Grade 1 Heavy Duty for commercial-grade performance in the most demanding institutional and commercial environments.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 230 Exit Trim
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Compatibilty: 22 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Product Model: 230EO
  • Product Function: Exit Only Plate
  • Door Hand Direction: Non-Handed
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability with heavy 10 gauge (2.4 mm) steel escutcheon construction rated Grade 1 Heavy Duty for the most demanding commercial applications. Von Duprin's versatile, modular design empowers facility managers and installers to adapt, upgrade, and expand functionality as needs evolve, protecting the investment well into the future. Engineered for demanding commercial environments where dependable performance and long-term value are essential.

Product Specs

Subcategory:
Exit Device Trim
Series:
230 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
22 Series Exit Devices
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Product Model:
230EO
Product Function:
Exit Only Plate
Door Hand Direction:
Non-Handed
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 230EO 689 – Frequently Asked Questions

1) What does the Von Duprin 230EO trim actually do, and can you get in the door with it?
The 230EO is an exit only trim plate. It dresses the outside face of the door and gives you no way in from the outside, so the opening is egress out, no entry back through. If you need key access from the pull side, you want a nightlatch or keyed entry trim instead, like the Sargent 704ET night latch lever trim or the Tell EDELT53 keyed entry escutcheon lever trim. Choose the 230EO when the door is a designated one way exit.
2) Do I have to specify left hand or right hand when ordering the Von Duprin 230EO?
No handing to specify. The 230EO is non handed, so one part covers either swing and you do not have to work out the hand off the door schedule before ordering. That also means one part number to stock if you are carrying spares across a building with doors swinging both ways.
3) Is the Von Duprin 230EO heavy enough for a high traffic school or hospital entrance?
Rated Grade 1 Heavy Duty, with a 10 gauge (2.4 mm) steel escutcheon behind the lever. That is the top commercial grade under ANSI/BHMA, which is what an institutional spec normally calls for on a main egress door. It is a commercial part, not a residential one.
4) Is the Command Access 230L the same thing as a Von Duprin 230EO?
No. The Command Access 230L is an electrified version of the Von Duprin 230L exit trim with 12V and 24V operation and fail safe or fail secure options, listed for V96/36/23 Series devices - it needs power run to the door and a controlled unlock. The Von Duprin 230EO is a mechanical Exit Only Plate for 22 Series exit devices with no electrical function. The similar model number does not make them substitutes.
5) What is the difference between an exit only plate and a passage function exit trim?
Passage trim gives an always-unlocked outside handle that retracts the latch, as with the Arrow SRX01 passage trim with Sierra lever and rose for ED910, S1150 and S1250 devices, the Corbin Russwin 3310AET passage trim for ED300 Series, and the Corbin Russwin x810ET passage trim for ED4000 Series. The Von Duprin 230EO is an Exit Only Plate, which gives no outside operation - the door leaves only from the egress side. That distinction decides whether the opening is a one-way exit or a freely usable door.
6) If the door needs to be openable from the outside with a key, is the 230EO the wrong trim?
Yes - the Von Duprin 230EO is an Exit Only Plate, meaning egress only with no keyed entry from the outside. For key access, the Sargent 704ET is a Grade 1 Night Latch lever trim for 700 Series devices with field reversible operation, and the Sargent 744 is a Grade 1 Night Latch trim where the key retracts the latch, for 8700 and 8900 Series surface vertical rod and mortise devices. Both change the opening from one-way egress to key-controlled entry.
7) What trim replaces a 230EO when the door has to be lockable and unlockable by key from the corridor side?
Storeroom function trim covers that. The Design Hardware KIL Storeroom trim is Grade 1 storeroom function for 1000 and 2000 Series exit devices with a Schlage C keyway and flat lever, the Tell EDELT80 is a storeroom function escutcheon lever trim for doors 1-3/8 inch to 1-3/4 inch thick, and the Pamex E9000 is a Grade 1 storeroom L3 lever heavy duty trim for doors 1-3/8 inch to 2 inch. The Von Duprin 230EO is an Exit Only Plate, so it has no keyed control at all.
8) What finishes does the Von Duprin 230EO exit trim come in?
Four: 526 powder coated chrome, 622 matte black, 689 powder coated aluminum, and 695/SP313 dark bronze. All four are powder coat or painted finishes rather than plated brass or stainless, so if you are matching existing openings, match to the number rather than to the look of an old plate. 689 and 695 are the usual pairing with aluminum storefront and dark bronze frames.
9) Which lever comes on the Von Duprin 230EO, and can I get a different one?
It ships standard with the number 06 lever. The number 03 and number 17 lever styles are the optional alternatives, so if the rest of the building is standardized on 03 or 17 you can match without changing trim families. Call out the lever style on the order, otherwise you get the 06.
10) Can I add a cylinder to the 230EO later if the tenant wants key access?
No. Exit only trim has no cylinder provision, so converting the opening to key access means swapping to a different trim, not drilling this one. Von Duprin's 22 Series platform is modular, so the device itself stays and you change the trim. If key retraction is the goal, look at a nightlatch trim such as the Sargent 704ET or a keyed entry escutcheon like the Tell EDELT53.
11) Can I use a dummy trim like the Detex 02BN in place of an exit only plate?
They look alike but are not the same part. The Detex 02BN is a dummy S-lever trim with a blank escutcheon for Value Series exit devices, and the Falcon 212L is a blank escutcheon lever trim for 20 Series devices. Both are fixed trim that does nothing mechanically. The Von Duprin 230EO is the Exit Only Plate for 22 Series exit devices, non-handed, and is specified as the trim for that device platform. Match the trim to the device series on the door rather than to the look of the escutcheon.
12) For a classroom door, what exit trim should I look at instead of an exit only plate?
Classroom function trim is the fit: the Falcon 510L is a heavy duty classroom function lever trim for 24/25 Series devices, the Falcon 179L is a medium duty classroom function lever control trim for 1790 Series devices, and the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom trim with thumbpiece, pull plate and cylinder, supplied less cylinder. The Von Duprin 230EO is Grade 1 heavy duty but its function is Exit Only Plate, which gives no outside control for a teacher.
13) Which exit trims match the Grade 1 heavy duty level of the Von Duprin 230EO?
The Von Duprin 230EO is Grade 1 with a heavy duty level. Among comparable exit trims, the Sargent 704ET and the Sargent 704-ETL are both Grade 1 heavy duty night latch trims, and the Falcon 510L is heavy duty for 24/25 Series devices. The Pamex E9000 and the Design Hardware LE08 are Grade 1 as well. Function still differs across them, so match the grade and then the function the opening needs.
14) We want keypad or credential access added to an exit device - is exit only trim the wrong direction?
It is. The Von Duprin 230EO is an Exit Only Plate with no outside access at all. For access control on the pull side, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile doors, the Dormakaba PowerPlex P201U is exit trim for rim, mortise and surface vertical rod devices, and the Command Access ET26 is Grade 1 electrified exit trim with a field reversible design. Each requires the device and door prep to suit that trim.
15) Do I have to specify hand when ordering exit trim, or can I stock one part for both hands?
The Von Duprin 230EO is non-handed, so one part covers left and right hand openings without specifying door hand direction. Among comparable trims, the Sargent 704ET has field reversible operation and the Command Access ET26 has a field reversible design, which get to the same result by adjustment at the door. For a property manager standardizing a stock of exit only trim across a portfolio, non-handed removes the hand from the order line entirely.
16) Where do I get the door prep dimensions for a 22 series device and trim?
Von Duprin publishes template indexes for the 22 Series covering both hollow metal and wood doors, with separate indexes for the device prep and for the trims and strikes. Pull the trims and strikes index that matches your door material, hollow metal or wood, before you cut the prep for the 230EO.
17) Is there an exit only trim in matte black or dark bronze, or do I have to accept a brushed finish?
The Von Duprin 230EO exit only trim plate comes in 622 Matte Black, 695/SP313 Dark Bronze, 526 Powder Coated Chrome and 689 Powder Coated Aluminum, so the exterior side of a one-way exit can be matched to storefront or dark bronze door hardware without changing function. Comparable exit trims such as the Tell EDELT80 and Tell EDPT are catalogued in 26D. Pick the finish family first when the door is on a visible elevation.
