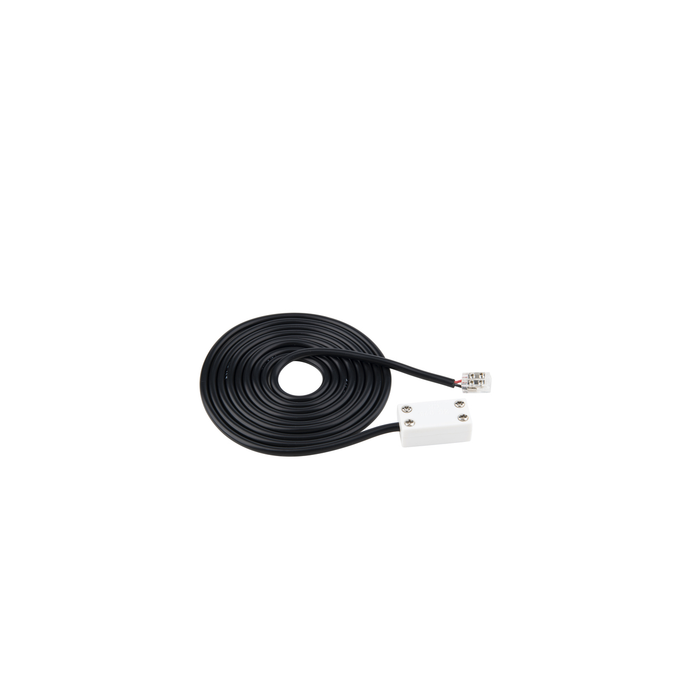

WAC Lighting 480" Basics and Gemini 24VDC Power Extension Cable

WAC Lighting 480" Basics and Gemini 24VDC Power Extension Cable

(No reviews yet) Write a Review

Model: T24-BS-EX2-480-BK
From the Basics & Gemini Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.00
$48.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting - 480" Basics and Gemini 24VDC Power Extension Cable

Build an economical and versatile layered LED Tape light system using Basics or Gemini. Basics & Gemini LED tape lights are easy-to-setup with seamless and scalable run lengths, sharing power supplies and components. Basics LED Tape delivers precision and performance with two selectable power outputs and five selectable color temperatures from warm 2700K to cool 5000 Kelvin. Gemini is a continuous phosphorus (COB) tape that eliminates unsightly diode imaging and great for applications where the LED Tape Light is reflected or in direct sight.

  • Basics & Gemini 24VDC In-Wall Rated Power Extension Cable 480in Length
  • Power extension cables can be used to connect a strip of Basics & Gemini Tape Light to a power supply with power continuity.
  • Flexible and customizable with a low profile. Use with universal input voltage 120-220-277V power supply: PS-24DC-U and T24-BS-EX2 lead wire required or 120VAC power supply: EN-BT60 with lead wire included.
  • Basics LED tape light can be cut in the field every 4in and re-connected with safe and secure connectors. Gemini LED tape light can be cut in the field every 2in and re-connected with safe and secure connectors. Smooth robust illumination deployed from evenly placed UV coated LEDs for cove, accent and task lighting applications.
  • Smooth and continuous dimming with an electronic low voltage dimmer (ELV), TRIAC or 0-10V (0-10V only available with PS-24DC-U power Supply). Dimmers should be installed on the primary side of the transformer. Driver input voltage: 120V-220V-277V AC, Driver output voltage: 24V DC. Driver is available in a 288W max load.
  • High Powered LED's 90+ CRI, Rated Hours: 80,000, Voltage: 24V, Lumen Options: 100+ lm/ft, or 200+ lm/ft.
  • Standards: UL & cUL Listed for Damp Locations IP20 rated. CEC Title 24 & ADA Compliant.

Features

  • Extends distance between power supply to beginning section
  • Includes LED-T-B (1 pc) & Screw driver
  • Can be mounted on ceiling or wall in all orientations

Manufacturer Resources:

Specification Sheet

Installation Guide

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Collection:
Basics & Gemini
Hardwired or Portable:
Plugin
Product Type:
Connector
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Indoor Lighting
Product Subgroup:
Accessories
Base Material:
Aluminum
Location Rating:
Damp
Brand Family:
WAC Limited
CEC Listed:
Yes
Energy Star:
Yes
Wire Length:
480"
Subcategory:
LED Tape Lighting
Certification:
UL, cUL, IP20
Location Indoor/ Outdoor:
Indoor
Title 24 Compliant:
Yes
Segment:
Lighting
Product Voltage:
24V
Product Length:
0.38"
Mounting Method:
Any
Product Style:
Functional
Product Height:
0.57"
Product Category:
Task & Cove
Product Width:
480"
Department:
Electrical

WAC Lighting T24-BS-EX2-480-BK – Frequently Asked Questions

1) Which WAC power supplies does the T24-BS-EX2 cable work with?
Use it with the universal input PS-24DC-U supply (120/220/277V in, 24V DC out), where the T24-BS-EX2 lead wire is required. If you are running the 120VAC EN-BT60 power supply instead, that one already includes its own lead wire, so this extension is only needed when you want extra distance.
2) Can this WAC extension cable be run inside a wall?
Yes. The Basics and Gemini 24VDC power extension cable is in-wall rated, so it can be concealed in wall construction between the driver location and the start of the tape run. It is an indoor part, damp location rated and IP20.
3) Will this cable work with both Basics and Gemini tape light, or do I need a different lead for each?
One cable covers both. Basics and Gemini share power supplies and components, and the T24-BS-EX2-480 is the 24VDC extension for either family. That matters if you are mixing the two in a layered run: Basics for selectable output and color temperature, Gemini COB where the tape is visible or reflected and you do not want diode imaging.
4) Does anything come in the box with the T24-BS-EX2-480, or do I need separate connectors?
The cable ships with one LED-T-B connector and a screwdriver, so you can terminate to the tape without buying a separate connector for that joint. Additional cuts and reconnections in the run need their own connectors: Basics tape can be cut every 4 inches, Gemini every 2 inches.
5) Will using a long 40 foot extension cable affect how the tape light dims?
Dimming is handled on the line side, not through this cable. Basics and Gemini dim with an ELV, TRIAC, or 0-10V control (0-10V only with the PS-24DC-U supply), and the dimmer goes on the primary side of the transformer. The extension only carries the 24V DC output from the driver to the first tape section.
6) Does this WAC tape light cable meet California Title 24 and ADA requirements for a commercial job?
Yes on both. The Basics and Gemini 24VDC extension cable is CEC Title 24 compliant and ADA compliant, and it is UL and cUL Listed for damp locations at IP20. Useful if you are specifying cove or task lighting into a California or institutional project.
7) What color options does the WAC 480 inch tape light extension cable come in?
Two: black (T24-BS-EX2-480-BK) and white (T24-BS-EX2-480-WT). Pick to match the surface the cable crosses, since it can be surface mounted on a ceiling or wall in any orientation rather than hidden.
8) How much space does the cable take up where it enters a cove or channel?
It is a low profile lead, 0.57 inches in one dimension and 0.38 inches in the other, which lets it tuck into cove returns and behind trim without a dedicated chase. Total run length is 480 inches.
