WAC Lighting Park Bollard Light Concrete Pour Kit

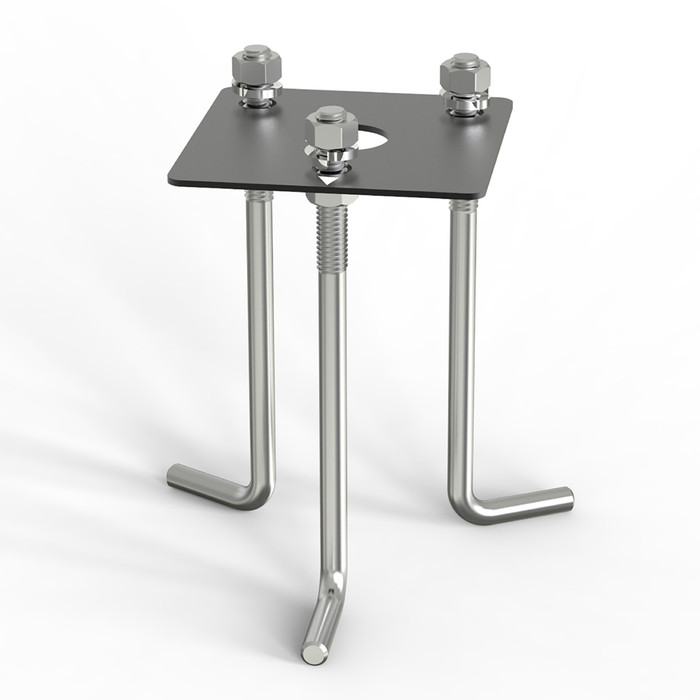

WAC Lighting 6" Park Bollard Light Concrete Pour Kit

(No reviews yet) Write a Review

Model: M6640-CON-KIT
From the Park Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.00
$31.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting 6" Park Bollard Light Concrete Pour Kit

Concrete pour kit designed to be installed on a concreate surface to provide maximum stability for the WAC Landscape Park Bollard. The Park LED Bollard Landscape Light offers illumination to cast out darkness and create a safer landscape space. Made from die-cast aluminum for lasting durability, the Park LED Bollard features a sleek build with long rectangular openings. A concealed acrylic white diffuser projects an internal downlight that radiates down and out through the rectangular space for a stunning light display.
  • Park is available in a bronze or black finish. K-Alloy aluminum construction offers enhanced protection against outdoor elements. Concrete Pour Kits for Bollard 6641, 6642, 6643.
  • Factory sealed water tight and IP66 rated for protection against high-pressure water jets and outdoor elements.
  • Available in 12V, 120V, or 277V options for a variety of applications. Includes Mounting Accessory (M6000-Stake for 12V or 120V/277V).
  • Smooth and continuous dimming to 10% with a Magnetic Low Voltage Dimmer (12V Only), Triac or ELV Dimmer (120V), ELV Dimmer (277V).
  • Park is a high Powered LED Bollard (Sold Separately).
  • Standards: UL & cUL and IP66 Rated for Wet Locations.

Manufacturer Resources:

Specification Sheet

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Collection:
Park
Product Type:
Bollard Accessory
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Outdoor Lighting
Product Subgroup:
Bollard Lights
Hardwired or Portable:
Hardwired
Base Material:
Aluminum
Location Rating:
Wet
Brand Family:
WAC Landscape
Energy Star:
No
Included Components:
Installation Hardware, Instructions
Wire Length:
36"
Subcategory:
Bollard Lighting
Certification:
UL, cUL, IP65
Location Indoor/ Outdoor:
Outdoor
Reversible Mounting:
No
Title 24 Compliant:
Yes
Segment:
Lighting
Product Length:
5"
Product Style:
Contemporary
Product Height:
6"
Product Category:
Landscape Lighting
Product Width:
5"

WAC Lighting M6640-CON-KIT – Frequently Asked Questions

1) Which WAC Park bollards does the M6640-CON-KIT concrete pour kit fit?
The M6640-CON-KIT is the concrete pour kit for the WAC Landscape Park bollards 6641, 6642 and 6643. It is not a universal base, so it should only be paired with those three Park models. The bollard itself is sold separately.
2) Do I still need the stake mount if I order the concrete pour kit for a Park bollard?
No. The Park bollard ships with the M6000-Stake mounting accessory for soft ground. The concrete pour kit is the alternative for setting the bollard into a concrete surface or a poured pad, so you use one or the other, not both.
3) What size is the WAC Park bollard concrete pour kit, and how much room do I need in the pad?
The pour kit measures 6 inches in height with a 5 by 5 inch footprint, so the form or blockout in your pad needs to accept a 5 inch square element set 6 inches deep. Plan the conduit stub-up inside that footprint before the pour.
4) How much lead wire comes with the WAC concrete pour kit for splicing?
There is 36 inches of wire, which gives an electrician enough slack to reach a splice point below or at grade. The Park bollard is a hardwired fixture, available in 12V, 120V or 277V, so the splice method follows whichever supply voltage you specified on the bollard.
5) Will a concrete-mounted landscape bollard base hold up in a wet, freeze-thaw climate?
The pour kit is built from aluminum and rated for outdoor wet locations, which is the rating that covers direct rain and irrigation spray at grade. The Park bollard itself is factory sealed water tight and IP66 rated against high-pressure water jets, so the assembly suits walkways that get pressure washed or hit by sprinklers.
6) Does the WAC Park bollard concrete pour kit include the anchor hardware, or do I have to source it?
Installation hardware and instructions come in the box, so there is no separate anchor bolt purchase for the kit itself. What is not included is the bollard, which is ordered separately in bronze or black.
7) Can this bollard base be flipped or adapted for a surface-mount plate instead of a pour-in install?
No. The kit is not reversible and is made for setting into concrete only. If the bollard is going into soil or planting beds rather than a hard surface, use the M6000-Stake that ships with the Park bollard instead.
8) Does a WAC Park bollard install meet ADA path-of-travel and California Title 24 requirements?
Both are covered on the WAC Landscape Park bollard mounting kit: it is listed ADA compliant and Title 24 compliant, which matters on public walkways and California commercial sites. The system also carries UL and cUL listing.
9) Is the WAC Park bollard Energy Star rated?
No, the Park LED bollard system is not Energy Star listed. It is a high-powered LED bollard that dims smoothly to 10 percent, using a magnetic low voltage dimmer on 12V, a Triac or ELV dimmer on 120V, or an ELV dimmer on 277V.
