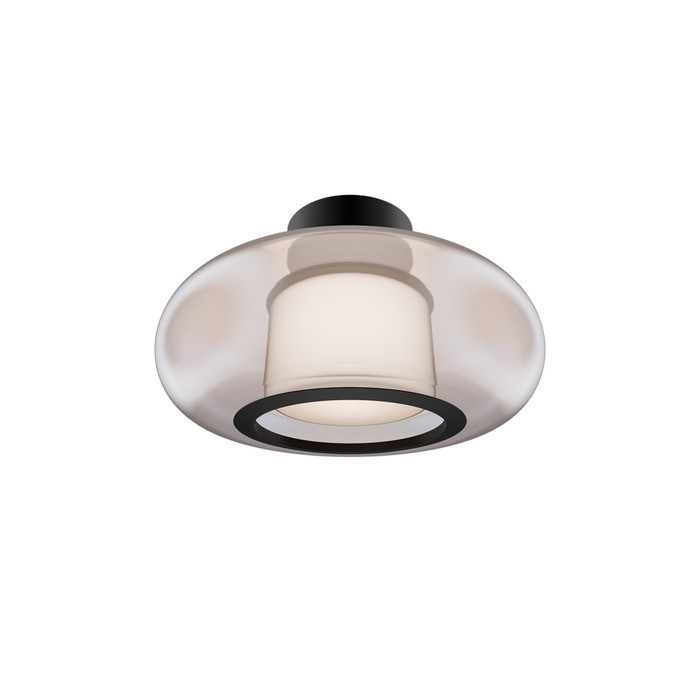

WAC Lighting 485 Doma 4-CCT LED Semi-Flush Mount
The WAC Lighting Doma 4-CCT LED Semi-Flush Mount pairs a thick etched glass cylinder with an opaline glass orb, creating a luminous interplay of light and shadow for modern and transitional interiors. Built with an Aluminum housing and opaline outer glass over an opal inner glass shade, this fixture runs on 120V AC LED technology with built-in selectable color temperature from 2700K to 4000K. Rated ETL and cETL for damp locations and CEC Title 24 compliant, it delivers CRI 90 light output for accurate, comfortable illumination.
Key Features
- Selectable Color Temperature: Built-in 4-CCT adjustability lets you switch between 2700K, 3000K, 3500K, and 4000K, with the option to pre-select or adjust color temperature in the field.
- Durable Construction: Aluminum housing with opaline outer glass and opal inner glass shades for a soft, luminous glow.
- 120V AC LED Technology: No driver or transformer required, and the fixture easily fits a standard pancake junction box for simple installation.
- ELV Dimming Compatible: Delivers smooth, continuous dimming when paired with an electronic low voltage (ELV) dimmer.
- High-CRI LED Module: Replaceable LED module rated CRI 90 with a 50,000-hour rated life for long-term, high-quality light output.
- Total Wattage: 15W for efficient, low-energy operation.
- Damp Location Rated: ETL and cETL listed for damp locations, suitable for bathrooms and other moisture-prone ceiling installations.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Rated for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - ACLED
- Bulbs Included: Yes
- Collection: Doma
- Dimmable: ELV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Ceiling Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Opaline outer glass and Opal Inner Glass
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Semi-Flush Mount
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: China
- Total Wattage: 15
- Style: Modern, Transitional
- Mounting: Ceiling
Typical Applications
- Bedrooms, Hallways, and Entryways
- Bathrooms and Other Damp-Location Ceilings
- Low-Ceiling Rooms Needing a Flush Profile
- Modern and Transitional Interior Design
- New Construction and Renovation Ceiling Lighting
Why WAC Lighting?
WAC Lighting builds the Doma Semi-Flush Mount with durable Aluminum construction, layered opaline and opal glass shades, and a replaceable CRI 90 LED module rated for 50,000 hours. Backed by a 5-year functional and 2-year finish warranty and ETL/cETL damp-location listings, it delivers dependable, code-compliant performance for residential and light-commercial ceiling lighting projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - ACLED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Doma
- Dimmable:
- ELV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Ceiling Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Opaline outer glass and Opal Inner Glass
- Subcategory:
- Semi-Flush Mount
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 15
- Product Style:
- Modern, Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting FM-48513-27-BK – Frequently Asked Questions
1) Can the WAC Doma FM 485 semi-flush mount go on a bathroom ceiling?
Yes. The Doma FM 485 is ETL and cETL listed for damp locations, which covers a bathroom ceiling, a covered porch soffit, or a laundry room. It is not wet location rated, so keep it out of direct spray or unprotected exterior exposure.
2) What junction box does the Doma 485 LED flush mount need?
It is a hardwired 120V ceiling fixture that mounts to a standard pancake junction box. No driver or transformer is needed because the LED module runs directly on 120V AC, so there is nothing to find space for above the canopy. Mounting is ceiling only.
3) Do I have to pick a color temperature when I order the WAC Doma 485, or can it be set on site?
It is a 4-CCT fixture with 2700K, 3000K, 3500K and 4000K built in. You can pre-select the temperature when ordering or switch it in the field, which is useful if you are standardizing a building and want one part number on the shelf for both warm residential rooms and cooler corridors.
4) What dimmer works with the WAC Doma 485 LED flush mount?
Use an electronic low voltage (ELV) dimmer. The fixture is ELV dimmable and will dim smoothly on one. A standard incandescent or forward-phase TRIAC dimmer is not the right control for it, so if the room already has one, plan on swapping the device.
5) How much light does the 15W Doma semi-flush put out at each color setting?
Output is 1046 lumens at 2700K and 1075 lumens at 3000K, 3500K and 4000K, from 15W total. Beam spread is flood, so it washes a room rather than spotting, and the LED module is CRI 90 for accurate color on finishes and skin tones.
6) If the LED burns out on this WAC Doma fixture, does the whole thing get replaced?
No. The Doma 485 uses a replaceable LED module (ACLED base) rated at 50,000 hours, so the light source can be swapped without pulling the fixture off the ceiling. The module ships with the fixture.
7) Does the WAC Doma 485 meet California Title 24 for a residential ceiling?
Yes, it is CEC Title 24 compliant. It is not Energy Star rated, so if a program you are bidding requires Energy Star specifically, this one will not satisfy that line item.
8) Is this WAC flush mount ADA compliant for a corridor wall?
No, the Doma 485 is not ADA compliant, and it is a ceiling-mount fixture only. For a corridor or stairwell where protrusion limits apply, specify an ADA-rated wall sconce instead.
9) What is the Doma 485 actually made of, and will it look like glass or metal on the ceiling?
Aluminum housing with an opaline outer glass over an opal inner glass shade, so what shows from below is layered glass with a metal canopy. The look is modern and transitional, and the double glass diffuses the LED instead of showing diodes.
10) Where can I get the install instructions for the WAC Doma FM 485 before I rough in?
WAC publishes an installation guide for the fixture, hosted at https://zensupply.com/content/pdf/wac-lighting/installation-guide-5c96cd.pdf. Worth pulling before you set the box, since the fixture lands on a standard pancake junction box and runs line voltage with no remote driver.
