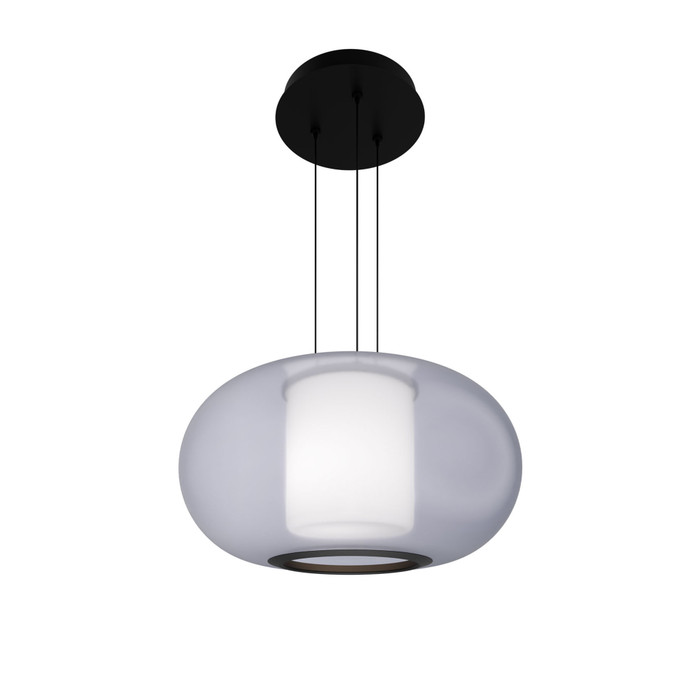

WAC Lighting PD-485 Doma 4-CCT LED Pendant
The WAC Lighting PD-485 Doma 4-CCT LED Pendant pairs a thick etched glass cylinder inside an opaline glass orb, creating a luminous space where light and shadow play across the fixture. Aluminum hardware supports an opaline outer glass and opal inner glass for a modern, transitional silhouette. The high-powered replaceable LED module offers built-in color temperature adjustability across 2700K/3000K/3500K/4000K, and the fixture is ETL & cETL listed for damp locations with CEC Title 24 compliance, making it suited for both residential and light commercial interiors.
Key Features
- Durable Construction: Aluminum hardware with an opaline outer glass and opal inner glass for a refined layered glow.
- Selectable Color Temperature: Built-in 4-CCT adjustability lets you switch between 2700K/3000K/3500K/4000K, with the option to pre-select or adjust the color temperature in the field.
- Ultra-Sleek Electrified Cable: Eliminates the need for clunky power wires; height is simple to adjust through push pin connectors on the canopy, and the fixture is sloped ceiling compatible.
- Universal Input Voltage Driver: Concealed in the canopy, the 120V-240V-277V universal driver supports flexible installation across voltage systems.
- Smooth Continuous Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for seamless light-level control.
- High-Powered Replaceable LED Module: Delivers CRI 90, a 50,000-hour rated lifespan, and selectable CCT color temperature from 2700-3000-3500-4000K.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Doma
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Style: Modern;Transitional
Typical Applications
- Residential and Light Commercial Interiors
- Kitchen Islands and Dining Areas
- Entryways, Hallways, and Stairwells
- Damp-Location Installations
- Modern and Transitional Décor Settings
Why WAC Lighting?
WAC Lighting builds the Doma pendant with aluminum hardware and a layered opaline and opal glass design, backed by a high-powered replaceable LED module rated for 50,000 hours at CRI 90. ETL and cETL listing for damp locations, CEC Title 24 compliance, and a 5-year functional / 2-year finish warranty support reliable, code-compliant performance for professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Doma
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Opaline outer glass and Opal Inner Glass
- Subcategory:
- Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-48516-27-BK – Frequently Asked Questions
1) Will the WAC Lighting Doma PD-485 pendant run on a 277V circuit in a commercial space?
Yes. The Doma PD-485 uses a universal input driver rated 120-240-277V, concealed in the canopy, so the same fixture works on residential 120V and on 277V commercial lighting branch circuits. It is a hardwired fixture, not plug-in, so it needs to land in a ceiling outlet box.
2) Do I have to pick the color temperature when I order the Doma pendant, or can it be set on site?
Both. The Doma pendant is ordered by color temperature (2700K, 3000K, 3500K or 4000K), but the LED module has built-in 4-CCT adjustability, so the setting can be pre-selected or changed in the field. Practically, that means a mixed order of fixtures can still be matched on site to one consistent temperature.
3) Can the Doma PD-485 pendant go over a kitchen island on a sloped or vaulted ceiling?
Yes. The Doma is a ceiling-mounted pendant on an electrified cable and is sloped ceiling compatible; hanging height is set with push pin connectors at the canopy, so you trim the drop at install rather than ordering a fixed stem length.
4) Is the Doma pendant safe to hang in a bathroom or covered porch?
The Doma PD-485 is ETL and cETL listed as suitable for damp locations, so an enclosed bath, a shower-adjacent ceiling outside the spray zone, or a covered exterior soffit is within its rating. It is damp rated, not wet rated, so avoid locations exposed to direct rain or hose spray.
5) What dimmer works with the Doma LED pendant?
Use an electronic low voltage (ELV) or TRIAC dimmer. The Doma's integral LED driver dims smoothly on those two control types; a standard incandescent/magnetic low voltage dimmer is the wrong match and is a common cause of flicker or drop-out on this kind of driver.
6) If the LED burns out on the Doma pendant, does the whole fixture get replaced?
No. The Doma uses a high-powered replaceable LED module rather than a sealed array, so the light source can be swapped without pulling the fixture. The module is rated 50,000 hours and ships installed, so no lamp needs to be bought separately.
7) What sizes does the Doma PD-485 pendant come in, and can I mix them in a row?
Two diameters are offered, 16 and 20. Both are the same opaline outer glass orb with an etched inner cylinder and both carry the identical 4-CCT module, so a 16 and a 20 hung together over a long island will match in color and appearance at any of the four temperatures.
8) Does the Doma pendant meet California Title 24 for a residential lighting permit?
Yes, the Doma PD-485 is CEC Title 24 compliant. It is not Energy Star certified, so if a rebate program specifically requires Energy Star rather than Title 24 listing, this fixture will not satisfy it.
9) Can the Doma PD-485 be used as ADA-compliant lighting in a corridor?
No. The Doma is not ADA compliant, and as a suspended pendant it is not intended for mounting where protrusion limits apply. For hallways and stairwells it works where the drop keeps the fixture clear of circulation paths; in tight ADA-governed corridors specify a flush or wall-mount fixture instead.
10) Is the Doma pendant good enough color quality for a retail or hospitality space?
CRI 90 with a flood distribution, which is the range specified for retail merchandise, dining, and hospitality where skin tones and finishes need to read accurately. Set it to 2700K or 3000K for warm residential and hospitality work, 3500K or 4000K for crisper commercial interiors.
11) What is the Doma pendant actually made of?
Aluminum hardware carries the glass: an opaline outer orb with an opal inner glass and a thick etched glass cylinder inside it. The aluminum body is what makes the damp rating practical over a tub or covered entry compared with a steel-bodied fixture.
