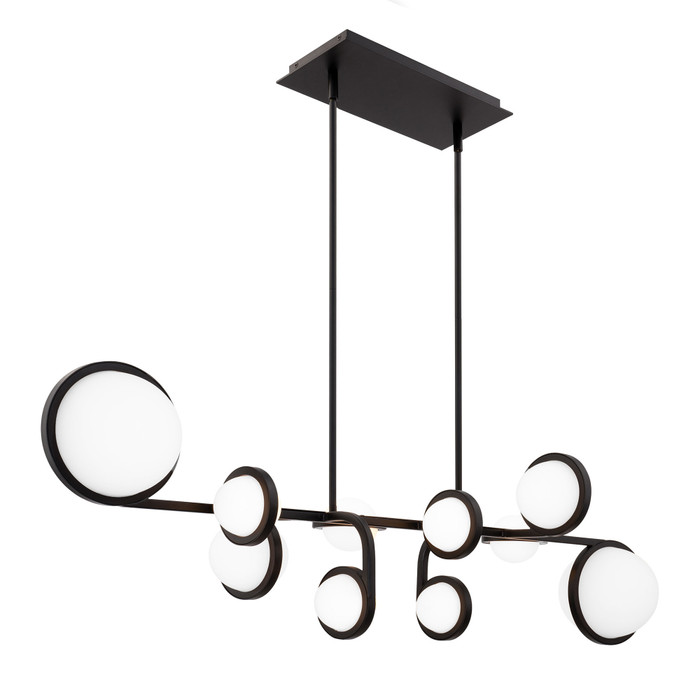

WAC Lighting PD-835 Satalite 4-CCT LED Linear Pendant
The WAC Lighting Satalite 4-CCT LED Linear Pendant brings an otherworldly glow to modern interiors with etched opal glass globes orbiting a central axis, wrapped in bands of aluminum for a celestial, sculptural statement. Built-in color temperature adjustability lets you select 2700K, 3000K, 3500K, or 4000K, while a Universal Input Voltage Driver (120V-240V-277V) and compatibility with 0-10V, ELV, or TRIAC dimmers deliver smooth, continuous dimming. The fixture is ETL and cETL listed for damp locations and CEC Title 24 compliant, making it suitable for both refined residential and demanding commercial installations.
Key Features
- Aluminum Construction: Durable aluminum body with three sizes of etched opal glass diffusers for a layered, glowing silhouette.
- Selectable CCT: Built-in color temperature adjustability across 2700K/3000K/3500K/4000K, with the option to pre-select or adjust color temperature in the field.
- Included Down Rods: Six 12in down rods and two 6in down rods included for flexible mounting height; additional down rods sold separately.
- Smooth Dimming: Compatible with electronic low voltage 0-10V, ELV, or TRIAC dimmers, plus a Universal Input Voltage Driver (120V-240V-277V).
- High-Performance LED Module: Replaceable LED module rated CRI 90 with 54000 rated hours and selectable CCT color temperature of 2700-3000-3500-4000K.
- Total Wattage: 41W with 4678 lumens of flood beam-spread output for even, ambient illumination.
Certifications & Compliance
- ETL Listed for Damp Locations
- cETL Listed
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 4678
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Linear Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 41
- Style: Modern
- Mounting: Ceiling
Typical Applications
- Residential Dining and Living Spaces
- Commercial Lobbies and Hospitality Interiors
- Modern Ceiling-Mounted Pendant Installations
- Damp-Location Spaces such as Covered Patios and Foyers
- Renovation and New Construction Lighting Upgrades
Why WAC Lighting?
WAC Lighting builds the Satalite pendant around a durable aluminum body, a replaceable high-performance LED module rated CRI 90 with 54000 rated hours, and field-selectable color temperature for long-term flexibility. Backed by a 5-year functional and 2-year finish warranty and ETL/cETL listing for damp locations, it delivers reliable, code-compliant performance for professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Satalite
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 4678
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Opal Glass Diffuser
- Subcategory:
- Linear Pendant
- Avg Rated Hours:
- 54000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 41
- Product Style:
- Modern
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-83542-27-BK – Frequently Asked Questions
1) Can the WAC Satalite PD-835 pendant be installed over a covered patio or in a bathroom?
The Satalite linear pendant is ETL and cETL listed for damp locations, so a covered porch, a sheltered entry, or a bath area that sees humidity but no direct water is fine. It is not rated for wet locations, so skip anywhere exposed to rain or direct spray.
2) Do I have to pick the color temperature when I order the WAC PD-835 Satalite pendant?
You order it at 2700K, 3000K, 3500K, or 4000K, but the CCT is field selectable on the fixture itself, so the ordered setting is a starting point rather than a lock-in. That matters if you are buying several for one space and want them matched later on site.
3) What dimmer works with the WAC Satalite LED pendant?
It accepts 0-10V, ELV, or TRIAC dimming, so most commercial 0-10V controls and standard residential ELV/TRIAC wall dimmers will drive it. Match the dimmer type to the control system already in the space; an incandescent-only leading-edge dimmer that is not TRIAC rated for LED loads is the one to avoid.
4) Will this pendant run on 277V commercial power?
Yes. The Satalite uses a universal input voltage driver covering 120V, 240V, and 277V, so the same fixture goes into a 277V office or lobby circuit or a 120V residential one without a separate part number.
5) Are down rods included with the PD-835, or do I order them separately?
Six 12 inch down rods and two 6 inch down rods ship with the fixture, which covers most standard ceiling heights. For taller ceilings, additional down rods are a separate purchase.
6) How much light does the Satalite pendant put out, and is one enough for a dining room?
41 watts total producing 4,678 lumens with a flood beam spread, so it throws broad ambient light rather than a tight downlight pattern. For a typical dining table or a small lobby seating group a single fixture is the intended application; large open commercial floors will want it repeated on a layout.
7) Does the LED in the WAC Satalite pendant have to be replaced as a whole fixture when it fails?
No. The LED module is replaceable, rated at 54,000 hours, so the fixture is serviceable rather than disposable. That is the detail property and facility maintenance teams should note before specifying an integrated-LED pendant.
8) Is the Satalite pendant good enough color quality for retail or hospitality display areas?
CRI 90 with selectable 2700K through 4000K, which is the range most hospitality and retail specs call for. At 2700K it reads warm for lounges and dining; at 3500K or 4000K it suits lobbies and workspaces where you want the whites to look clean.
9) Does the WAC PD-835 pendant meet California Title 24?
CEC Title 24 compliant, per WAC. Combined with the ETL and cETL listing, it clears the usual California residential and commercial lighting plan-check hurdles. It is not Energy Star rated and it is not ADA compliant, which matters only if a project spec calls those out specifically.
10) What is the Satalite pendant made of, and does it need a junction box?
Aluminum body with etched opal glass diffusers in three sizes. It is a hardwired ceiling-mount fixture, so it needs a supported ceiling junction box and a line voltage feed; there is no plug or cord option.
