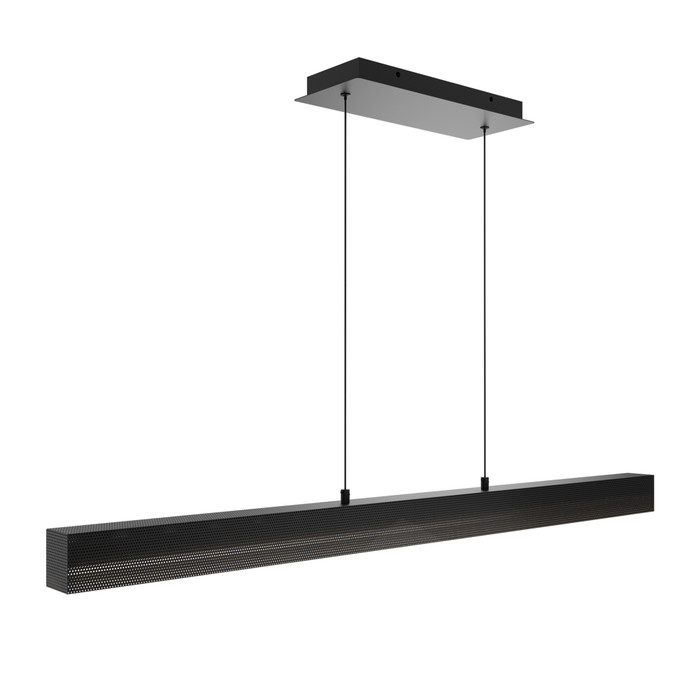

WAC Lighting PD-575 Grille 4-CCT LED Linear Pendant, Aluminum
The WAC Lighting PD-575 Grille 4-CCT LED Linear Pendant pairs an Aluminum body with a frosted glass diffuser wrapped in a perforated metal shade, casting a soft downward glow accented by tiny pinpoints of light. The integrated LED module delivers 2132 Lumens at 54W with a 90 CRI and field-selectable 2700K/3000K/3500K/4000K color temperature, and the fixture is ETL & cETL Listed for Damp Locations and CEC Title 24 Compliant, making it a versatile choice for residential and light-commercial interiors.
Key Features
- Perforated Metal Shade: Combined with a frosted glass diffuser to produce pinpoint highlights and a smooth, even downward glow.
- Durable Construction: Aluminum housing for a lightweight yet sturdy contemporary fixture.
- 4-CCT Color Temperature: Built-in adjustability across 2700K/3000K/3500K/4000K, with the option to pre-select a fixed CCT or adjust it in the field.
- Ultra-Sleek Electrified Cable: Eliminates bulky power wires; height adjusts easily via push-pin connectors on the canopy, and the design is sloped-ceiling compatible.
- Universal Input Voltage Driver: 120V-240V-277V driver is concealed within the canopy for a clean installation.
- Dimming Compatibility: Smooth, continuous dimming with electronic low voltage (ELV), 0-10V, or TRIAC dimmers.
- High-Powered Replaceable LED Module: 90 CRI, 50,000 rated hours, and selectable CCT from 2700-3000-3500-4000K for long-term serviceability.
- Light Output: 54W Total Wattage delivering 2132 Lumens for balanced, energy-efficient illumination.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Grille
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 2132
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Linear Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 54
- Style: Contemporary;Transitional
Typical Applications
- Kitchen Islands and Dining Areas
- Residential and Commercial Interiors
- Reception and Hospitality Spaces
- Damp-Location Installations
- Contemporary and Transitional Lighting Design
Why WAC Lighting?
WAC Lighting builds the PD-575 Grille pendant around a replaceable, high-powered LED module rated for 50,000 hours and 90 CRI, backed by ETL & cETL Damp Location listing and CEC Title 24 compliance. With field-selectable 4-CCT color temperature, a universal 120V-240V-277V driver, and broad dimmer compatibility, it delivers dependable, code-compliant performance for professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Grille
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 2132
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Glass Diffuser
- Subcategory:
- Linear Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 54
- Product Style:
- Contemporary;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-57548-27-BK – Frequently Asked Questions
1) Can the WAC Lighting PD-575 Grille pendant run on 277V commercial power?
Yes. The PD-575 Grille linear pendant uses a universal input driver rated 120V, 240V, or 277V, and the driver sits inside the canopy, so the same fixture works on a residential 120V circuit or a 277V lighting branch in a commercial building. No separate transformer or voltage-specific version to order.
2) Do I have to pick a color temperature when I order the Grille pendant, or can it be changed after install?
Both. The PD-575 is a 4-CCT fixture with 2700K, 3000K, 3500K, and 4000K on board, and it can be ordered pre-selected at any one of those four or switched in the field. Practically, that means you can standardize a lobby at 3000K and re-set the same fixtures to 3500K later without swapping hardware.
3) Will the PD-575 pendant work with the dimmers already in my building?
It dims on electronic low voltage (ELV), 0-10V, or TRIAC controls, with continuous dimming. That covers most residential wall dimmers and typical commercial 0-10V control systems. What it will not run on is a magnetic low voltage or a plain incandescent-only dimmer not listed as TRIAC compatible.
4) Is this LED pendant safe over a kitchen sink or in a covered outdoor area?
The Grille pendant is ETL and cETL Listed for Damp Locations, so it is fine over a sink, in a bathroom, or under a covered porch or breezeway where it sees humidity but not direct water. It is not wet-location rated, so do not hang it where rain or spray can hit it.
5) Can the Grille linear pendant be hung on a sloped ceiling?
Yes. The PD-575 hangs from a ceiling canopy on an electrified cable and the design is sloped-ceiling compatible. Height is set with push-pin connectors at the canopy, so you adjust the drop during install rather than ordering a fixed stem length.
6) Is 2132 lumens enough light over an 8-foot dining table or kitchen island?
The PD-575 puts out 2132 lumens at 54W with a flood distribution, which reads as ambient and task light over an island or table rather than a tight accent beam. The frosted glass diffuser behind the perforated shade spreads the light downward evenly, so for a long island many designers run two pendants to keep the levels even end to end.
7) When the LEDs eventually fail, do I have to replace the whole PD-575 pendant?
No. The light source is a replaceable high-powered LED module rated for 50,000 hours, so the fixture is serviceable rather than disposable. That matters on a hospitality or multi-family spec where you are hanging dozens and want a parts path years out.
8) Does the PD-575 need a separate bulb order, and does it hardwire?
Nothing extra to buy for light output. The integrated LED module ships with the fixture and the driver is built into the canopy. It is a hardwired fixture, so it needs a junction box and a licensed electrical connection, not a plug.
9) Does the Grille pendant meet California Title 24 and is it ADA compliant?
It is CEC Title 24 compliant, which is what matters for a California residential or light-commercial permit. It is not ADA compliant, but that rating applies to wall-mounted projection limits, not to a ceiling-hung pendant, so it rarely affects a pendant application. It is also not Energy Star certified.
10) Is 90 CRI good enough for a restaurant or retail space where color accuracy matters?
At 90 CRI the Grille pendant renders skin tones, food, and merchandise colors accurately, which is the level most hospitality and retail specs call for. Paired with the 3000K or 3500K setting it is a common choice for dining rooms and reception areas.
11) What is the PD-575 shade actually made of, and will it show fingerprints?
The housing is aluminum, which keeps the fixture light for cable suspension, and the shade is perforated metal over a frosted glass diffuser. The perforations throw pinpoints of light alongside the main downward wash, so the look is contemporary to transitional rather than traditional.
