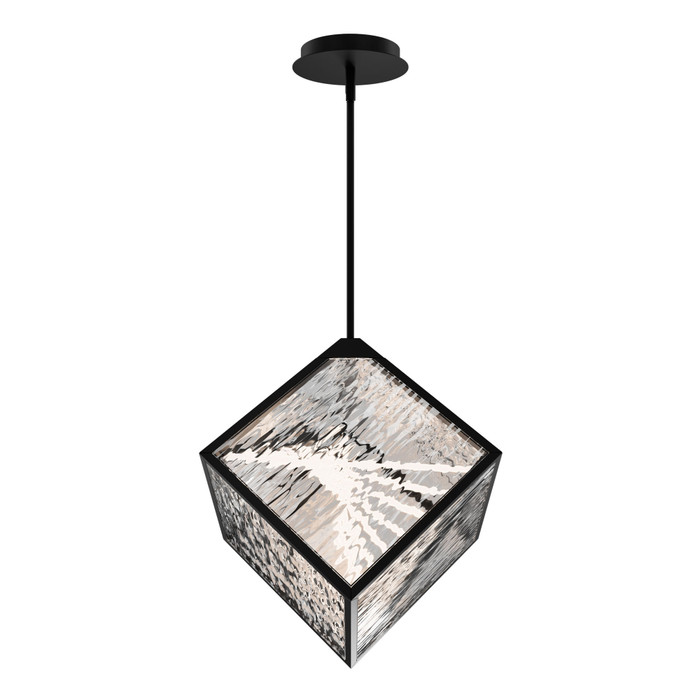

WAC Lighting 43517-BK Dyce LED Pendant
The WAC Lighting 43517-BK Dyce LED Pendant pairs a distinctive Aluminum cube frame with a Ripple Glass diffuser for a playful, sculptural look above any workspace. This High Roller silhouette features a High-Powered Replaceable LED engine rated at 11W, delivering 322 Lumens at 3000K with CRI: 90 for warm, accurate color rendering. Built with a Universal Input Voltage Driver (120V-240V-277V) and ETL & cETL Listed for Damp Locations, this pendant is engineered for reliable, code-compliant performance in kitchens, bars, and multi-fixture installations.
Key Features
- Durable Construction: Aluminum body construction paired with a Ripple Glass diffuser held within a distinctive metal cube for a playful, high-end aesthetic.
- Universal Voltage Driver: Accepts 120V-240V-277V input, giving installers flexibility across a wide range of electrical systems.
- Smooth Dimming: Compatible with Electronic Low Voltage (ELV) and TRIAC dimmer options for smooth, continuous light control.
- High-Powered LED Engine: Replaceable LED delivers 322 Lumens at 3000K Color Temp with CRI: 90 and a Rated Hours life of 50000 hours.
- Flexible Mounting: Includes three 12in and one 6in extension rods (additional rods available separately); Sloped ceiling compatible for angled installations.
- Damp Location Rated: ETL & cETL Listed for Damp Locations and CEC Title 24 Compliant for California energy code projects.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Rated for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 322
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Rippler Glass
- Warranty: 5 Years Functional, 2 Years Finish
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 11
- Style: Contemporary;Transitional
Typical Applications
- Kitchen Island and Bar Pendant Lighting
- Multi-Pendant Cluster Installations
- Residential and Commercial Interiors
- Sloped Ceiling Installations
- Damp Location Spaces such as Covered Patios
Why WAC Lighting?
WAC Lighting builds the Dyce pendant with durable Aluminum construction, a replaceable high-powered LED engine, and a Universal Input Voltage Driver to support reliable performance across diverse electrical systems. With ETL & cETL Damp Location listings and CEC Title 24 compliance, the 43517-BK delivers code-compliant, long-lasting illumination for demanding residential and commercial projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Dyce
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 322
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Rippler Glass
- Subcategory:
- Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 11
- Light Temperature:
- 3000
- Product Style:
- Contemporary;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-43517-BK – Frequently Asked Questions
1) Can the WAC Dyce 43517-BK pendant run on a 277V commercial circuit?
Yes. The Dyce 43517-BK pendant uses a universal input voltage driver that accepts 120V, 240V or 277V, so the same fixture works on residential 120V and on 277V commercial lighting branch circuits. It is a hardwired fixture, so it needs a junction box and a ceiling connection, not a cord and plug.
2) Which dimmer works with the WAC 43517-BK pendant?
The Dyce pendant dims on ELV (electronic low voltage) and TRIAC dimmers. A standard incandescent/magnetic-only dimmer or a 0-10V control is not the right match. If you are running several of these on one circuit, add up the 11W per fixture against the dimmer's LED load rating.
3) Is the Dyce pendant rated for a covered patio or over a bathtub?
Damp location is the rating on the Dyce 43517-BK, ETL and cETL Listed. That covers a covered porch, a protected patio soffit, or a bath area that sees humidity but no direct water. It is not a wet location fixture, so do not use it anywhere exposed to rain or direct spray.
4) How much light does a single 11W Dyce pendant actually put out, and how many do I need over an island?
Each Dyce pendant delivers 322 lumens at 11W with a flood beam spread, which is accent-level output rather than primary room lighting. Over a typical kitchen island or bar you would run a row of three or more, which is how the Dyce is normally specified; plan on other ambient or recessed lighting to carry general illumination.
5) Will the light color match the other 3000K fixtures in my space?
The Dyce pendant is fixed at 3000K with CRI 90, so it sits alongside other warm-white 3000K fixtures without a visible color shift. It is not a color-selectable or tunable fixture, so if the rest of the room is 2700K or 4000K it will read noticeably different.
6) Can the LED be replaced in the WAC Dyce pendant, or is the whole fixture disposable when it fails?
The LED engine is a replaceable high-powered module driven by the universal driver, not a sealed throwaway array, and the module ships installed. Rated life is 50,000 hours. For an MRO or facilities buyer that matters: a lamp-out does not mean pulling and rewiring the fixture.
7) Does the WAC 43517-BK meet California Title 24 and is it Energy Star or ADA listed?
CEC Title 24 compliant, yes, so it can be specified on California energy code projects. It is not Energy Star certified and it is not ADA compliant, which matters if your drawing calls for ADA-compliant fixtures in a corridor or similar protrusion-limited location. As a hanging pendant it would not typically be used there anyway.
8) What is the Dyce 43517-BK made of and what finish does it come in?
Aluminum body in a cube frame holding a ripple glass diffuser, offered in black. Aluminum keeps the weight down on a rod-suspended pendant and holds up in the damp locations it is rated for. The styling reads contemporary to transitional, so it works in both commercial build-outs and residential kitchens.
9) Is there an installation guide for the WAC Dyce pendant?
Yes, WAC publishes an installation guide for the Dyce pendant covering the hardwired ceiling connection and rod assembly. It is the document to hand your electrician before roughing in the box location, especially on a sloped ceiling where the canopy orientation matters.
