WAC Lighting LED 7011 Oculux T...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$83.95

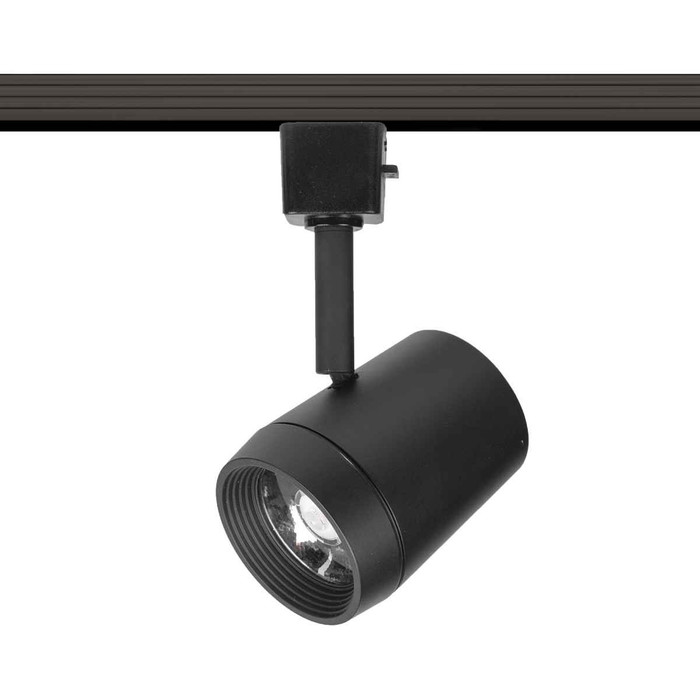

WAC Lighting LED 7011 Oculux Track Head J Track Fixture

WAC Lighting LED 7011 Oculux Track Head J Track Fixture

(No reviews yet) Write a Review

Model: WAC-JLED7011
From the Oculux Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$83.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms FR-W1803-44 Axis 3-Blade Ceiling Fan

A simple, sophisticated smart fan that works seamlessly in transitional, minimalist and other modern environments, Axis is perfectly sized for medium-sized kitchens, bedrooms and living rooms, and its wet-rated status and weather-resistant finish make it prime for outdoor use as well. Unleash the full potential of Axis with our Modern Forms app, which offers smart features like Adaptive Learning and Away Mode, and helps cut down on energy use by integrating with your smart thermostat.
  • Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
  • Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs. New: Bluetooth compatible for improved range and an unlimited amount of fans can be controlled with remote or wall control within range.
  • Battery operated Bluetooth remote control with wall cradle included (Part No. F-RCBT-WT). Optional Bluetooth hardwired wall control sold separately (Part No. F-WCBT-WT) and can be set-up as 3 or 4 way switches when you purchase more than one. Can be controlled through an Android or iOS wall mounted tablet with Wi-fi.
  • Modern Forms Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
  • Replaceable LED luminaire powered by WAC Lighting, features smooth and continuous brightness control. Available in 2700K, 3000K, and 3500K options, order accordingly. An optional cover is included to conceal luminaire.
  • ETL, cETL, UL, cUL, CSA CAN Wet Location Listed for indoor or outdoor applications. Can be installed on slope ceilings up to a 30 degree slope (XF-SCK Slope Ceiling Kit available for slopes 32-45 Degrees). Downrods sold separately for longer lengths.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
50000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
90
Collection:
Oculux
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
890
Number of Bulbs:
1
Product Type:
J Track Fixture
Safety Rating:
ETL, cETL
Shade/Glass Description:
Acrylic Diffuser
Subcategory:
LED Low Voltage
Total Wattage:
11
Base Material:
Die Cast Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
6"
Reversible Mounting:
Yes
Shade Material:
Acrylic
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
SORTME:
1348
Product Voltage:
120
Product Length:
3.5"
Beam Spread Angle:
50, 30, or 17
Light Temperature:
3000
Product Diameter:
2.38"
Product Style:
Modern
Product Height:
6.38"
Product Category:
Track Lighting
Product Width:
2.38"
Product Wattage:
11
Department:
Electrical

WAC Lighting WAC-JLED7011 – Frequently Asked Questions

1) Will the WAC Oculux J-7011 track head fit my existing track, or do I need a specific track type?
The Oculux LED 7011 is built as a J track fixture, so it mounts to J-type (three-wire, 120V) track. It runs on 120 volts line voltage off the track itself, and it is not a complete system, so the track section, connectors, and feed are ordered separately. If your ceiling runs H or L type track, this head will not seat in it.
2) How much light does an 11W Oculux track head actually put out, and will it be enough for retail display?
Each head draws 11 watts and delivers 890 lumens at 3000K with a 90 CRI. That is a typical accent-level output, so for retail merchandise, artwork, or millwork highlights it works well, especially with the narrow beam options. For general ambient coverage of a room you would space multiple heads along the track rather than rely on one.
3) What beam angle should I pick for an Oculux 7011 track head?
Three beam spreads are offered: 17, 30, and 50 degrees. The 17 degree spot is for tight accenting, artwork, or a single object on a pedestal. The 30 degree is the general-purpose choice for merchandise and casework. The 50 degree flood covers wider wall washes and broader display areas with fewer heads. Specify the beam when you order; it is not field-adjustable.
4) Can I use the WAC Oculux 7011 track head outdoors or on a covered patio?
No. The Oculux 7011 is rated for dry locations and interior use only. Keep it to conditioned indoor spaces; a covered exterior soffit or patio needs a damp or wet rated fixture instead.
5) Does the Oculux 7011 meet California Title 24 and Energy Star for a commercial tenant improvement?
Yes on both. The 7011 is Title 24 compliant and Energy Star qualified, and it is ETL and cETL listed for US and Canadian installations. It is not ADA compliant, so it should not be used where a protruding-object limit applies, such as a corridor wall-mounted application.
6) Is the Oculux 7011 track head dimmable, and does it need a special driver?
The head is dimmable and carries its own integrated LED module and driver, so no separate transformer or remote driver is required. Pair it with an LED-rated dimmer on the track circuit.
7) Do I have to buy lamps separately for the WAC 7011 Oculux head?
No lamp to buy. The LED module ships in the fixture as an integrated, non-replaceable light source rated for 50,000 average hours, so there is no relamping cycle to budget for in an MRO plan. When the module eventually fails, the head is replaced.
8) How far does the WAC Oculux 7011 track head hang down from the ceiling?
Overall height is 6.38 inches with a maximum height of 6 inches in its mounted position, and the head body measures 2.38 inches in diameter and width with a 3.5 inch length. In a space with low ceilings or where sightlines matter, that drop is worth checking against your reflected ceiling plan before you commit to a head count.
9) What finishes does the WAC Oculux J-7011 come in, and what are the part numbers?
Two finishes, both at 11 watts: black as J-7011-930-BK and white as J-7011-930-WT. For a property manager matching heads already installed in a building, those two part numbers are what to quote against existing fixtures.
10) Is 3000K the right color temperature for mixing with existing downlights?
The 7011 Oculux head is 3000K with a 90 CRI. That is warm white, the common choice in hospitality, residential, and retail apparel, and it will blend with 3000K recessed cans. If your building is standardized on 2700K or 3500K, these heads will read noticeably different on the same ceiling.
11) How is the Oculux 7011 head built, and will it hold up in a commercial space?
The housing is die cast aluminum, which carries heat away from the LED module and takes handling on a tenant fit-out better than a stamped or plastic body. The optic is covered by an acrylic diffuser. Reversible mounting is supported, so the head can be oriented to the run of track as needed.
