WAC Lighting LED 7011 Oculux T...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$83.95

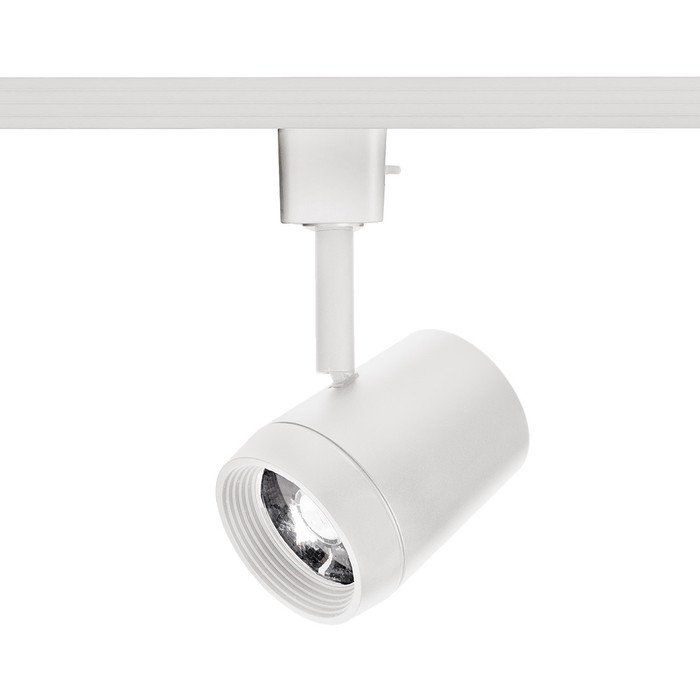

WAC Lighting LED 7011 Oculux Track Head L Track Fixture

WAC Lighting LED 7011 Oculux Track Head L Track Fixture

(No reviews yet) Write a Review

Model: WAC-LLED7011
From the Oculux Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$83.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms FH-W1803-52 Axis 3-Blade Flush Mount Ceiling Fan

A simple, sophisticated smart fan that works seamlessly in transitional, minimalist and other modern environments, Axis is perfectly sized for medium-sized kitchens, bedrooms and living rooms, and its wet-rated status and weather-resistant finish make it prime for outdoor use as well. Unleash the full potential of Axis with our Modern Forms app, which offers smart features like Adaptive Learning and Away Mode, and helps cut down on energy use by integrating with your smart thermostat.
  • Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
  • Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs. New: Bluetooth compatible for improved range and an unlimited amount of fans can be controlled with remote or wall control within range.
  • Battery operated Bluetooth remote control with wall cradle included (Part No. F-RCBT-WT). Optional Bluetooth hardwired wall control sold separately (Part No. F-WCBT-WT) and can be set-up as 3 or 4 way switches when you purchase more than one. Can be controlled through an Android or iOS wall mounted tablet with Wi-fi.
  • Modern Forms Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
  • Replaceable LED luminaire powered by WAC Lighting, features smooth and continuous brightness control. Available in 2700K, 3000K, and 3500K options, order accordingly. An optional cover is included to conceal luminaire.
  • ETL, cETL, UL, cUL, CSA CAN Wet Location Listed for indoor or outdoor applications. Flush mount ceiling fans are perfect for 7-10ft ceiling heights.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
50000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
90
Collection:
Oculux
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
890
Number of Bulbs:
1
Product Type:
L Track Fixture
Safety Rating:
ETL, cETL
Shade/Glass Description:
Acrylic Diffuser
Subcategory:
LED Low Voltage
Total Wattage:
11
Base Material:
Die Cast Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
6"
Reversible Mounting:
Yes
Shade Material:
Acrylic
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
SORTME:
1374
Product Voltage:
120
Product Length:
3.5"
Beam Spread Angle:
50, 30, or 17
Light Temperature:
3000
Product Diameter:
2.38"
Product Style:
Modern
Product Height:
6.38"
Product Category:
Track Lighting
Product Width:
2.38"
Product Wattage:
11
Department:
Electrical

WAC Lighting WAC-LLED7011 – Frequently Asked Questions

1) Will the WAC Lighting Oculux L-7011 track head fit my existing track, or do I need WAC L-track?
The Oculux 7011 head is built for WAC's L series track and will not drop onto H or J track without the correct track system. It is also not a complete system, so the track section, power feed, and end caps are separate items. Plan the run before you order heads.
2) How bright is the 11W Oculux track head, and will it cover retail display lighting?
Each head draws 11 watts at 120 volts and puts out 890 lumens with a 90 CRI at 3000K. That is a warm, color-accurate output suited to merchandise, artwork, and millwork accenting rather than general room illumination. For broad ambient light you would space multiple heads along the run or step up to a higher lumen fixture.
3) What beam angles does the Oculux 7011 track head come in?
Three beam spreads are offered: 50, 30, and 17 degrees. The 17 degree spot is for tight accenting on a single object, 30 degrees suits artwork and shelf sections, and the 50 degree flood is the one to use when you want overlapping coverage down a wall or aisle. Beam angle has to be specified at order time, so decide it with the mounting height in hand.
4) Can I use this WAC track head outdoors or on a covered patio?
No. The Oculux 7011 is a dry location rated interior fixture only. Covered exterior soffits, patios, and car ports need a damp or wet rated head. Keep this one inside.
5) Is the Oculux 7011 track head dimmable and does it meet California Title 24?
Yes on both. The 7011 is a dimmable 120V LED head and is Title 24 compliant, plus Energy Star listed, which matters on California and other energy-code jobs. Safety listing is ETL and cETL for US and Canadian installs.
6) Is the LED replaceable in the Oculux 7011, or is the whole head disposable at end of life?
The light source is an integrated LED module, not a lamp you swap out, and it ships with the fixture. Rated life is 50,000 hours, so at 12 hours a day of retail use that is roughly 11 years before the head itself is the service item. MRO buyers standardizing a facility should stock spare heads rather than lamps.
7) How far does the Oculux track head hang below the track, and how much clearance do I need?
The head measures 6.38 inches in overall height with a 2.38 inch diameter body and 3.5 inch length, and maximum height is 6 inches. In a gallery or showroom with low ceilings, count that drop plus the track channel itself when checking head clearance and sprinkler offsets.
8) What finishes does the WAC L-7011 Oculux head come in for matching existing track runs?
Two finishes: black (L-7011-930-BK) and white (L-7011-930-WT), both in the 11 watt build. Order the finish to match the track extrusion already on the ceiling, white track with white heads reads nearly invisible against a painted deck, black disappears against an exposed dark ceiling.
9) Is the Oculux 7011 head durable enough for a high-traffic commercial space where staff aim the lights?
The body is die cast aluminum with an acrylic diffuser over the LED, so it takes repeated re-aiming better than a plastic housing and sheds heat through the casting. Mounting is reversible, which gives flexibility in how the head sits on the track when you are re-aiming a run.
10) Do I need an electrician to install these Oculux track heads?
The head itself plugs into the energized L track, so adding or relocating heads is not an electrical task. The track feed is, however, a hardwired 120V connection, so the initial track and power feed installation should be done by a licensed electrician.
