Product Specs
- ADA Compliant:
- No
- Avg Rated Hours:
- 50000
- Bulb Base:
- Integrated LED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- CRI:
- 90
- Collection:
- Oculux
- Complete System:
- No
- Dimmable:
- Yes
- Energy Star:
- Yes
- Hardwired or Portable:
- Portable
- Location Rating:
- Dry
- Lumens:
- 890
- Number of Bulbs:
- 1
- Product Type:
- H Track Fixture
- Safety Rating:
- ETL, cETL
- Shade/Glass Description:
- Acrylic Diffuser
- Subcategory:
- LED Low Voltage
- Total Wattage:
- 11
- Base Material:
- Die Cast Aluminum
- Location Indoor/ Outdoor:
- Interior
- Max Height:
- 6"
- Reversible Mounting:
- Yes
- Shade Material:
- Acrylic
- Title 24 Compliant:
- Yes
- Bulb Type:
- LED
- Segment:
- Lighting
- SORTME:
- 1371
- Product Voltage:
- 120
- Product Length:
- 3.5"
- Beam Spread Angle:
- 50, 30, or 17
- Light Temperature:
- 3000
- Product Diameter:
- 2.38"
- Product Style:
- Modern
- Product Height:
- 6.38"
- Product Category:
- Track Lighting
- Product Width:
- 2.38"
- Product Wattage:
- 11
WAC Lighting WAC-HLED7011 – Frequently Asked Questions

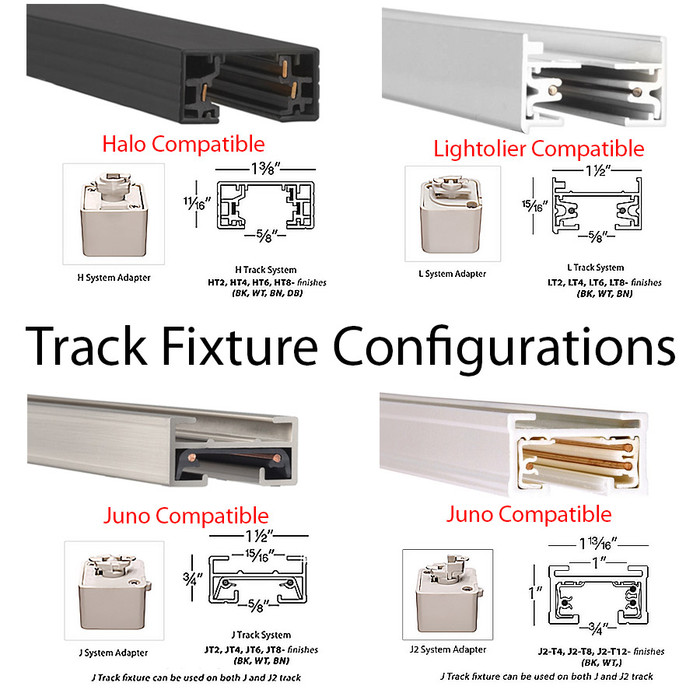

1) Will the WAC Oculux 7011 track head fit my existing H-type track?
Yes. The Oculux LED 7011 is built as an H track fixture, so it drops onto H-type (Halo-pattern) track running at 120 volts. It is not a complete system on its own, so the track section, feed, and end caps have to already be in place or ordered separately.
2) How much light does an 11W Oculux track head actually put out, and what beam should I pick?
Each head draws 11 watts and delivers 890 lumens at 3000K with a CRI of 90. Beam spread comes in 50, 30, or 17 degrees: the 50 degree flood for general wall or merchandise wash, 30 degrees for accenting a picture or display case, and the 17 degree spot for tight pinpointing on art or a single object from a higher ceiling.
3) Can the Oculux 7011 track head be used in a covered outdoor walkway or a bathroom?
No. The 7011 Oculux head is rated for dry locations and interior use only, so keep it out of covered exterior soffits, open walkways, and shower or tub zones. For those spots you need a wet or damp rated fixture instead.
4) Does the WAC Oculux 7011 dim on a standard wall dimmer, and does it meet California Title 24?
The head is dimmable and is listed Title 24 compliant as well as Energy Star, which matters on California residential and many commercial permit sets. It runs at 120V line voltage, so it is controlled from the circuit feeding the track rather than at the head.
5) Do I need to order lamps separately for the WAC 7011 Oculux head?
No lamping to buy. The 7011 uses an integrated LED module with the light source included, one per head, rated 50,000 average hours. There is no socket or bulb base, so when the module reaches end of life the fixture is replaced rather than relamped.
6) What finishes does the WAC Oculux 7011 track head come in, and what are the part numbers?
Three finishes, all at 11 watts: Black (H-7011-930-BK), White (H-7011-930-WT), and Dark Bronze (H-7011-930-DB). Property managers standardizing a building usually match the head finish to the existing track extrusion, white on white ceilings and black where the track and ceiling are dark.
7) Is the WAC Oculux 7011 head durable enough for a commercial retail or gallery install?
The body is die cast aluminum with an acrylic diffuser, and the head is ETL and cETL listed for US and Canadian jobs. Mounting is reversible, which helps when a run of track has to aim both inboard and outboard from the same section.
