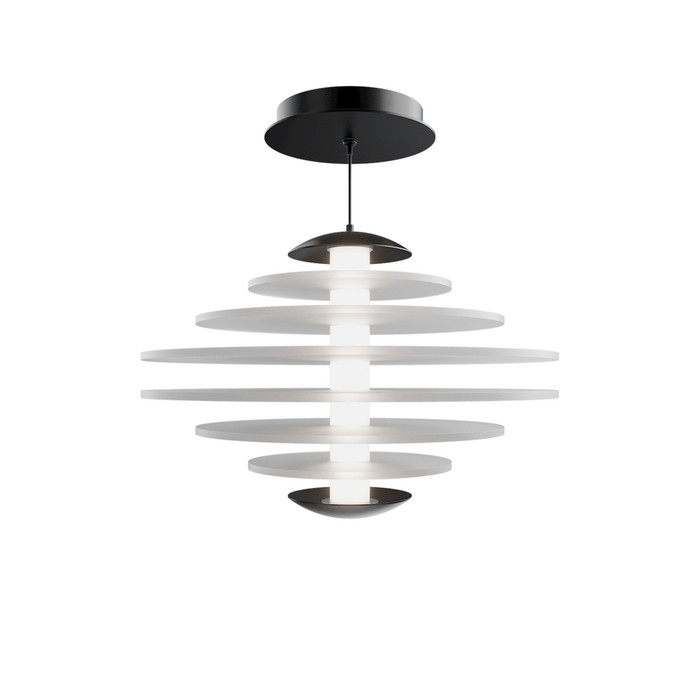

WAC Lighting PD4206 Loopey 4-CCT LED Mini-Pendant, Aluminum & Acrylic
The WAC Lighting PD4206 Loopey Mini-Pendant turns the simplicity of circles into an expressive design statement, with tiered, etched Acrylic rings that seem to float in motion and shimmer with dimension and depth. Built with durable Aluminum construction and a frosted Acrylic diffuser, this fixture pairs a High Powered Replaceable LED (CRI 90, 3073 lumens, 28.6W) with Selectable Color Temp of 2700-3000-3500-4000K on a Universal Voltage driver (120V-220V-277V). It is ETL & cETL Listed for Damp locations and ADA Compliant, making it a refined choice for residential and light-commercial interiors.
Key Features
- Sculptural Design: Tiered, etched Acrylic rings create soft, layered waves of light with a sense of motion and depth.
- Durable Construction: Aluminum body with a frosted Acrylic diffuser for a refined, contemporary silhouette.
- Ultra-Sleek Electrified Cable: Eliminates clunky power wires; height adjusts easily via push pin connectors on the canopy, and the fixture is Sloped ceiling compatible.
- Universal Voltage Driver: Concealed 120V-220V-277V driver in the backplate simplifies specification across projects.
- Smooth Dimming: Compatible with ELV or TRIAC dimmer options for continuous, flicker-free control.
- High-Powered Replaceable LED: CRI 90, 50,000 Rated Hours, and Selectable Color Temp of 2700-3000-3500-4000K for flexible ambiance.
- Light Output: Delivers 3073 lumens at 28.6W Total Wattage for efficient, high-quality illumination.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- ADA Compliant
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 3073
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Frosted Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Mini-Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: Thailand
- Total Wattage: 28.6
- Style: Modern;Transitional
Typical Applications
- Kitchen Islands and Breakfast Bars
- Dining Areas and Entryways
- Residential and Light-Commercial Interiors
- Damp-Location Spaces such as Covered Porches and Bathrooms
- Sloped Ceiling Installations
Why WAC Lighting?
WAC Lighting combines durable Aluminum construction, a frosted Acrylic diffuser, and a High Powered Replaceable LED engine with CRI 90 and 50,000 Rated Hours to deliver dependable, code-compliant performance. Backed by ETL & cETL Damp location listings, ADA compliance, and a 5-Year Functional / 2-Year Finish warranty, the Loopey Mini-Pendant is built for professional-grade reliability in demanding installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Loopey
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3073
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Acrylic Diffuser
- Subcategory:
- Mini-Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 28.6
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD420614-BK – Frequently Asked Questions
1) Can the WAC Loopey PD4206 mini-pendant be installed in a bathroom or over a covered porch?
Yes, within damp locations. The Loopey PD4206 carries an ETL and cETL listing for damp locations, which covers a bathroom away from direct spray and a covered porch or soffit. It is not rated for wet locations, so keep it out of open weather or anywhere it takes direct water.
2) Will the Loopey PD4206 pendant run on 277V commercial power, or is it 120V only?
The driver is universal voltage, concealed in the backplate, and accepts 120V, 240V or 277V. That means the same part number works on a residential 120V circuit and on a 277V branch in a commercial tenant space, so you don't need a separate SKU for the commercial job.
3) Can the PD4206 Loopey pendant be hung on a sloped ceiling?
Yes. The Loopey hangs from a ceiling-mounted canopy on an electrified cable and is sloped-ceiling compatible, and hang height is adjusted with push pin connectors at the canopy rather than by cutting stem lengths. It is hardwired, so it needs a junction box at the mounting point.
4) What dimmer works with the WAC Loopey PD4206 LED pendant?
Use an ELV (electronic low voltage) or TRIAC dimmer. Those are the two control types the integral LED driver is built for, and the fixture dims smoothly and flicker-free on them. A standard incandescent-only or 0-10V control is the wrong match here, so specify the dimmer with the fixture rather than reusing whatever is in the wall.
5) Do I have to pick a color temperature when ordering the Loopey PD4206, or is it selectable on site?
Color temperature is selectable at the fixture across 2700K, 3000K, 3500K and 4000K, so there is no CCT to specify on the order. The only choice to make is finish: Black or Chrome. For a multi-unit property that means one part number covers a warm residential look and a cooler 4000K commercial corridor.
6) How many Loopey PD4206 pendants do I need over a kitchen island?
Each Loopey puts out 3073 lumens at 28.6W with a flood distribution and CRI 90 light through a frosted acrylic diffuser, so one fixture carries a fair amount of a task area on its own. Over a typical island most installers run two or three for even coverage and symmetry rather than for raw output. On 277V commercial circuits the 28.6W draw also keeps a run of several pendants light on the breaker.
7) Is the LED in the WAC Loopey pendant replaceable, or is the whole fixture disposable when it fails?
The light source is a high-powered replaceable LED module running on a universal driver, rated 50,000 hours. For an MRO or property maintenance program that matters: you service the module instead of pulling and rewiring the pendant. Bulbs are included with the fixture, so nothing extra is needed to commission it.
8) Does the Loopey PD4206 meet California Title 24 and Title 20 for a kitchen lighting permit?
The Loopey mini-pendant is stated as CEC and Title 24 compliant and Title 20 compliant, with CRI 90, which is the metric most often questioned on a residential kitchen inspection. It is not Energy Star certified, so if a rebate program specifically requires Energy Star, this fixture will not satisfy that line item.
9) Is the WAC Loopey pendant ADA compliant for a hallway in a commercial building?
The Loopey PD4206 is listed as ADA compliant. As a suspended pendant the governing ADA concern is usually mounting height and protrusion into the circulation path, so hang it clear of the required headroom in a corridor. For an institutional spec sheet, the ADA compliance plus the ETL/cETL damp listing are the two lines a plan reviewer looks for.
10) What is the Loopey PD4206 pendant actually made of, and will the finish hold up in a rental unit?
Body and frame are aluminum, with tiered etched acrylic rings and a frosted acrylic diffuser. Acrylic rather than glass means it won't shatter if something clips it, which is a practical advantage over an island or in a turnover-heavy rental. Finishes offered are Black and Chrome.
11) Is there an installation guide available for the WAC Lighting PD4206 Loopey pendant?
Yes, WAC publishes an installation guide for the Loopey PD4206 and it is available as a PDF with the product data. Worth pulling before rough-in, since the cable height adjustment uses push pin connectors at the canopy and the universal 120/240/277V driver sits in the backplate.
