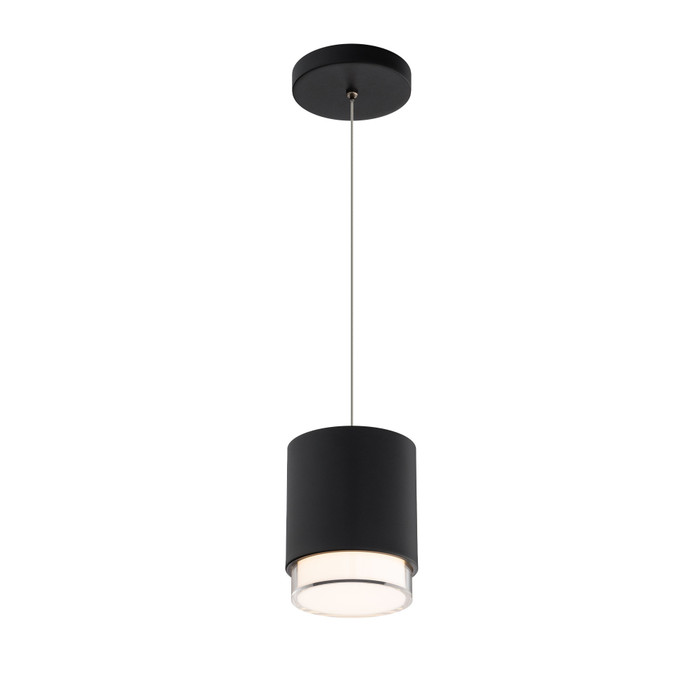

WAC Lighting PD-585 Cloak 4-CCT LED Mini-Pendant, Aluminum
The WAC Lighting PD-585 Cloak 4-CCT LED Mini-Pendant pairs an opaque aluminum tube with an acrylic shade to direct clean, downward illumination for kitchen islands, dining areas, and hospitality spaces. Built-in color temperature adjustability lets installers pre-select or field-switch between 2700K, 3000K, 3500K, and 4000K, while the high-powered, replaceable LED module delivers CRI 90 output rated for 50,000 hours. ETL and cETL listed for damp locations and CEC Title 24 compliant, this mini-pendant is engineered for reliable, code-compliant performance in both residential and commercial interiors.
Key Features
- Durable Construction: Aluminum tube housing with an acrylic shade directs light in a clean, downward design.
- Selectable Color Temperature: Built-in 4-CCT adjustability switches between 2700K/3000K/3500K/4000K, with the option to pre-select or adjust in the field.
- Universal Voltage Driver: Concealed 120V-240V-277V universal input voltage driver in the canopy simplifies specification across projects.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for continuous, flicker-free dimming.
- High-CRI LED Module: High-powered, replaceable LED module rated CRI 90 with a 50,000-hour rated life and selectable 2700-3000-3500-4000K color temperature.
- Flexible Installation: Ultra-sleek electrified cable eliminates clunky power wires; height adjusts easily through push pin connectors on the canopy, and the fixture is sloped ceiling compatible.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Cloak
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Mini-Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Style: Modern;Transitional
Typical Applications
- Kitchen Islands and Dining Areas
- Residential and Commercial Interiors
- Hospitality and Retail Lighting
- Damp-Location Installations
- Modern and Transitional Interior Design
Why WAC Lighting?
WAC Lighting builds the Cloak Mini-Pendant with a durable aluminum and acrylic assembly, a replaceable high-CRI LED module, and ETL/cETL damp-location listings that support dependable, code-compliant performance. Backed by a 5-year functional and 2-year finish warranty, it's a fixture professionals can specify with confidence for demanding interior lighting applications.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Cloak
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Acrylic Shade
- Subcategory:
- Mini-Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-58506-27-WT – Frequently Asked Questions
1) Can the WAC Lighting Cloak PD-585 pendant be installed on a sloped ceiling?
Yes. The Cloak PD-585 mini-pendant is sloped ceiling compatible, and hanging height is adjusted through push pin connectors on the canopy rather than by cutting stem sections. It is a ceiling-mounted, hardwired fixture, so you need a junction box at the mounting point.
2) Will the Cloak PD-585 pendant run on 277V in a commercial building?
Yes. The driver is a concealed universal input unit rated 120V, 240V and 277V, mounted in the canopy, so the same fixture covers residential 120V and commercial 277V circuits without ordering a different version.
3) What dimmer works with the WAC Cloak PD-585 LED pendant?
Use an electronic low voltage (ELV) or TRIAC dimmer. Standard incandescent/magnetic low-voltage dimmers are not the listed control type for this pendant, and mismatched dimmers are the usual cause of flicker or a limited dimming range on LED drivers.
4) If I order a 3000K Cloak pendant, am I locked into that color temperature?
No. Every Cloak PD-585 pendant has built-in 4-CCT selectability across 2700K, 3000K, 3500K and 4000K. The color temperature you choose at order is the pre-set; an installer can switch it in the field. That matters on a multi-unit job where you want one fixture to match warmer residential spaces and cooler commercial areas.
5) Can I hang the Cloak PD-585 pendant over a bathroom vanity or a covered exterior porch?
The Cloak PD-585 is ETL and cETL listed for damp locations, so a bathroom, covered porch, or similar sheltered spot is within its rating. It is not wet-location rated, so do not use it where it will take direct rain or hose spray.
6) What sizes and finishes does the WAC Cloak PD-585 mini-pendant come in?
Two sizes, 5 and 7, each in Black or White, and each available pre-set at 2700K, 3000K, 3500K or 4000K. Housing is an opaque aluminum tube with an acrylic shade, so the finish is on the tube and canopy. For a run over an island, the larger 7 reads heavier in a row of two or three; the 5 suits tighter spacing or a counter.
7) Does the Cloak PD-585 need bulbs, and what happens when the LED fails?
No bulbs to buy. The light source is an integrated high-powered LED module shipped with the fixture, and it is replaceable rather than sealed in, so the pendant does not get thrown away at end of life. Rated life is 50,000 hours.
8) Is the Cloak PD-585 pendant good enough quality of light for a restaurant or retail display?
CRI 90 output with a flood beam spread, so food, merchandise and skin tones render accurately rather than washing out. The opaque aluminum tube with acrylic shade throws the light downward, which suits island, table and display-case lighting more than ambient room fill.
9) Does the WAC Cloak PD-585 meet California Title 24 and is it ADA compliant?
It is CEC Title 24 compliant, which is what matters for a California job. It is not ADA compliant and it is not Energy Star qualified. ADA is largely irrelevant for a ceiling-hung pendant anyway (the restriction applies to wall projections), but if your spec requires Energy Star, this is not the fixture.
10) How does the Cloak pendant hang, and can the drop height be shortened on site?
It suspends on a slim electrified cable instead of bulky power wire or a rigid stem, and the drop is set by push pin connectors at the canopy, so an electrician can shorten or lengthen it during install without extra parts. Install instructions are published for the fixture.
