WAC Lighting LTK-775 Radiant L...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$43.96
WAC Lighting - TK-775 Radiant Line Voltage Track Head

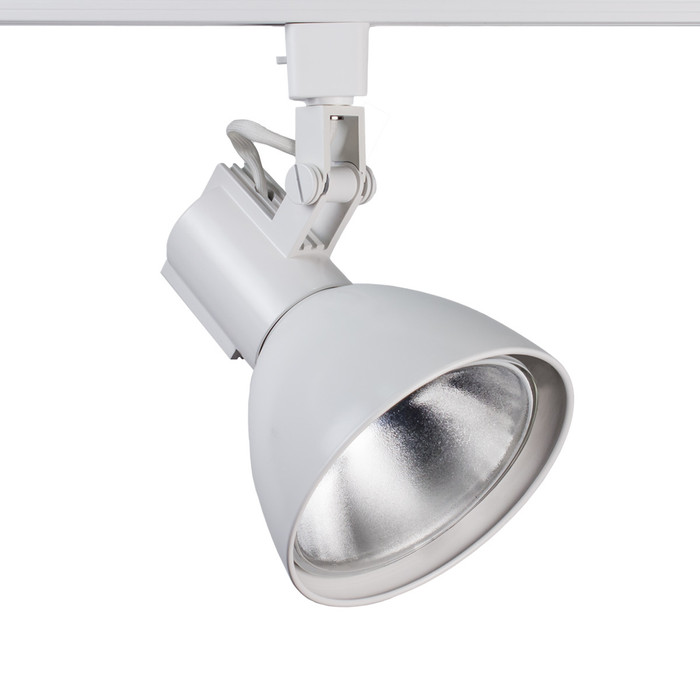

WAC Lighting LTK-775 Radiant Line Voltage Track Head

(No reviews yet) Write a Review

Model: LTK-775-BK
From the Radiant Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$43.96
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms PD-41819 Cascade Etched Glass LED Pendant

Cascade is a refined take on minimalistic glam. Each pendant illuminates beautifully while the jeweled crystal caps, expertly hand-cut, punctuate each piece like a chic yet understated exclamation of luxury. Suspended alone, in pairs or in multiples as a chandelier, Cascade captures the imagination and makes an alluring presentation in restaurants, hotel atriums and residences alike.
  • Stunning polished nickel, aged brass, or matte black finish. Aluminum hardware, frosted glass end cap. Available in Single, 3, 5, 9, 15, 21, and 23 light versions with round or rectangular canopies.
  • Ultra-sleek electrified cables eliminate the need for clunky power wires. Height is simple to adjust through push pin connectors on the canopy. Longer heights available by special order.
  • Universal Input Voltage Driver (120V-240V-277V) located in 4in junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 60,000, Color Temp: 3500K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Bulb Base:
Medium
Bulb Shape:
PAR38
Bulbs Included:
No
Collection:
Radiant
Dimmable:
ELV, TRIAC
Hardwired or Portable:
Plugin
Product Type:
Line Voltage
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Indoor Lighting
Product Subgroup:
Track Lights
Base Material:
Aluminum
Location Rating:
Dry
Brand Family:
WAC Limited
CEC Listed:
Yes
Energy Star:
No
Subcategory:
J Track Fixture
Certification:
UL, cUL
Location Indoor/ Outdoor:
Indoor
Max Height:
9.3"
Title 24 Compliant:
Yes
Segment:
Lighting
Product Voltage:
120V
Product Length:
6.88"
Product Diameter:
5.42"
Product Style:
Functional
Product Height:
9.25"
Product Category:
Track Lighting
Product Width:
5.5"
Product Wattage:
150W
Department:
Electrical

WAC Lighting LTK-775-BK – Frequently Asked Questions

1) Will the WAC Lighting LTK-775 Radiant track head fit my existing J-track?
Yes. The LTK-775 Radiant head is built as a J Track fixture, so it mounts on J-type (Juno-compatible) track running 120V line voltage. It will not seat in H or L track geometry, so confirm the track in the ceiling is J before ordering.
2) Can I use the LTK-775 Radiant head outdoors or in a covered patio?
No. The Radiant head is rated for indoor, dry locations only, so keep it out of exterior runs, covered patios, bathrooms over tubs, and commercial kitchens or coolers where condensation is likely. For damp-rated exposure you need a fixture carrying a damp location listing.
3) Does the WAC Radiant LTK-775 meet California Title 24 and CEC requirements?
Yes on both. The Radiant head is listed as Title 24 compliant and CEC listed, and it is UL and cUL certified for the US and Canada. It is not Energy Star rated. For a Title 24 project the lamp you pair with it still has to satisfy the efficacy requirement, since lamps are not included.
4) How much clearance do I need below the track for the LTK-775 head?
Allow roughly 9-1/4 inches of height for the head itself, with a maximum height of 9.3 inches, plus a 5.42 inch diameter shade. Overall the body measures about 6.88 inches long by 5.5 inches wide. In low-ceiling retail or a gallery with tall artwork, that projection matters when you aim the head down a wall.
5) Will the LTK-775 dim on the dimmer already in the room?
Dimming is supported on ELV (electronic low voltage) and TRIAC dimmers. Since it is a line voltage PAR38 head with no onboard driver, the dimming performance follows the lamp you install, so match the lamp's dimmer compatibility to the ELV or TRIAC control on the wall.
6) What finishes does the Radiant LTK-775 come in, and which should I order to match existing track?
Three finishes: black (LTK-775-BK), brushed nickel (LTK-775-BN), and white (LTK-775-WT). For a fleet of units across a building, white typically disappears against a painted ceiling, black reads intentional on exposed-structure retail, and brushed nickel matches satin nickel trim packages. All three are the same head and share the same aluminum body.
7) Is the LTK-775 hardwired or does it just plug into the track?
It is a plug-in head, not a hardwired fixture. The track adapter connects it to an energized 120V J track run, so no splicing is involved at the fixture end and heads can be added, moved, or re-aimed along the run without an electrician opening up a junction box.
8) Is the WAC Radiant track head ADA compliant for a corridor installation?
The Radiant LTK-775 is listed as ADA compliant. Because it is a ceiling track head rather than a wall-mounted fixture, protrusion into the path of travel is generally not the governing issue, but it does carry the ADA compliant designation if your specification calls for it.
