WAC Lighting LTK-764 Line Volt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$40.00
$35.95
WAC Lighting - TK-764 Line Voltage Track Head

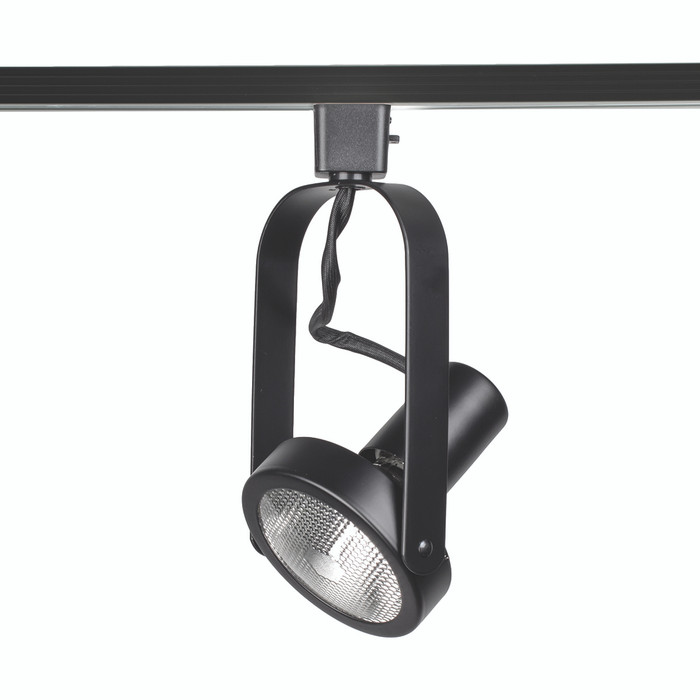

WAC Lighting LTK-764 Line Voltage Track Head

(No reviews yet) Write a Review

Model: LTK-764-BK
From the TK-764 Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.00
$35.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms Cosmic Multi-Light Pendant

Bring dramatic visual flourish into your restaurant, hotel lobby or event space with Cosmic's massive dazzling art glass spheres- when filled with light, the bubbling and marbling effects of the 7-step art-glassmaking process captivates the room like celestial forms. It's easy to install, it's easy to adjust the length of the suspension, and it's easy to marvel at this spectacular piece, whether you choose the single pendant form or the chandelier. Energy-efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination.
  • 7-step hand made art glass creates a dramatic sparkling bubble and marbleized effect.
  • Ultra-sleek electrified cables eliminate the need for clunky power wires. Height is simple to adjust through push pin connectors on the canopy. Longer heights available by special order.
  • Universal Input Voltage Driver (120V-240V-277V) inside fixture, can fit on a pancake junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 60,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Bulb Base:
PAR30
Bulb Shape:
Multiple
Bulbs Included:
No
Collection:
TK-764
Dimmable:
Yes
Hardwired or Portable:
Portable
Product Type:
L Track Fixture
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Indoor Lighting
Product Subgroup:
Track Lights
Base Material:
Aluminum
Location Rating:
Dry
Brand Family:
WAC Limited
CEC Listed:
Yes
Energy Star:
No
Subcategory:
Line Voltage
Certification:
UL, cUL
Complete System:
No
Number of Bulbs:
1
Safety Rating:
UL, cUL
Total Wattage:
50
Location Indoor/ Outdoor:
Interior
Max Height:
9.25"
Reversible Mounting:
Yes
Title 24 Compliant:
No
Bulb Type:
Incandescent or LED
Segment:
Lighting
SORTME:
706
Product Voltage:
120
Product Length:
5"
Product Diameter:
5.21"
Product Style:
Modern
Product Height:
9.25"
Product Category:
Track Lighting
Product Width:
5.21"
Product Wattage:
50

WAC Lighting LTK-764-BK – Frequently Asked Questions

1) Will the WAC LTK-764 track head fit my existing track, or do I need WAC L-track?
The LTK-764 is an L Track fixture, so it mounts to WAC L-series track only. It will not seat in H-track or J-track, and it will not fit Halo, Juno or Lightolier track without the matching system. It is a line voltage head running at 120V, so the track circuit needs to be standard line voltage, not a low voltage system.
2) What bulb does the WAC LTK-764 track head take, and does it come with one?
It takes a single PAR30 lamp, and no lamp is packed with the head. You can run either an incandescent PAR30 or an LED PAR30, up to 50W on the fixture. For a retail or gallery install, buy the lamps separately and match beam spread to your throw distance.
3) Can the LTK-764 track head go in a covered exterior walkway or a bathroom?
No. The LTK-764 is rated for dry locations and interior use only. Keep it out of covered patios, canopies, shower areas and anywhere that sees steam or splash, those call for a damp or wet rated fixture.
4) How much wattage can I load on a run of LTK-764 heads?
Each LTK-764 head is rated 50W maximum, and that 50W is the total for the fixture since it carries one lamp. Count 50W per head when you size the track circuit, so a 20A 120V run tells you how many heads the branch will carry.
5) How big is the WAC LTK-764 head and how far does it hang off the track?
The head measures 5.21 inches in diameter with a 9.25 inch overall height and a 5 inch length. Allow for that 9.25 inch dimension when you are working under a low ceiling, a soffit or a display case header, and give the head room to swing when you aim it.
6) What finishes does the LTK-764 track head come in for matching the rest of my track run?
Three finishes: Black (LTK-764-BK), Brushed Nickel (LTK-764-BN) and White (LTK-764-WT). White and black are the usual picks for blending into a painted ceiling or a dark open plenum; brushed nickel suits retail and hospitality where the head is meant to be seen. Order your track and connectors in the same finish.
7) Does the WAC LTK-764 meet California Title 24 for a residential or commercial lighting job?
No, the LTK-764 is not Title 24 compliant and it is not Energy Star rated. It is CEC listed, and it carries UL and cUL certification. On a Title 24 job the compliant lighting has to come from elsewhere in the design.
8) Can the LTK-764 head be mounted on track that runs up a wall or is it ceiling only?
It has reversible mounting, so the head can be oriented either way on the track and works on wall-mounted track runs as well as ceiling runs. The body is aluminum, which keeps the weight down on longer cantilevered runs.
