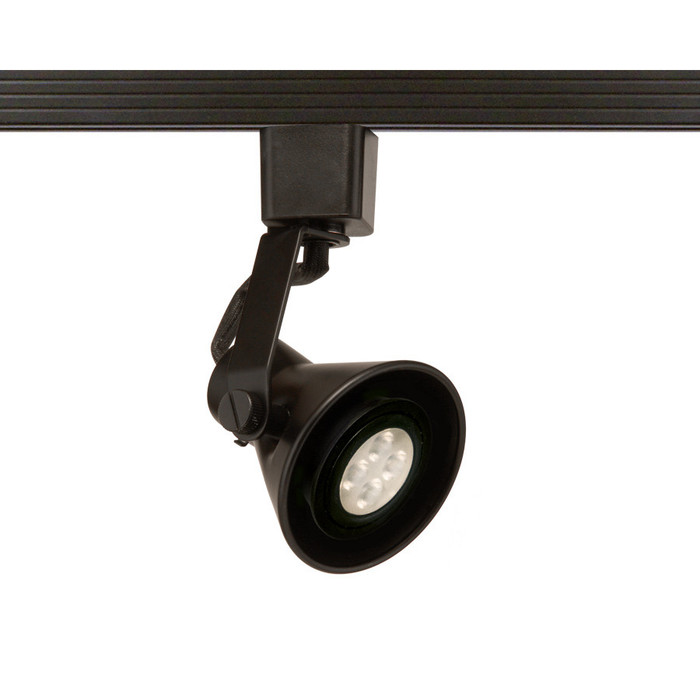

WAC Lighting Miniature LED Line Voltage Track Head WAC-JTK-103LED

WAC Lighting Miniature LED Line Voltage Track Head JTK-103LED

(No reviews yet) Write a Review

Model: JTK-103LED-BK
From the TK-103 Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.00
$69.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms XF-24 24in Ceiling Fan Extension Downrod

3/4 in. downrods can be used to extend downrod ceiling fan height. Downrods are available in 12 in., 18 in., 24 in., 36 in., 48 in., 60 in., and 72 in. sizes along with a variety of finish options to match your fan finish. Downrods can be joined together using a downrod coupler (XF-I) to make lengths greater than 72 in. and may also be shortened in the field. Not recommended for use with any ceiling fans other than Modern Forms Smart Fans or WAC Smart Fans.
  • 3/4 in. downrods can be used to extend downrod ceiling fan height. Downrods cannot be used with "Hugger" or "Flush Mount" ceiling fans. Not recommended for use with any ceiling fans other than Modern Forms Smart Fans or WAC Smart Fans.
  • Downrods are available in 12 in., 18 in., 24 in., 48 in., 60 in., and 72 in. sizes.
  • Available in a variety of finish options to match your ceiling fan finish.
  • Downrods can be joined together using a downrod coupler (XF-I) to make lengths greater than 72 in..
  • Modern Forms downrods are single threaded on the motor side only for simple and precise field adjustment.
  • Modern Forms downrods are recommended to be used with Modern Forms Smart Fans, but may also be used with other manufacturers fans. Check dimensions for compatibility.

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Bulb Base:
GU10
Bulb Shape:
GU10
Bulbs Included:
Yes
Collection:
TK-103
Dimmable:
ELV
Hardwired or Portable:
Plugin
Lumens:
470
Number of Bulbs:
1
Product Type:
LED Line Voltage Heads
Shade/Glass Description:
Clear Glass Lens
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Indoor Lighting
Product Subgroup:
Track Lights
Avg Rated Hours:
25000
Base Material:
Aluminum
Location Rating:
Dry
Brand Family:
WAC Limited
CEC Listed:
Yes
CRI:
90
Energy Star:
No
Subcategory:
J Track Fixture
Certification:
UL, cUL
Glass Finish:
Clear Glass Lens
Location Indoor/ Outdoor:
Indoor
Max Height:
5.45"
Shade Material:
Glass
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
Product Voltage:
120V
Product Length:
2.63"
Light Temperature:
3000K
Product Diameter:
3.07"
Product Style:
Functional
Product Height:
5.44"
Product Category:
Track Lighting
Product Width:
3.06"
Product Wattage:
8W

WAC Lighting JTK-103LED-BK – Frequently Asked Questions

1) Will the WAC JTK-103LED track head fit my existing J-track system?
The JTK-103LED is built for J-style track, listed as a J Track Fixture, and runs on 120V line voltage. If your run is H-track or L-track, this head will not seat in it. Confirm the track profile in the ceiling is J before ordering.
2) Do I need to buy a bulb for the WAC JTK-103LED, and can I re-lamp it later?
A lamp is included, one GU10 base LED. Because it uses a standard GU10 twist-lock base rather than an integrated board, the head can be re-lamped down the road instead of replacing the whole fixture. That is a real advantage for a property manager maintaining a lot of heads.
3) What dimmer do I need for WAC JTK-103LED LED track heads?
These dim on ELV (electronic low voltage) control. A standard incandescent/TRIAC forward-phase dimmer is not the right control here, so spec an ELV reverse-phase dimmer rated for the total connected LED wattage on the circuit. At 8W per head you can put a lot of heads on one dimmer, but check the dimmer's minimum load as well as its maximum.
4) Can the WAC JTK-103LED be used in a covered exterior walkway or a bathroom?
No. It is rated for dry locations and indoor use only. Covered exterior soffits, garages that see moisture, and shower or tub zones all need a damp or wet rated head instead. Interior retail, office, gallery, and residential ceilings are what this one is for.
5) Does the WAC JTK-103LED meet California Title 24 and carry a UL listing?
Title 24 compliant and CEC listed, with UL and cUL certification for both the US and Canada. It is also noted as ADA compliant. Energy Star is not carried on this head. Those are the boxes a spec-driven job in California or an institutional submittal usually asks about.
6) How much light does an 8W WAC JTK-103LED track head put out, and what color is it?
470 lumens from 8 watts at 120V, in 3000K warm white with a 90 CRI. At that output it works as accent and display lighting rather than general room illumination, so plan on multiple heads along a run for broad coverage. The 90 CRI matters if you are lighting merchandise, artwork, or finishes where color accuracy counts.
7) How far does the WAC JTK-103LED miniature track head hang below the track?
It measures 5.44 inches high with a 5.45 inch max height, 3.06 inches wide, 2.63 inches long, and 3.07 inches in diameter. That is a small profile, which is why it suits low ceilings and tight residential or retail runs where a full-size head would read heavy.
8) What finishes does the JTK-103LED track head come in for matching existing heads?
Two finishes: black (JTK-103LED-BK) and white (JTK-103LED-WT). If you are adding heads to an existing run, order to match the track color, since a white head on black track reads immediately in a ceiling line.
9) How long will these LED track heads last before maintenance?
Rated at 25,000 average hours. Run 12 hours a day in a retail space, that is roughly five and a half years before you would expect to re-lamp, and the GU10 base means re-lamping is a bulb swap rather than a fixture replacement.
10) What is the WAC JTK-103LED head made of, and what is the lens?
Aluminum body with a clear glass lens. Aluminum helps pull heat off the LED, and the clear lens keeps the beam crisp rather than diffusing it, which is what you want for accent and display aiming.
