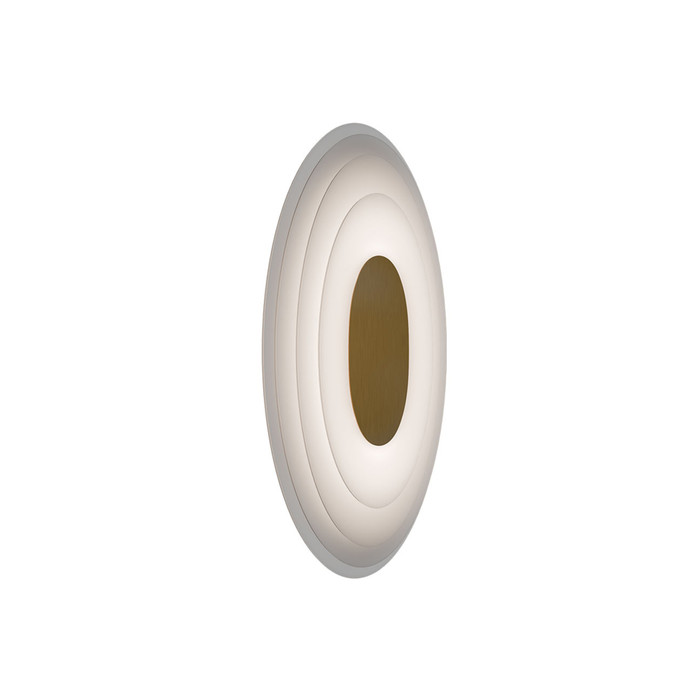

WAC Lighting WS-675 Orbix 4-CCT LED Wall Sconce
The WAC Lighting WS-675 Orbix 4-CCT LED Wall Sconce brings a smooth, layered design of concentric rings framing a crisp central circle, delivering a low-profile wall wash with minimized horizontal glare. Built around a high-powered replaceable LED module rated at 20W and 1300 lumens with a CRI of 90, this sconce offers built-in color temperature adjustability across 2700K/3000K/3500K/4000K. It is ETL & cETL listed for damp locations and ADA compliant, making it a reliable choice for both residential and light commercial wall lighting applications.
Key Features
- Selectable Color Temperature: Built-in CCT adjustability lets you switch from 2700K/3000K/3500K/4000K, with the option to pre-select color temperature or adjust it in the field.
- Durable Construction: Aluminum hardware paired with an etched acrylic diffuser for a clean, modern look with even light diffusion.
- Universal Voltage Driver: A concealed 120V-220V-277V universal voltage driver sits in the backplate, with a decorative conversion plate included to accommodate a standard 4" junction box.
- Smooth Dimming: Continuous, flicker-free dimming compatible with electronic low voltage (ELV) or TRIAC dimmer options.
- High-Powered LED Module: Replaceable LED module rated CRI 90, 50,000 rated hours, with selectable CCT color temperature of 2700-3000-3500-4000K.
- Light Output: Delivers 20W of total wattage and 1300 lumens for effective wall-wash illumination.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- ADA Compliant
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Orbix
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 1300
- Product Type: Indoor Wall Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Etched Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Wall Sconce
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 20
- Style: Modern
- Mounting: Wall;Any
Typical Applications
- Indoor Residential and Commercial Wall Lighting
- Hallways, Corridors, and Stairwells
- Bedrooms and Living Areas Requiring Ambient Wall Wash
- Damp-Location Areas Such as Covered Porches and Entryways
- Renovation and New Construction Projects
Why WAC Lighting?
WAC Lighting builds the Orbix WS-675 around a replaceable high-powered LED module, aluminum hardware, and an etched acrylic diffuser, backed by ETL & cETL damp-location listing, ADA compliance, and CEC/Title 24/Title 20 compliance. With a 5-year functional and 2-year finish warranty, it delivers dependable, code-compliant wall lighting for professional installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Orbix
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 1300
- Product Type:
- Indoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Etched Acrylic Diffuser
- Subcategory:
- Wall Sconce
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 20
- Product Style:
- Modern
- Mounting Method:
- Wall;Any
WAC Lighting WS-67514-27-BK – Frequently Asked Questions
1) Can the WAC Orbix WS-675 sconce be used on a covered porch or in a bathroom?
The Orbix WS-675 carries a damp location rating and is ETL and cETL listed, so covered porches, entryways, and bathroom walls out of direct spray are all within its rating. It is not rated for wet locations, meaning anywhere exposed to direct rain or a shower spray stream needs a wet-rated fixture instead.
2) Does the Orbix WS-675 wall sconce meet ADA requirements for corridors?
Yes, the Orbix WS-675 is ADA compliant, which is what lets it go on corridor and stairwell walls in commercial and multi-family buildings where protruding-object limits apply. That, plus the damp-location ETL/cETL listing, is usually what a spec reviewer checks first on a wall sconce.
3) Do I have to order a separate sconce for 277V, or will one part work on both 120V and 277V?
One part covers both. The Orbix WS-675 has a concealed universal-voltage driver in the backplate rated 120-240-277V, so the same fixture works on a 120V residential circuit or a 277V commercial lighting branch. For a property standardizing across a mixed-voltage building, that means a single SKU for every floor.
4) Will the Orbix WS-675 mount to an existing 4 inch junction box?
Yes. It is a hardwired wall-mount fixture and ships with a decorative conversion plate that accommodates a standard 4 inch junction box, so an existing recessed box in the wall can be reused. The driver rides in the backplate rather than in the box.
5) What dimmer works with the WAC Orbix WS-675 LED sconce?
Use an ELV (electronic low voltage) or TRIAC dimmer. The Orbix WS-675 dims continuously and flicker-free on those two types. A standard magnetic low voltage or 0-10V control is not what this driver expects, so match the dimmer type before wiring a run of them together.
6) Do I pick the color temperature when I order the Orbix sconce, or set it at the fixture?
Both routes are open. The Orbix WS-675 is a 4-CCT fixture with built-in selectable color temperature at 2700K, 3000K, 3500K, and 4000K, and it can be pre-selected at ordering or switched in the field. Ordering combinations are 2700K, 3000K, 3500K, or 4000K in either Aged Brass or Black.
7) How much light does the Orbix WS-675 put out, and is it enough to light a hallway on its own?
It delivers 1300 lumens at 20W total with a flood beam spread, which is a wall wash rather than a task light. In a corridor that works as spaced ambient lighting, typically on regular centers, not as a single source for a whole room. CRI 90 means skin tones and finishes read accurately, which matters in hospitality and healthcare corridors.
8) When the LEDs in the Orbix sconce fail, does the whole fixture get replaced?
No. The Orbix WS-675 uses a replaceable high-powered LED module rather than a sealed board, so the light engine can be swapped without pulling the fixture off the wall permanently. The module is rated 50,000 hours and comes with the fixture, so nothing extra is needed at install.
9) Does the Orbix WS-675 meet California Title 24 and Title 20 requirements?
Yes, the Orbix WS-675 is stated as CEC and Title 24 compliant as well as Title 20 compliant, which is what California jobs need on a hardwired residential or light commercial wall fixture. It is not Energy Star rated, so any rebate program that requires Energy Star specifically will not accept it.
10) What is the Orbix WS-675 sconce actually made of, and how will it hold up in a commercial corridor?
Aluminum hardware with an etched acrylic diffuser over concentric rings. Acrylic rather than glass means it will not shatter if a cart clips it in a corridor, and the etched face spreads the output evenly with minimized horizontal glare. Finish choices are Aged Brass and Black.
11) Can the Orbix WS-675 be mounted with the light throw pointed either up or down?
The mounting method is listed as wall and any orientation, so the sconce can be installed in either direction to wash up or down the wall. Wiring is hardwired to the backplate either way. The installation guide covers the mounting sequence.
