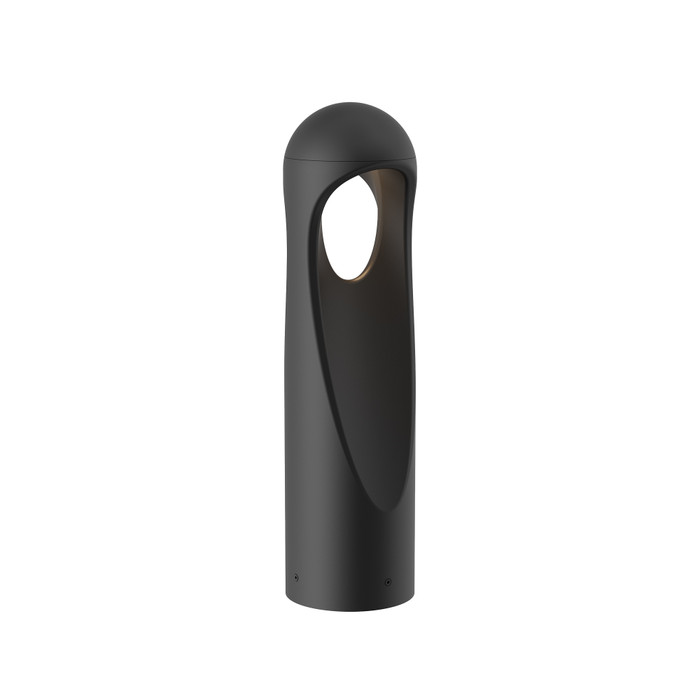

WAC Lighting 6702 Passage LED 12V Bollard Light, Die-Cast Aluminum
The WAC Lighting 6702 Passage LED 12V Bollard Light is a modern, low-level bollard fixture delivering smooth, balanced illumination along pathways. Cast from K-alloy die-cast aluminum in a granite, black, or bronze finish, this 12V fixture is factory sealed and IP66 rated against high-pressure water jets and outdoor elements. Operating on 9-15V AC at 8.8W (8.9VA), it delivers up to 345 lumens at 90 CRI and carries UL & cUL 1838 listing for wet-location use.
Key Features
- Durable Construction: Cast from K-alloy die-cast aluminum engineered to withstand the most challenging outdoor environments over time.
- Finish Options: Available in a black, bronze, or stone-like granite finish that blends seamlessly into natural surroundings.
- 12V Low-Voltage Operation: Input of 9-15V AC with 8.8W (8.9VA) power draw; requires a magnetic or electronic power supply (sold separately).
- Dimmable: Smooth, continuous dimming down to 10% when paired with a Magnetic Low Voltage (MLV) dimmer.
- High-Powered LED: Delivers up to 345 lumens at 90 CRI with a rated life of 50,000 hours.
- Weathertight Sealing: Factory sealed and watertight with an IP66 rating for protection against high-pressure water jets and outdoor elements.
- Mounting Hardware: Includes a guardian spike mounting accessory and a 6ft lead wire with two gel-filled direct burial wire nuts; optional concrete pour kit (SKU# M6702-CON-KIT) sold separately.
Certifications & Compliance
- UL & cUL 1838 Listed
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Collection: Passage
- Dimmable: MLV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Bollard Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Warranty: 10 Years Functional, 2 Years Finish
- Avg Rated Hours: 50000
- Beam Spread: 140
- Voltage: 12
- Material: Die-cast aluminum
- Country of Origin: Thailand
- Location Rating: Wet
- Total Wattage: 8.8
- Style: Modern;Transitional
Typical Applications
- Pathway and Walkway Lighting
- Landscape and Garden Lighting
- Outdoor Architectural Accent Lighting
- Wet-Location Outdoor Installations
- Commercial and Residential Hardscapes
Why WAC Lighting?
WAC Lighting builds the Passage bollard light from rugged K-alloy die-cast aluminum with a factory-sealed, IP66-rated watertight housing designed to perform reliably in demanding outdoor conditions. Backed by UL & cUL 1838 listing along with a 10-year functional and 2-year finish warranty, this fixture delivers code-compliant, long-lasting performance for professional landscape and architectural lighting installations.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Passage
- Dimmable:
- MLV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Bollard Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Bollard Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 140
- Product Voltage:
- 12
- Product Material:
- Die-cast aluminum
- Location Rating:
- Wet
- Total Wattage:
- 8.8
- Product Style:
- Modern;Transitional
WAC Lighting 6702-27BK – Frequently Asked Questions
1) Does the WAC Lighting 6702 Passage bollard light need a separate transformer, or can it run on line voltage?
It will not run on 120V. The 6702 Passage bollard is a 12V low-voltage fixture with an input range of 9-15V AC, so it has to be fed from a magnetic or electronic low-voltage power supply, which is not included with the fixture. Budget the transformer VA accordingly: each bollard draws 8.8W (8.9VA).
2) What mounting hardware comes with the WAC Passage 6702 bollard, and what do I need for a concrete install?
The 6702 ships with a guardian spike mount plus a 6ft lead wire and two gel-filled direct burial wire nuts, so a spike-in-soil install along a planting bed or pathway is complete out of the box. If you are setting it into hardscape or a concrete pad, the concrete pour kit (M6702-CON-KIT) is a separate order.
3) Can the WAC 6702 bollard be installed in an exposed outdoor location that gets hit by irrigation and pressure washing?
Yes. The Passage 6702 is factory sealed and watertight with an IP66 rating, which covers high-pressure water jets, and it is rated for wet locations. It carries UL and cUL 1838 listing, the standard for low-voltage landscape lighting systems.
4) Will the WAC Passage 6702 bollard dim on the dimmer I already have?
Only on a Magnetic Low Voltage (MLV) dimmer. On MLV it dims smoothly and continuously down to 10%. A TRIAC, ELV or 0-10V control is not the right pairing for this fixture, and the dimmer has to sit ahead of the low-voltage supply, not between the supply and the bollard.
5) What color temperatures and finishes does the WAC 6702 Passage bollard come in?
Two color temperatures, 2700K and 3000K, each available in black, bronze, or granite die-cast aluminum. All six combinations are built, so you can standardize one finish across a property and still pick the warmth you want. 2700K reads warmer and residential; 3000K is the more common choice on commercial hardscapes where you want paving and plantings to read cleaner.
6) How much light does one Passage 6702 bollard put out, and how far apart should they go on a walkway?
Each fixture delivers up to 345 lumens at 90 CRI through a frosted glass lens, with a 140 degree beam spread. That wide spread and low output make it a path-marking fixture rather than an area light, so it is spaced in a run to wash the walking surface, not used singly to light a whole courtyard. The 90 CRI matters where plant color and stone tone need to look right at night.
7) Is the LED in the WAC 6702 bollard replaceable, or is the whole fixture replaced at end of life?
The 6702 uses a single integrated LED module (bulb base listed as LED Module - Transformer) with the lamping included, rated at 50,000 hours. There is no socketed lamp to swap, so maintenance planning should treat it as a sealed fixture, which is also what lets it hold the IP66 seal.
8) Will the WAC Passage bollard hold up in coastal or freeze-thaw conditions?
The housing is K-alloy die-cast aluminum, factory sealed, and the fixture is wet-location rated at IP66. Aluminum castings with a sealed body are the normal specification for exposed landscape runs. The finish is the wear item on any cast outdoor fixture, so granite and bronze tend to show weathering less than black on sites with heavy sun or salt exposure.
9) Does the WAC 6702 bollard qualify for an Energy Star rebate program?
No. The Passage 6702 is not Energy Star rated. It is an 8.8W low-voltage LED landscape fixture, and decorative low-voltage landscape products generally fall outside that program, so build your submittal around the UL/cUL 1838 listing and the wattage rather than an Energy Star qualification.
10) Is the WAC 6702 a plug-in landscape light or does it get wired in?
It is a hardwired fixture. The 6702 comes with a 6ft lead wire and two gel-filled direct burial wire nuts for splicing into the low-voltage run; there is no cord or plug. That splice is the one to get right, since it is the part of a buried landscape run that fails first.
