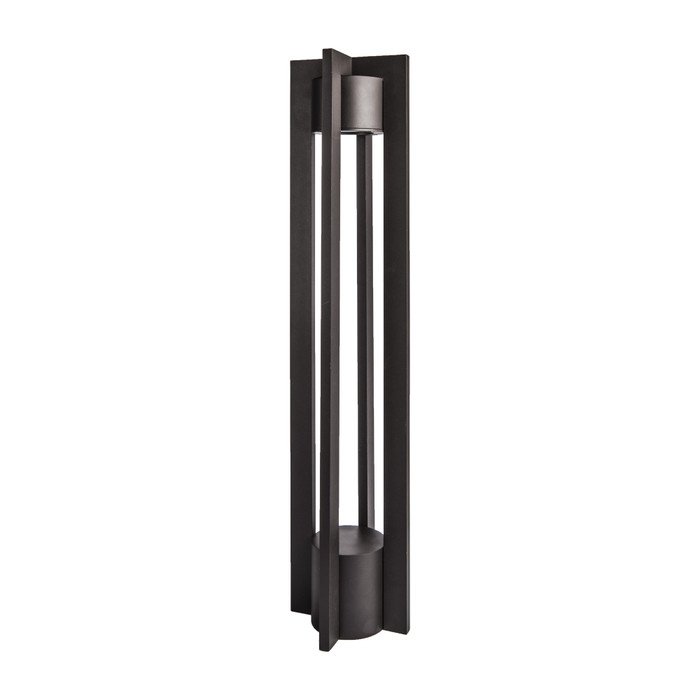

WAC Lighting Chamber LED Bollard Light, Cast Aluminum, IP66 Rated
The WAC Lighting Chamber LED Bollard Light brings a Mid-century modern inspired design to outdoor and landscape lighting, with an advanced integrated LED light engine sealed inside a solid casted K-alloy aluminum body for maintenance-free illumination. Factory sealed and water tight with an IP66 rating, this bollard resists high-pressure water jets and harsh outdoor elements, and is offered in 12V, 120V, or 277V configurations to match existing landscape lighting systems. The Chamber collection also includes matching wall sconces, pendants, and post lights, so this bollard can carry a consistent design theme throughout a project.
Key Features
- Durable Construction: Solid casted using a special K-alloy aluminum engineered to withstand the most challenging outdoor environments over time, available in a bronze or black finish.
- Weatherproof Sealing: Factory sealed and water tight with an IP66 rating for protection against high-pressure water jets and outdoor elements.
- Flexible Power Options: Available in 12V, 120V, or 277V options; a magnetic or electronic power supply is required (sold separately) for 12V fixtures.
- Smooth Dimming: Continuous dimming to 10% using a Magnetic Low Voltage Dimmer (12V only), Triac or ELV Dimmer (120V), or ELV Dimmer (277V).
- High-Powered LED Engine: Input 120V AC, Power 12.5W, Brightness up to 360 Lm, CRI 90, Rated Hours 60,000 for long-lasting, maintenance-free performance.
- Included Mounting Hardware: Ships with a guardian spike mounting accessory and a 3ft lead wire with two gel filled direct burial wire nuts; optional concrete pour kit (SKU# M66-CON-KIT) sold separately.
- Landscape Integration: Integrated LED taps conveniently into existing landscape lighting systems for a cohesive outdoor design.
Certifications & Compliance
- UL & cUL 1598 Listed
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - ACLED Module
- Bulb Shape: LED
- Bulbs Included: Yes
- Dimmable: ELV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Bollard Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Warranty: 5 Years Functional, 2 Years Finish
- Avg Rated Hours: 60000
- Beam Spread: Flood
- Voltage: 277
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 10.5
Typical Applications
- Landscape and Garden Path Lighting
- Perimeter and Driveway Illumination
- Wet-Location and Outdoor Installations
- Commercial and Residential Landscape Design
- New Construction and Landscape Renovation Projects
Why WAC Lighting?
WAC Lighting builds the Chamber LED Bollard Light from a special K-alloy cast aluminum engineered for long-term outdoor durability, backed by an IP66 water-tight seal and UL & cUL 1598 listing for reliable, code-compliant performance. With a factory-sealed integrated LED engine rated for 60,000 hours and a 5-year functional warranty, it delivers dependable, low-maintenance illumination for professional landscape lighting projects.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - ACLED Module
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Chamber
- Dimmable:
- ELV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Bollard Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Bollard Light
- Avg Rated Hours:
- 60000
- Beam Spread Angle:
- Flood
- Product Voltage:
- 277
- Product Material:
- K-Alloy Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 10.5
- Product Style:
- Modern
WAC Lighting 6633-27BK – Frequently Asked Questions
1) Can the WAC Chamber LED bollard run on an existing 12V landscape lighting system?
Yes. The Chamber bollard is offered in 12V, 120V, or 277V, and the 12V version taps into an existing low-voltage landscape run. Note that 12V fixtures need a magnetic or electronic power supply, which is not included. Pick the voltage that matches the system you already have in the ground; the fixture is hardwired, not plug-in.
2) What dimmer works with the Chamber bollard light?
It depends on voltage. On 12V use a Magnetic Low Voltage dimmer, on 120V a Triac or ELV dimmer, and on 277V an ELV dimmer. All three dim continuously down to 10 percent. Putting a standard incandescent dimmer on an ELV-rated LED driver is the usual cause of flicker and buzz, so match the dimmer to the voltage.
3) Is this bollard rated for direct exposure to sprinklers and driving rain?
Yes. The Chamber bollard is factory sealed and water tight at IP66, which covers high-pressure water jets, and it carries a wet location rating plus UL and cUL 1598 listing. Irrigation spray, driveway runoff, and coastal weather are within what it is built for.
4) What mounting hardware comes with the WAC Chamber bollard, and do I need anything else for a concrete base?
Each bollard ships with a guardian spike mount, a 3 ft lead wire, and two gel-filled direct burial wire nuts, which is everything needed to stake it into soil or a planting bed. For a concrete pour base you need the optional concrete pour kit, model M66-CON-KIT, ordered separately.
5) Can the LED be replaced in the Chamber bollard when it fails?
No. The LED engine is integrated and sealed inside the cast aluminum body, so there is no lamp to change. It is rated for 60,000 hours at 90 CRI, and when it reaches end of life the fixture is replaced rather than relamped. That sealed construction is what holds the IP66 rating.
6) What color temperature and finish combinations does the Chamber bollard come in?
Four combinations: 2700K or 3000K, each in black or bronze. 2700K reads warmer and tends to suit residential plantings and warm stone or brick; 3000K is slightly crisper and more common on commercial walkways. Both finishes are on the same K-alloy cast aluminum body, so they match the Chamber wall sconces, pendants, and post lights if you are carrying one look across a site.
7) How much light does this bollard put out and how wide does it spread?
Up to 360 lumens from a 12.5W LED engine at 120V input, through a frosted glass lens with a flood beam spread. That is a soft, wide wash suited to path edges, garden beds, and driveway perimeters rather than long-throw area lighting. For a parking lot or a large open court you want pole-mounted area fixtures instead.
8) Is the WAC Chamber bollard Energy Star certified for a utility rebate submission?
No, the Chamber bollard is not Energy Star listed. It is UL and cUL 1598 listed and IP66 rated, which is what most jurisdictions want for an exterior wet-location fixture, but if your rebate program requires Energy Star you will need a different product.
9) Will the bronze finish hold up on a coastal or high-traffic commercial site?
The body is solid cast K-alloy aluminum, a formulation WAC uses specifically for outdoor exposure, and the fixture is sealed at the factory rather than field-assembled. Bronze and black are both available on that same casting. Aluminum also means no rust bleed down a walkway the way a ferrous bollard can produce.
