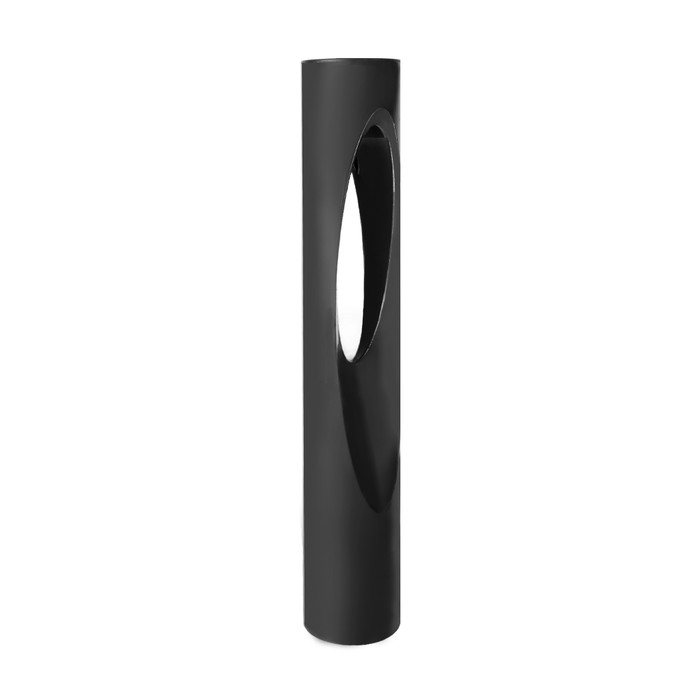

WAC Lighting Scoop LED Bollard Light, IP66 K-Alloy Aluminum, 277V
The WAC Lighting Scoop LED Bollard Light is a sleek linear bollard that blends into pathways and perimeters, washing outdoor darkness away with soft, even illumination. Factory sealed and water tight with an IP66 rating, this 277V fixture is cast from a special K-alloy aluminum engineered to withstand demanding environments over time. It carries UL & cUL 1598 listing for wet locations, delivering reliable nighttime visibility along walkways and building perimeters.
Key Features
- Durable Construction: Cast from a special K-alloy aluminum engineered to withstand the most challenging outdoor environments over time.
- Integrated LED Light Source: Bright, long-lasting integrated LEDs rated for up to 60,000 hours with a CRI of 90 for accurate, consistent color rendering.
- 277V Electrical Rating: Total wattage of 10.5W on 277V circuits, with smooth ELV dimming for flexible lighting control.
- Weatherproof Sealing: Factory sealed and water tight with an IP66 rating, protecting internal components from high-pressure water jets and outdoor elements.
- Guardian Spike Mounting: Includes a guardian spike mounting accessory for direct-bury installation (optional concrete pour kit sold separately).
- Direct Burial Wiring: Ships with a 3ft lead wire and two gel-filled direct burial wire nuts for a secure landscape connection.
- Beam Spread: Flood beam spread delivers broad, even path and perimeter illumination.
Certifications & Compliance
- UL Listed
- cUL Listed
- UL & cUL 1598 Standard
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - ACLED Module
- Bulb Shape: LED
- Bulbs Included: Yes
- Collection: Scoop
- Dimmable: ELV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Bollard Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Warranty: 5 Years Functional, 2 Years Finish
- Avg Rated Hours: 60000
- Beam Spread: Flood
- Voltage: 277
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 10.5
- Style: Modern
Typical Applications
- Landscape Pathway and Walkway Lighting
- Building and Property Perimeter Lighting
- Direct-Burial Outdoor Installations
- Wet-Location and Nighttime Safety Lighting
- Commercial and Residential Landscape Lighting Systems
Why WAC Lighting?
WAC Lighting builds the Scoop Bollard with a K-alloy aluminum housing, factory-sealed IP66 protection, and UL & cUL 1598 listing so it stands up to sustained outdoor exposure while delivering consistent, code-compliant illumination. The included guardian spike mount and direct burial wire nuts make installation straightforward for professional landscape and perimeter lighting projects.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - ACLED Module
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Scoop
- Dimmable:
- ELV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Bollard Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Bollard Light
- Avg Rated Hours:
- 60000
- Beam Spread Angle:
- Flood
- Product Voltage:
- 277
- Product Material:
- K-Alloy Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 10.5
- Product Style:
- Modern
- Department:
- Electrical
WAC Lighting 6613-27BK – Frequently Asked Questions
1) Can the WAC Scoop LED bollard run on a 120V landscape circuit?
No. The Scoop bollard covered here is the 277V version, drawing 10.5W on a 277V circuit. It is hardwired, not a plug-in or low-voltage landscape fixture, so it needs to land on a 277V branch circuit, typically the high-leg lighting circuit in a commercial 277/480V building. If your site runs 120V path lighting, this is the wrong voltage build.
2) Will this bollard hold up in sprinkler spray and direct rain?
Yes. The Scoop bollard is factory sealed to IP66 and carries a wet location rating, so sprinkler heads, driving rain, and pressure washing of nearby walks are all within what the housing is sealed against. It is UL and cUL listed to the 1598 standard for luminaires. Housing is K-alloy aluminum with a frosted glass lens.
3) Do I need a concrete base to install the Scoop bollard, or can I stake it?
It ships with a guardian spike mounting accessory for direct-bury installation, so a staked install in soil needs no extra hardware. If the spec calls for a concrete footing instead, the concrete pour kit is a separate purchase, not included.
4) What wiring comes with the Scoop bollard for a direct burial splice?
Each fixture ships with a 3ft lead wire and two gel-filled direct burial wire nuts, so the splice to the branch circuit can be made in the ground without a separate waterproofing kit. Any junction box, conduit, or feeder conductors are on you.
5) Is the WAC Scoop bollard dimmable, and what kind of dimmer does it take?
It dims on ELV (electronic low voltage) control. Pair it with an ELV-rated dimmer; standard incandescent/MLV dimmers or 0-10V controls will not drive it correctly. The LED module is integral, so there is no lamp to swap for a different dimming behavior.
6) Can the LED be replaced when it burns out, or is the whole bollard disposable?
The light source is an integrated ACLED module with the lamp included, rated for 60,000 hours average life. There is no serviceable socket or replaceable bulb, so maintenance planning should treat the fixture as a unit rather than a relampable head.
7) What color temperatures and finishes does the Scoop bollard come in?
Four builds: 2700K or 3000K color temperature, each in Black or Bronze. 2700K reads warmer and blends with residential and hospitality landscapes; 3000K is slightly crisper and is the more common commercial path-lighting choice. CRI is 90 on all of them, so planting and paving colors render consistently across a property.
8) Will one Scoop bollard light a wide walkway or do I need a tight spacing?
The Scoop throws a flood beam spread, which puts broad, even wash across a path rather than a narrow pool. That favors wider spacing along walks and perimeters than a spot-beam bollard would allow. At 10.5W per fixture, running a long path stays light on circuit load.
9) Does the WAC Scoop bollard qualify for Energy Star rebate programs?
No, the Scoop bollard is not Energy Star certified. If a utility rebate on your project is written specifically against Energy Star listing, this fixture will not satisfy it. It does carry UL and cUL listing to 1598 for the electrical inspection side.
10) Where can I get the photometric and dimensional data for the Scoop bollard?
WAC publishes a specification sheet for the Scoop collection with the full fixture data, hosted at https://zensupply.com/content/pdf/wac-lighting/specification-sheet-a43994.pdf. That is the document to attach when a lighting spec or submittal package needs the cut sheet.
