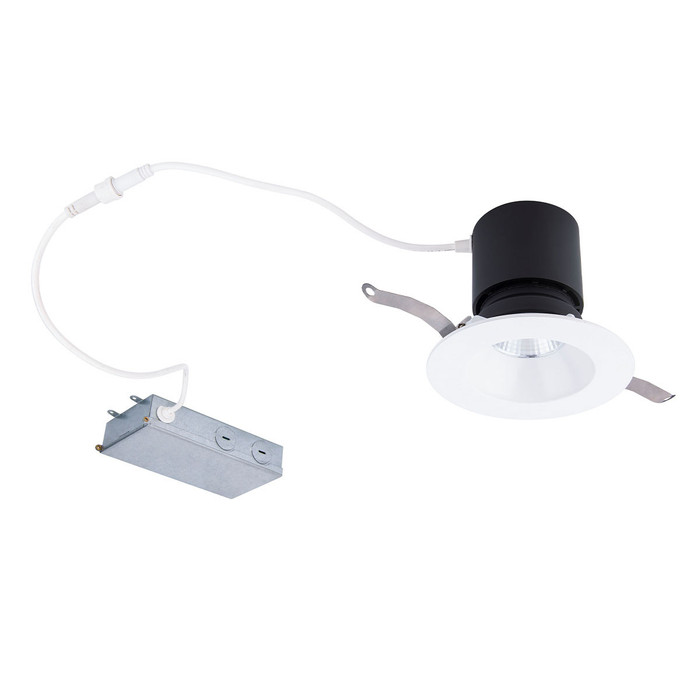

WAC Lighting Patriot 5CCT 3" RND Downlight Remodel

WAC Lighting Patriot 5CCT 3" Round Downlight Remodel

(No reviews yet) Write a Review

Model: R3HRDR-F9CS-WT
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.00
$117.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Patriot 3 inch Downlight and Adjustable Recessed

Patriot 5CCT 3" RND Downlight Remodel

Features

  • Delivered Lumens: Up to 1035lm
  • CBCP: 3095
  • 2700K/3000K/3500K/4000K/5000K
  • CRI: 90
  • Power: 12W
  • Input: 120-277 VAC, 50/60Hz
  • IC Rated, Airtight
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast Aluminum
  • 5-CCT Switchable between 2700K and 5000K
  • Twist-on trim with removable film to adjust beam angle
  • Silicon gasket on adjustable to prevent vision past ceiling level
  • Driver included

Manufacturer Resources:

Specification Sheet

Installation Guide

Manufacturer Resources

Product Specs

Product Group:
Indoor Lighting
Product Subgroup:
Accessories
Brand Family:
WAC Limited
Subcategory:
Ceiling Lighting
Segment:
Lighting
Product Category:
Lighting Accessories

WAC Lighting R3HRDR-F9CS-WT – Frequently Asked Questions

1) Can the WAC Patriot 3 inch round remodel downlight be installed in an existing ceiling without opening the drywall?
Yes, that is what the remodel version is built for. The R3HRDR-F9CS goes into an existing ceiling cutout, with the driver included so there is no separate remote transformer to find room for. It is IC rated and airtight, so it can sit in contact with insulation in a finished ceiling.
2) Do I have to order separate fixtures for 2700K and 4000K on the same job?
No. The Patriot 3 inch round downlight is 5-CCT switchable at the fixture between 2700K, 3000K, 3500K, 4000K and 5000K, so one part number covers warm residential spaces and cooler corridors or back-of-house. For a property manager standardizing across a building, that means a single SKU on the shelf instead of five.
3) Will this WAC Patriot downlight run on 277 volt commercial circuits?
Yes. Input is 120-277 VAC, 50/60Hz, so the same 12W fixture works on 120V residential branch circuits and on 277V commercial lighting circuits without a different model.
4) What dimmer type does the Patriot 3 inch LED downlight need?
It dims on either ELV or TRIAC dimmers, 100 percent down to 5 percent on both. A standard forward-phase TRIAC wall dimmer will work, so an existing incandescent dimmer leg can often stay in place. Confirm the dimmer's minimum load against the 12W draw per fixture if you are only driving one or two.
5) Can the beam angle be changed after the Patriot downlight is installed?
Yes. The trim twists on and carries a removable film that changes the beam angle, so you can adjust spread on site instead of ordering a different optic. Useful when the same fixture is going into both a hallway and a feature wall on one order.
6) What is the difference between the Patriot 3 inch downlight and the adjustable version?
The downlight aims straight down and is the right pick for even general illumination. The adjustable in the same Patriot 3 inch family tilts for accenting art, millwork or a wall wash, and carries a silicone gasket that blocks sightlines past ceiling level when it is aimed off-axis. If nothing needs aiming, the fixed downlight is the simpler install.
7) What finish does the WAC R3HRDR-F9CS 3 inch downlight come in?
White. The orderable part number is R3HRDR-F9CS-WT, and the housing is die-cast aluminum rather than stamped steel or plastic, which matters for heat dissipation in an airtight IC-rated application.
8) How long will these LED downlights last in a multi-family or hotel corridor?
Rated life is 50,000 hours. On a corridor running roughly 12 hours a day that is over 11 years of service, which is why MRO buyers spec this type in place of lamped trims that need relamping on a ladder.
