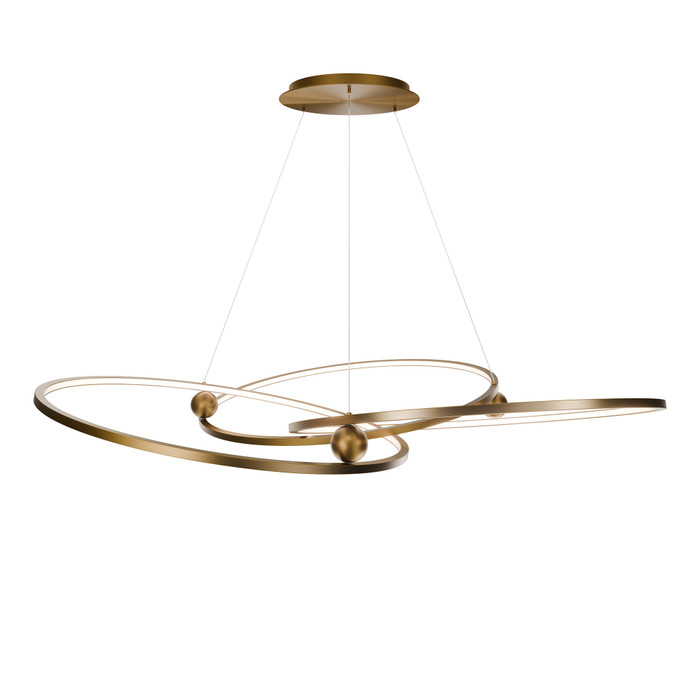

WAC Lighting PD4156 Sidewinder LED Chandelier
The WAC Lighting PD4156 Sidewinder LED Chandelier twists through space with sculptural elegance, its looping cable lines rippling with light for a bold, fluid statement piece. Built with an Aluminum frame and Silicone diffuser, it houses a high-powered replaceable LED engine rated at 3000K, 90 CRI, and 3146 lumens (37W total wattage). ETL & cETL listed for Damp locations and ADA Compliant, it is engineered for both residential and light-commercial ceilings.
Key Features
- Sculptural Cable Design: Sidewinder's looping, electrified cable eliminates clunky power wires while creating rhythmic, flowing lines of light.
- Durable Construction: Aluminum frame paired with a Silicone diffuser for a sleek, modern silhouette.
- Adjustable Installation: Height is simple to adjust through push-pin connectors on the canopy; sloped ceiling compatible.
- Universal Voltage Driver: Concealed backplate driver operates on 120V-220V-277V for flexible installation.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for continuous, flicker-free control.
- High-Powered Replaceable LED: 3000K color temperature, 90 CRI, 3146 lumens, 37W total wattage, and 50000 rated hours.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- ADA Compliant
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 3146
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Chandelier
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: Philippines
- Total Wattage: 37
- Style: Modern;Transitional
Typical Applications
- Dining Rooms and Kitchen Islands
- Living Rooms and Great Rooms
- Entryways, Foyers, and Stairwells
- Damp-Location Indoor Spaces
- Hospitality and Commercial Interiors
Why WAC Lighting?
WAC Lighting backs the Sidewinder chandelier with a 5-year functional and 2-year finish warranty, an ETL & cETL Damp Location listing, and a replaceable high-powered LED engine rated for 50000 hours. The Aluminum frame and Silicone diffuser deliver a durable, sculptural fixture built for reliable, code-compliant performance in residential and commercial spaces alike.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Sidewinder
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3146
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Silicone Diffuser
- Subcategory:
- Chandelier
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 37
- Light Temperature:
- 3000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD415660-TWA-BK – Frequently Asked Questions
1) Can the WAC Sidewinder PD4156 chandelier be installed on a sloped ceiling?
Yes. The Sidewinder PD4156 is a ceiling-mounted hardwired chandelier and is sloped ceiling compatible, with hanging height set by push-pin connectors at the canopy. That means the installer adjusts drop on site rather than cutting stems or ordering a different length.
2) Will the Sidewinder LED chandelier run on 277V commercial power?
Yes. The driver is universal voltage, rated 120-240-277V, and it is concealed in the backplate. The same fixture can go on a 120V residential circuit or a 277V commercial lighting branch with no separate transformer or alternate part number.
3) What dimmer works with the WAC PD4156 Sidewinder chandelier?
Use an electronic low voltage (ELV) or TRIAC dimmer. A standard incandescent/magnetic-only dimmer is not the right control for this fixture. The LED engine is 37W total, so verify your dimmer's LED load rating covers it.
4) Can I put the Sidewinder chandelier in a bathroom or a covered porch?
The Sidewinder carries a Damp location rating, ETL and cETL listed. Damp covers indoor spaces with humidity, such as a bathroom away from direct spray, or a covered, protected soffit area. It is not wet-rated, so do not install it where it will take direct rain or hose-down.
5) Does the WAC Sidewinder chandelier meet California Title 24 for a dining room?
Yes. The Sidewinder is listed as CEC and Title 24 compliant, and Title 20 compliant. It is not Energy Star qualified, so if your spec or utility rebate specifically requires Energy Star, this fixture will not satisfy that line item.
6) Does the LED in the WAC Sidewinder chandelier have to be replaced as a whole fixture when it fails?
No. The Sidewinder uses a replaceable high-powered LED engine rather than a sealed board, and the module ships with the fixture. Rated life is 50,000 hours. For a property manager standardizing on fixtures, that means a lamp-level service call instead of a fixture swap.
7) Is 3146 lumens enough light for a dining table or kitchen island?
3146 lumens at 37W with a flood distribution is in the range normally used as the primary light over a dining table or island. Color is 3000K warm white at 90 CRI, which renders food and finishes accurately, so it layers well with 3000K recessed cans in the same room.
8) Is the Sidewinder chandelier ADA compliant for a hospitality corridor?
The fixture is listed as ADA compliant. Keep in mind it is a suspended ceiling chandelier, so in a corridor or stairwell the governing concern is mounting height clearance under the fixture, which the installer sets using the canopy push-pin adjustment.
9) Do I need a junction box and separate driver to install the WAC Sidewinder?
It is a hardwired ceiling fixture, so it needs a supported outlet box at the ceiling. No external driver or remote power supply is needed, the universal 120-240-277V driver is concealed in the backplate, and the LED module ships installed. Mounting and height-setting steps are in WAC's installation guide: https://zensupply.com/content/pdf/wac-lighting/installation-guide-c2027b.pdf
10) What finishes does the PD4156 Sidewinder chandelier come in?
Two: Aged Brass and Black. The frame is aluminum with a silicone diffuser, so the finish is applied to the metal cable and canopy hardware. If you are matching other fixtures in the same room, pick the finish on the metalwork, not the diffuser.
