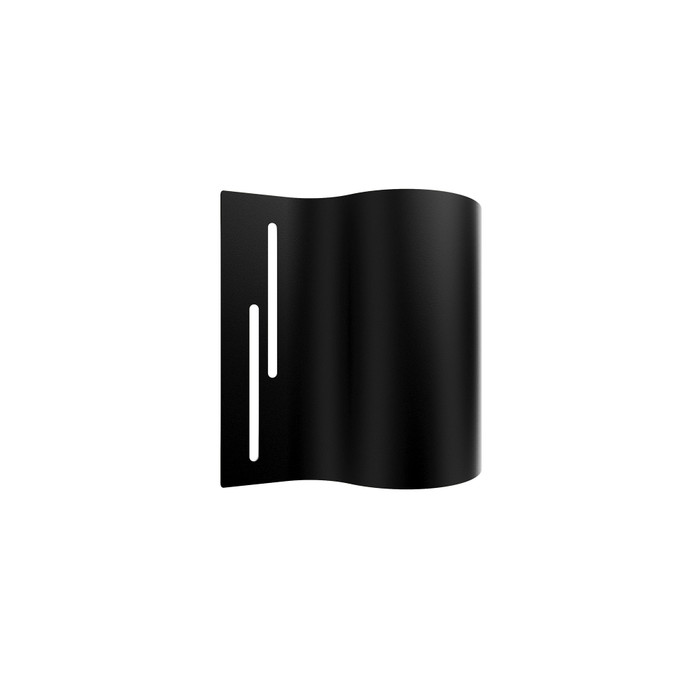

WAC Lighting WSW1116 Swivet 4-CCT LED Outdoor Wall Light
The WAC Lighting WSW1116 Swivet turns exterior illumination into an architectural gesture, with an offset cylinder that rotates slightly within a rectangular frame for dynamic contrast between structure and glow. Built with Aluminum construction and a PC diffuser, this outdoor wall light delivers switchable 2700K/3000K/3500K/4000K color temperature and runs on a Universal Voltage driver (120V-220V-277V) concealed in the backplate. Rated for Wet locations and ETL & cETL listed, it pairs sculptural, contemporary styling with dependable, code-compliant performance.
Key Features
- Durable Construction: Aluminum housing with a PC diffuser for a clean, contemporary profile built for exterior use.
- 4-CCT Color Temperature: Built-in adjustability across 2700K/3000K/3500K/4000K, with the option to pre-select a color temperature or adjust it in the field.
- Universal Voltage Driver: 120V-220V-277V driver concealed in the backplate simplifies specification across varied electrical systems.
- Smooth Dimming: Continuous dimming compatible with electronic low voltage (ELV) or TRIAC dimmers.
- High-Powered Replaceable LED: CRI 90 output with a Rated Hours of 50000 for long-term, high-quality light.
- Wet Location Rated: Suitable for exterior wall mounting in Wet-location environments.
Certifications & Compliance
- ETL & cETL Listed for Wet Locations
- ADA Compliant
- CEC and Title 24 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Outdoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Outdoor Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Location Rating: Wet
- Style: Modern;Transitional
- Mounting: Wall;Any
Typical Applications
- Outdoor Wall-Mounted Accent Lighting
- Residential Entryways and Patios
- Commercial Building Facades
- Wet-Location and Exterior Installations
- ADA-Compliant Public Spaces
Why WAC Lighting?
WAC Lighting builds the Swivet WSW1116 with Aluminum construction, a replaceable high-powered LED engine rated at CRI 90 and 50000 hours, and a concealed Universal Voltage driver for flexible, code-compliant installation. Backed by ETL & cETL Wet-location listing and ADA, CEC, and Title 24 compliance, it delivers sculptural exterior lighting professionals can specify with confidence.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Swivet
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Outdoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- PC Diffuser
- Subcategory:
- Outdoor Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Wall;Any
- Department:
- Electrical
WAC Lighting WSW111608-BK – Frequently Asked Questions
1) Will the WAC Lighting WSW1116 Swivet wall light run on 277V commercial power?
Yes. The Swivet WSW1116 uses a universal voltage driver rated 120V, 240V and 277V, so the same fixture works on residential 120V and on 277V lighting branch circuits in commercial buildings. The driver sits concealed in the backplate, so there is no remote driver to find a home for. It is a hardwired fixture, not a plug-in.
2) Can I set the color temperature on the WSW1116 Swivet in the field, or do I order a fixed CCT?
Field selectable. The Swivet WSW1116 is a 4-CCT fixture covering 2700K, 3000K, 3500K and 4000K, and you either pre-select the temperature or change it at install. That matters on a multi-building job: one part number covers a warm 2700K residential entry and a 4000K facade without stocking four SKUs. Color rendering is CRI 90 at every setting.
3) Does the Swivet WSW1116 meet ADA requirements for a corridor or entry wall?
The WSW1116 is listed as ADA compliant, which is what you need where a wall fixture sits in a path of travel and projection is limited. It is also CEC and Title 24 compliant, so it clears California energy code review.
4) What dimmers work with the WAC Swivet WSW1116 outdoor LED wall light?
Use an electronic low voltage (ELV) or TRIAC dimmer. The LED driver dims continuously on those two types. Standard incandescent/magnetic low voltage dimmers are not the right control here, so if you are reusing an existing switch leg plan on swapping the dimmer to an ELV or TRIAC model.
5) What is the difference between the 8 and 12 size on the WAC Swivet WSW1116?
The Swivet WSW1116 comes in two sizes, 8 and 12, with the larger one giving a longer rectangular frame and more presence on a wide facade or a tall entry. Both share the same aluminum build, 4-CCT LED engine, universal voltage driver and Wet location listing, so the choice is scale and spacing, not performance or wiring.
6) When the LED eventually fails on this Swivet fixture, does the whole light get replaced?
No. The Swivet WSW1116 uses a replaceable high-powered LED module rather than a sealed board, so the light engine can be changed out instead of pulling the fixture. Rated life is 50,000 hours, and lamping ships with the fixture.
7) Is the Swivet an accent light or does it actually light a walkway?
Its distribution is flood, so it washes the wall surface and spills usable light onto the area below rather than throwing a tight spot. The offset cylinder rotates within the frame, which lets you aim the glow once it is up. For entries, patios and building facades that works; for a narrow beam on a single architectural feature you want a spot-distribution fixture instead.
8) Can the WSW1116 Swivet be mounted facing up or down, or only one orientation?
Mounting is wall, any orientation, so the backplate can go up, down or sideways depending on whether you want the glow thrown toward the soffit or down the wall. Wiring is hardwired into the backplate, which also houses the driver, so you only need a standard outdoor junction box behind it.
9) Is the WAC Swivet WSW1116 Energy Star certified?
No, the WSW1116 is not Energy Star listed. It does carry CEC and Title 24 compliance, which is the approval that usually matters for California permit review, plus ETL and cETL Wet location listing. If your rebate program specifically requires an Energy Star fixture, this is not the one.
