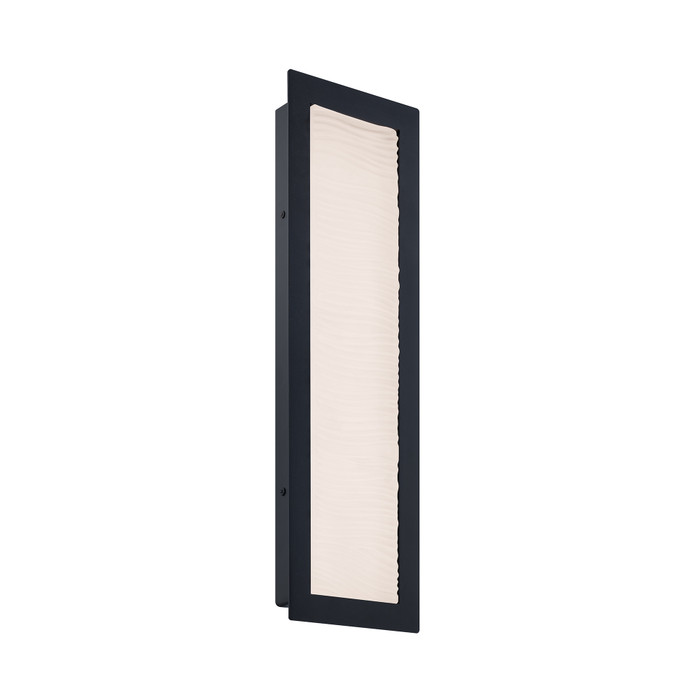

WAC Lighting WS-W385 Wavelet 4-CCT LED Outdoor Wall Light
The WAC Lighting WS-W385 Wavelet 4-CCT LED Outdoor Wall Light pairs wavy patterned glass with a clean rectangular Aluminum frame to deliver warm illumination into the night. Built with a factory sealed light engine and a weather resistant powder coated finish, this fixture is ETL & cETL listed for Wet locations and ADA Compliant. Built-in color temperature adjustability lets you switch between 2700K, 3000K, 3500K, and 4000K, with 800 lumens of output at 90 CRI, making it a versatile choice for exterior walls, entryways, and patios.
Key Features
- Selectable Color Temperature: Switch between 2700K/3000K/3500K/4000K, with the option to pre-select color temperature or adjust it in the field.
- Durable Construction: Aluminum hardware with a weather resistant powder coated finish and a factory sealed light engine for maximum protection from the elements.
- Universal Voltage Driver: 120V-220V-277V driver is concealed in the backplate; a decorative conversion plate to accommodate a standard 4" junction box is included.
- Smooth Dimming: Continuous dimming performance with electronic low voltage (ELV) or TRIAC dimming.
- High Powered LED Module: Replaceable LED module rated at CRI 90 with 50,000 rated hours and selectable CCT color temperature of 2700-3000-3500-4000K.
- Light Output: Delivers 800 lumens at 14W total wattage for efficient exterior illumination.
Certifications & Compliance
- ETL Listed
- cETL Listed for Wet Locations
- ADA Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Wavelet
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 800
- Product Type: Outdoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Outdoor Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 14
- Style: Contemporary
- Mounting: Wall
Typical Applications
- Exterior Entryways and Porches
- Patios and Outdoor Living Spaces
- Wet-Location Exterior Wall Mounting
- Commercial and Residential Building Exteriors
- ADA-Compliant Lighting Installations
Why WAC Lighting?
WAC Lighting builds the Wavelet WS-W385 with Aluminum hardware, a weather resistant powder coated finish, and a factory sealed light engine to withstand outdoor conditions. Backed by ETL & cETL Wet location listing, ADA compliance, and a 5 Year Functional / 2 Year Finish warranty, it delivers dependable, code-compliant performance for professional exterior lighting projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Wavelet
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 800
- Product Type:
- Outdoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Subcategory:
- Outdoor Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 14
- Product Style:
- Contemporary
- Mounting Method:
- Wall
- Department:
- Electrical
WAC Lighting WS-W38520-27-BK – Frequently Asked Questions
1) Can the WAC Wavelet WS-W385 outdoor wall light be used on a 277V commercial circuit?
Yes. The Wavelet WS-W385 ships with a universal driver rated 120V, 240V and 277V, so the same fixture works on residential 120V and on 277V lighting branch circuits in commercial buildings. The driver is concealed in the backplate, so nothing extra mounts in the box. It is hardwired, not plug-in.
2) Will the Wavelet WS-W385 mount to an existing 4 inch junction box?
It will. A decorative conversion plate for a standard 4 inch junction box is included with the fixture, so if you are replacing an older sconce over a round or square 4 inch box the cover is already in the carton. Mounting is wall only.
3) Is the WS-W385 Wavelet rated for a wall that gets rained on directly?
Yes, it carries a Wet location rating and is ETL and cETL listed, so direct exposure to rain on an open exterior wall, porch face, or unroofed patio wall is within rating. The light engine is factory sealed and the aluminum body has a weather resistant powder coated finish.
4) I need ADA compliant sconces for a corridor exterior at a healthcare facility. Does this one qualify?
The Wavelet WS-W385 is listed as ADA Compliant, which is why it uses a shallow rectangular wall form rather than a projecting lantern. Combined with the Wet rating and the 120/240/277V driver, it suits ADA-restricted exterior paths of travel on institutional buildings.
5) Do I have to pick the color temperature when I order the Wavelet WS-W385?
You can either way. The fixture is a 4-CCT selectable unit covering 2700K, 3000K, 3500K and 4000K, and it is offered pre-selected at each of those four settings, or you can set it in the field. For a property manager matching existing sconces on other buildings, 3000K is the common warm white and 4000K is the cooler, more commercial look.
6) What dimmer works with the WS-W385, and will it dim all the way down?
Use an electronic low voltage (ELV) or TRIAC dimmer. On either, the Wavelet gives continuous dimming. A standard incandescent-only or 0-10V control is the wrong pairing here, so spec the ELV/TRIAC type on the drawing.
7) How much light does the Wavelet WS-W385 actually put out, and is it enough for an entry door?
800 lumens from a 14W LED module, with a flood distribution, so the light spreads across the wall and the landing rather than throwing a tight beam. That output is typical for a single entry-door sconce; for a long patio wall or a wide garage face, plan on more than one fixture.
8) Does anything need to be replaced in the Wavelet WS-W385 over time, or is the LED sealed in for good?
The LED module is replaceable and rated for 50,000 hours, so the fixture is not a throwaway when the source eventually fades. Lamps are included, so nothing separate gets ordered at install. The module runs at 90 CRI, which is high enough that finishes and signage read true at a building entry.
9) Is the Wavelet WS-W385 Energy Star certified for a utility rebate submission?
No. The Wavelet WS-W385 is not Energy Star listed. If a rebate program on your project requires Energy Star qualification, this fixture will not satisfy that line item, even though it is an efficient 14W LED at 800 lumens.
10) Is there an installation guide for the WAC Wavelet outdoor wall light?
Yes, WAC publishes an installation guide for the Wavelet, available at https://zensupply.com/content/pdf/wac-lighting/installation-guide-8ad87d.pdf. Worth pulling before rough-in since the fixture is hardwired and the driver sits inside the backplate.
