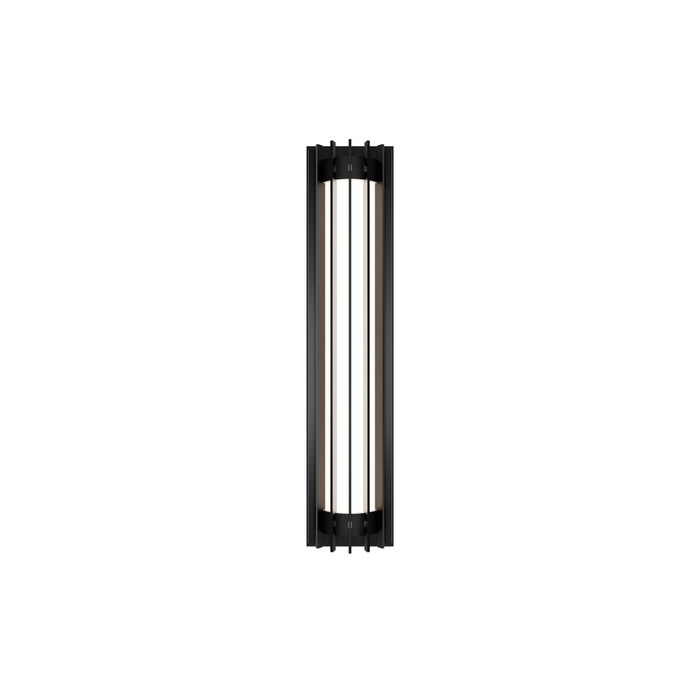

WAC Lighting WS-W175 Moline 4-CCT LED Outdoor Wall Light
The WAC Lighting WS-W175 Moline is a 4-CCT LED outdoor wall light engineered for sophisticated exterior illumination. Aluminum hardware and a weather-resistant powder coated finish stand up to the elements, while a factory-sealed light engine and silk-screened bent glass diffuser deliver a commanding presence with ETL & cETL wet-location listing. Field-selectable 2700K/3000K/3500K/4000K color temperature and AC LED technology give installers flexibility without a separate driver or transformer.
Key Features
- Durable Construction: Aluminum hardware with a weather-resistant powder coated finish for long-term exterior durability.
- Selectable Color Temperature: Built-in CCT adjustability across 2700K/3000K/3500K/4000K, pre-selectable at install or adjustable in the field.
- AC LED Technology: No driver or transformer required; the fixture fits easily on a standard pancake junction box.
- Smooth Continuous Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimming for flicker-free control.
- High-Powered LED Module: Replaceable module rated CRI 90 with 50,000 rated hours and selectable CCT color temperature.
- Factory-Sealed Light Engine: Protects internal components from moisture and outdoor elements.
- Silk-Screened Bent Glass Diffuser: Banded diffuser shapes the light output for a commanding exterior presence.
Certifications & Compliance
- ETL & cETL Listed for Wet Locations
- ADA Compliant
- CEC and Title 24 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - ACLED
- Bulbs Included: Yes
- Collection: Moline
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Outdoor Wall Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Silk-screened Bent Glass
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Outdoor Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: China
- Location Rating: Wet
- Style: Contemporary
- Mounting: Wall;Any
Typical Applications
- Exterior Wall-Mounted Lighting
- Entryways, Porches, and Patios
- Commercial and Residential Building Exteriors
- Wet-Location and Outdoor Installations
Why WAC Lighting?
WAC Lighting builds the Moline WS-W175 with aluminum hardware, a weather-resistant powder coated finish, and a factory-sealed light engine for reliable, code-compliant performance outdoors. Backed by ETL & cETL wet-location listing, ADA compliance, and a 5-year functional/2-year finish warranty, it delivers dependable exterior lighting for professional installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - ACLED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Moline
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Outdoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Silk-screened Bent Glass
- Subcategory:
- Outdoor Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Product Style:
- Contemporary
- Mounting Method:
- Wall;Any
WAC Lighting WS-W17524-27-BK – Frequently Asked Questions
1) Does the WAC Moline WS-W175 outdoor wall light need a separate LED driver or transformer?
No. The Moline WS-W175 uses AC LED technology, so it runs directly on 120V line voltage with no remote driver or transformer in the circuit. That is why it mounts on a standard pancake junction box instead of needing a space for driver housing behind the wall.
2) Can the WS-W175 Moline be installed on an exposed exterior wall that gets rained on?
Yes. The Moline WS-W175 is ETL and cETL Listed for wet locations, with a factory-sealed light engine, aluminum hardware and a weather-resistant powder coated finish. Wet location is the rating you need for a fully exposed wall, not just a covered porch soffit.
3) Do I have to order a specific color temperature for the Moline WS-W175, or can I change it on site?
Both. The Moline is a 4-CCT fixture covering 2700K, 3000K, 3500K and 4000K, pre-selectable at install or adjustable in the field. Orders are placed against a CCT choice (2700K, 3000K, 3500K or 4000K) in either the 24 or 32 size, so pick the setting your spec calls for and change it later if the job changes.
4) What dimmer works with the WAC Moline WS-W175 LED wall light?
Use an electronic low voltage (ELV) or TRIAC dimmer. The fixture is rated for both and dims smoothly without flicker. Do not pair it with a 0-10V control, that is not a listed dimming method for this fixture.
5) Is the Moline WS-W175 wall sconce ADA compliant for a commercial corridor or building entry?
Yes, the Moline WS-W175 is listed ADA compliant, which is what a spec typically requires for a wall-mounted fixture in an accessible route. It is also CEC and Title 24 compliant for California work.
6) What size options does the Moline WS-W175 come in, and does the CCT choice limit the size?
Two sizes, 24 and 32, and both are offered across the full set of color temperatures: 2700K, 3000K, 3500K and 4000K. So a facility standardizing on 3000K can run the smaller fixture at secondary doors and the larger one at the main entry without changing the light color.
7) Does the WS-W175 take a replaceable bulb, or is the LED built in?
It ships with a high-powered AC LED module already installed, rated 50,000 hours, and the module is replaceable rather than throwaway. There is no screw-base lamp to source, so maintenance stock is the module, not a bulb.
8) Is the WAC Moline WS-W175 hardwired, and can it be mounted in any orientation?
Hardwired only, 120V, with no plug or cord option. Mounting is wall, and the fixture is listed for any orientation, so it can go up or down on the box. WAC publishes an installation guide for the fixture at zensupply.com/content/pdf/wac-lighting/installation-guide-2e202e.pdf.
9) Will the Moline wall light render exterior finishes and signage accurately?
CRI 90 on the Moline, which is high enough for hospitality and retail entries where brick, stone and paint color need to read true. Output is a flood distribution through a silk-screened bent glass diffuser, so it washes the wall rather than throwing a tight beam.
10) Is the Moline WS-W175 Energy Star certified?
No, the Moline WS-W175 is not Energy Star listed. It does carry CEC and Title 24 compliance, so if your rebate or code path depends specifically on Energy Star rather than Title 24, this fixture will not satisfy it.
