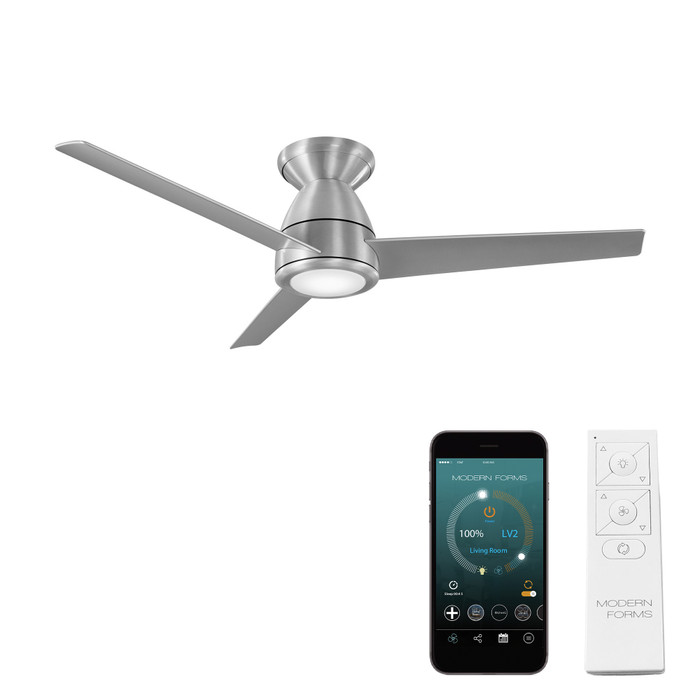

Modern Forms FH-W2004 Tip Top 3-Blade Flush Mount Ceiling Fan, Wet Rated Aluminum
The Modern Forms Tip Top flush mount ceiling fan (FH-W2004) blends classic lines with a modern, wet rated aluminum build that performs equally well on a sun-facing porch or in a stylish living room. This 3-blade fan features a 44" blade span, a silent reversible DC motor, and an integrated 1100-lumen dimmable LED luminaire, and it is UL, cUL, CSA, ETL, and cETL Wet Location Listed for indoor or outdoor use. Seamless Modern Forms app and Bluetooth connectivity bring voice control, breeze mode, and adaptive learning to a fixture sized for 7-10ft ceiling heights.
Key Features
- Blade Configuration: 3 ABS blades with a 44" blade span, 18.24" blade length, and a 14-degree pitch in a Brushed Aluminum finish for balanced, efficient airflow.
- Wet Rated Aluminum Construction: Durable aluminum housing is rated for wet locations, suitable for covered outdoor spaces and indoor rooms with 7-10ft ceilings.
- Silent DC Motor: Reversible DC motor drives up to 4313 CFM airflow across 6 speeds and runs up to 70% more efficiently than a traditional AC motor, with every unit factory-balanced and sound tested.
- Smart Home Ready: Free Modern Forms app and included battery-operated Bluetooth remote (wall cradle included) enable voice control through Google Assistant, Amazon Alexa, Samsung SmartThings, Control4, and Josh AI, with Savant and Lutron Homeworks coming soon.
- Optional Wall Control: Supports an optional Bluetooth hardwired wall control (sold separately) that can be configured for 3- or 4-way switching, plus control from an Android or iOS wall-mounted tablet over Wi-Fi.
- Integrated LED Luminaire: Replaceable LED module delivers 1100 lumens at 90 CRI with smooth, continuous dimmable brightness control and 47W total wattage.
Certifications & Compliance
- UL Listed
- cUL Listed
- CSA Certified
- ETL and cETL Wet Location Listed for indoor or outdoor applications
- ENERGY STAR Qualified
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module
- Dimmable: Yes
- Energy Star: Yes
- Lumens: 1100
- Safety Rating: ETL, cETL, UL, cUL, CSA
- Warranty: 5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.
- Subcategory: Indoor or Outdoor Flush mount Smart Home Ceiling Fan
- Avg Rated Hours: 50000
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: Taiwan
- Location Rating: Wet
- Total Wattage: 47
- Style: Contemporary
- Blade Span: 44"
- Number of Blades: 3
- Blade Length: 18.24"
- Blade Material: ABS
- Blade Finish: Brushed Aluminum
- Blade Pitch: 14 degrees
- Motor Type: DC
- Reversible Motor: Yes
- Fan Speeds: 6
- Airflow CFM: 4313
- Remote Included: Yes
- Wall Control Included: No
Typical Applications
- Covered Porches and Outdoor Living Spaces
- Living Rooms and Bedrooms with 7-10ft Ceilings
- Wet-Location Indoor or Outdoor Installations
- Smart Home and Voice-Controlled Fan Retrofits
- New Construction and Ceiling Fan Renovations
Why Modern Forms?
Modern Forms fans pair wet rated aluminum construction with a silent, reversible DC motor that is factory-balanced and sound tested so the Tip Top never wobbles, rattles, or clicks. Backed by UL, cUL, CSA, ETL, and cETL Wet Location Listing along with a 5-year LED module warranty, 2-year finish warranty, and lifetime motor warranty, it delivers dependable, code-compliant performance for both indoor and outdoor smart home installations.
Manufacturer Resources
Specification Sheet
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module
- Collection:
- Tip Top
- Dimmable:
- Yes
- Energy Star:
- Yes
- Lumens:
- 1100
- Product Type:
- Flush Mount Ceiling Fans
- Safety Rating:
- ETL, cETL, UL, cUL, CSA
- Subcategory:
- Indoor or Outdoor Flush mount Smart Home Ceiling Fan
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread:
- Flood
- Voltage:
- 120
- Location Rating:
- Wet
- Total Wattage:
- 47
- Style:
- Contemporary
- Blade Span:
- 44"
- Number of Blades:
- 3
- Blade Length:
- 18.24"
- Blade Material:
- ABS
- Blade Finish:
- Brushed Aluminum
- Blade Pitch:
- 14 degrees
- Motor Type:
- DC
- Reversible Motor:
- Yes
- Fan Speeds:
- 6
- Airflow CFM:
- 4313
- Remote Included:
- Yes
- Wall Control Included:
- No
Modern Forms FH-W2004-44L-BA – Frequently Asked Questions
1) Can the Modern Forms Tip Top fan be installed on a covered porch or other outdoor location?
Yes. The Tip Top (FH-W2004) is Wet Location rated, with ETL, cETL, UL, cUL and CSA safety listings, so it can go on a covered porch, a patio ceiling, or an indoor space exposed to moisture. The housing and blade finish are aluminum and ABS, which is what lets it carry the wet rating rather than the more limited damp rating many indoor fans have.
2) Is the Tip Top fan a flush mount, and will it work on an 8 foot ceiling?
It is a flush mount fan, mounted tight to the ceiling with no downrod, and it is sized for ceilings from 7 to 10 feet. That makes it the right choice where a downrod fan would drop the blades below the 7 foot clearance most jurisdictions want under a fan. On ceilings taller than 10 feet you are better off with a downrod model so the air actually reaches the floor.
3) What blade spans does the Modern Forms Tip Top come in?
Two sizes: a 44 inch span (FH-W2004-44) and a 52 inch span (FH-W2004-52). The 44 inch runs 3 ABS blades at 18.24 inches each with a 14 degree pitch. For a bedroom or a small covered porch the 44 is usually enough; for a great room or a wide outdoor living space the 52 moves air further out from center.
4) Do I need to order a wall control with the Tip Top ceiling fan?
No wall control ships with it. What comes in the box is a battery-operated Bluetooth handheld remote plus a wall cradle, and that runs everything. If you want a hardwired switch at the opening, Modern Forms offers an optional Bluetooth hardwired wall control sold separately that can be set up for 3-way or 4-way switching. Spec that separately on the order if the job calls for a fixed control.
5) How do I pick the color temperature on the Modern Forms Tip Top?
Color temperature is fixed at the model you order, in 2700K, 3000K or 3500K. 2700K is the warm, lamp-like tone most residential porches and bedrooms use; 3500K reads cleaner and pairs better with commercial or contemporary interiors. All three put out 1100 lumens at 90 CRI and dim smoothly. If you are matching other fixtures in a building, order the temperature that matches what is already installed, because it cannot be changed later at the fixture.
6) Will the Tip Top fan work with Alexa or Google Home, and does it need a hub?
It pairs over Bluetooth to the free Modern Forms app, and from there works with Google Assistant, Amazon Alexa, Samsung SmartThings, Control4 and Josh AI, with Savant and Lutron Homeworks listed as coming soon. No separate fan hub is needed. You can also control it from an Android or iOS wall-mounted tablet over Wi-Fi, which is a common approach in short-term rentals where you do not want guests handling a remote.
7) How much air does the Modern Forms Tip Top move, and does it reverse for winter?
Up to 4313 CFM across 6 speeds, and the DC motor is reversible, so you can run it in reverse to push warm air back down in heating season. Six speed steps give you finer low-end control than the usual three-speed AC fan, which matters in a bedroom where the lowest AC speed is often still too much.
8) Can the light bulb be changed on the Tip Top fan, or is the LED sealed in?
The light is an integrated LED module rather than a socketed bulb, but the module itself is replaceable, so a failed light does not mean replacing the fan. It is rated at 50,000 average hours, 1100 lumens, 90 CRI, with a flood distribution. There is no screw-in lamp to stock for it.
9) Is the Tip Top ceiling fan ENERGY STAR qualified for a rebate or green building spec?
Yes, it is ENERGY STAR qualified, which is what utility rebate programs and a number of sustainable building specs look for. Note that it is not ADA compliant, so if your project has an ADA requirement on the fixture, this is not the one.
10) Which finishes does the Tip Top ceiling fan come in?
Three: Brushed Aluminum, Matte Black and Matte White, and each is available in all three color temperatures in both the 44 and 52 inch sizes. For a fleet standardizing across units, Matte White disappears against most ceilings while Matte Black holds up visually on a darker porch ceiling.
