WAC Smart Fan Aella 22' - 3 Bl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$468.00
$399.95

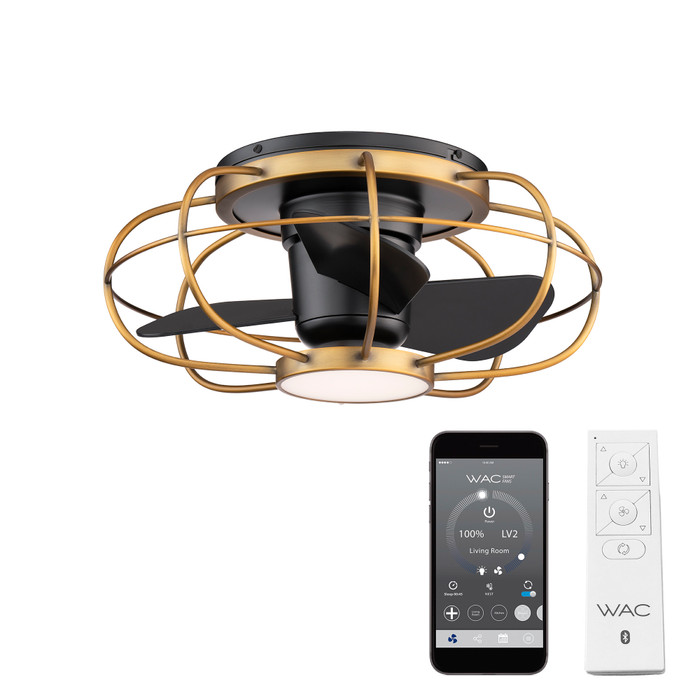

WAC Smart Fan Aella 22' - 3 Blade LED Smart Caged Flush Mount Ceiling Fan

WAC Smart Fan Aella 22' - 3 Blade LED Smart Caged Flush Mount Ceiling Fan

(No reviews yet) Write a Review

Model: F-096L-MB
From the Aella Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$468.00
$399.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-21718 Mini Vogue LED Bathroom Vanity or Wall Light

This minimalist design adapts to almost any decor scheme, from urban industrial to everyday transitional, with its slim, linear form and versatile finishes-now including black. What else is new? A more compact version for smaller spaces arrives at one-foot long, perfect for baths, foyers and hallways. Available in brushed nickel and chrome as well.
  • Die-cast aluminum end caps, aluminum back plate, and a co-extruded white optical acrylic diffuser.
  • Can be mounted vertically or horizontally. Backplate can be adjusted along the fixture for off center junction box installation or to convert to a wall sconce.
  • Universal Input Voltage Driver (120V-240V-277V) located in 2in junction box. Conversion plate included for 4in junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 2700K, 3000K, and 3500K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

Blade Length:
9"
Blade Material:
ABS
Blade Span:
22"
Bulb Base:
Integrated LED
Canopy Diameter:
12.25"
Cap Included:
No
Collection:
Aella
Dimmable:
Yes
Light Direction:
Down
Light Kit Adaptable:
Yes
Light Kit Included:
Yes
Lumens:
1200
Motor Type:
DC
Number of Blades:
3
Product Type:
Ceiling Fan
Remote Included:
Yes
Reversible Blades:
Yes
Reversible Motor:
Yes
Speeds:
6
Product Group:
Indoor Lighting
Product Subgroup:
Ceiling Fans
ADA Compliant:
Yes
Avg Rated Hours:
50000
Base Material:
Steel
Location Rating:
Wet
Number of Bulbs:
1
Product Subtype:
Indoor or Outdoor Smart Home Caged Ceiling Fan
Brand Family:
WAC Fans
Energy Star:
No
Title 20:
Yes
Wire Length:
8"
Subcategory:
Flush Mount Ceiling Fans
Certification:
cUL,UL cUL/UL, ES
Glass Finish:
Frosted PC
Location Indoor/ Outdoor:
Indoor/Outdoor
Sloped Ceiling Compatible:
No
Title 24 Compliant:
Yes
Bulb Type:
Integrated LED
Segment:
Lighting
Product Voltage:
120V
Light Temperature:
3000K
Product Style:
Transitional
Product Height:
9.6"
Product Category:
Ceiling Fans
Product Wattage:
30W

WAC Lighting F-096L-MB – Frequently Asked Questions

1) Can the WAC Aella 22 inch caged fan be installed on a covered patio or in a bathroom?
Wet location rated, so the Aella works outdoors under a covered porch or lanai as well as indoors, and it's fine over a tub or shower. That's a step above damp-rated fans, which can't take direct moisture. The housing is steel with ABS blades, and it runs on standard 120V.
2) Will the Aella 22 inch fan work on a vaulted or sloped ceiling?
No. The Aella is a flush mount fan and is not sloped ceiling compatible, so it needs a flat ceiling. It hangs 9.6 inches from the ceiling with a 12.25 inch canopy. For an angled ceiling you need a downrod fan with a sloped-ceiling canopy kit instead.
3) Does the Aella caged fan meet California Title 24 for a new build or retrofit?
Yes on both California energy rules: the Aella is Title 20 and Title 24 compliant, and it's ADA compliant. Listings are cUL/UL. It is not Energy Star qualified, which matters only if your program specifically requires that label.
4) Does the WAC Aella fan come with a light, and how bright is it?
The LED light kit is built in and included: 1200 lumens at 3000K through a frosted polycarbonate lens, aimed downward. It's an integrated LED module, not a socket, so there's no bulb to buy or replace. Total draw for the fixture is 30W.
5) Do I need to buy a remote or wall control for the WAC Aella smart fan?
A remote ships with the fan, so nothing extra is required to run it out of the box. You get 6 speeds and a reversible motor for winter downdraft reversal, plus dimming on the LED.
6) What finishes does the WAC Aella F-096L come in and which part number do I order?
Three finish combinations, all under model F-096L: Aged Brass with Matte Black (F-096L-AB/MB), Brushed Nickel with Matte Black (F-096L-BN/MB), and all Matte Black (F-096L-MB). The two-tone options put the contrasting metal on the cage and housing.
7) Is the WAC Aella fan motor DC, and can I dim it on a standard wall dimmer?
The Aella uses a DC motor, which is why it gets 6 speeds and quieter low-speed operation than an AC fan. Control it with the included remote, not a wall dimmer. Putting a DC fan motor on a standard rotary or triac dimmer is how you damage the driver.
8) How long do the LEDs in the WAC Aella fan last if I'm speccing it across a building?
The integrated LED module is rated for 50,000 hours. At 4 hours a day that's roughly 34 years of service, which is why there's no relamping line item on this one. Fixed 3000K and 1200 lumens across all three finishes, so units read the same from opening to opening.
