Product Specs
- Backflow Preventer Type:
- Vacuum Breaker
- Body Finish:
- Brass
- Body Material:
- Lead Free Brass
- Buy American Act Compliant:
- No
- Bypass:
- No
- Cap And Tether:
- No
- Disc Material:
- Silicone
- Ean:
- 98268434231
- Elbow Fitting:
- No
- Gds Status:
- Registered
- Hazard Protection Level:
- Health Hazard
- Hot And Harsh Water:
- No
- Hydrant Connection:
- No
- Inlet Connection Size:
- 3/8 IN
- Inlet Connection Size Metric:
- 10 MM
- Inlet Connection Type:
- Female Threaded
- Inlet Shutoff Valve Type:
- No Shutoff Valve
- Inlet Thread Type:
- NPT
- Lead Free:
- Yes
- Maximum Temperature Fahrenheit:
- 180
- Maximum Working Pressure Bar:
- 8.6
- Maximum Working Pressure Psi:
- 125
- Meter Type:
- No Meter
- Minimum Temperature Celsius:
- 0.5
- Minimum Temperature Fahrenheit:
- 33
- Outlet Connection Size:
- 3/8 IN
- Outlet Connection Type:
- Female Threaded
- Outlet Shutoff Valve Type:
- No Shutoff Valve
- Outlet Thread Type:
- NPT
- Part Number:
- 792037
- Polymer Coating:
- No
- Pressure Operation:
- Non Continuous
- Protection Type:
- Backsiphonage
- Seat Material:
- Silicone
- Series:
- LF288A
- Strainer:
- No
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Valves
- Product Type:
- Backflow Preventer
- Brand Name:
- Watts

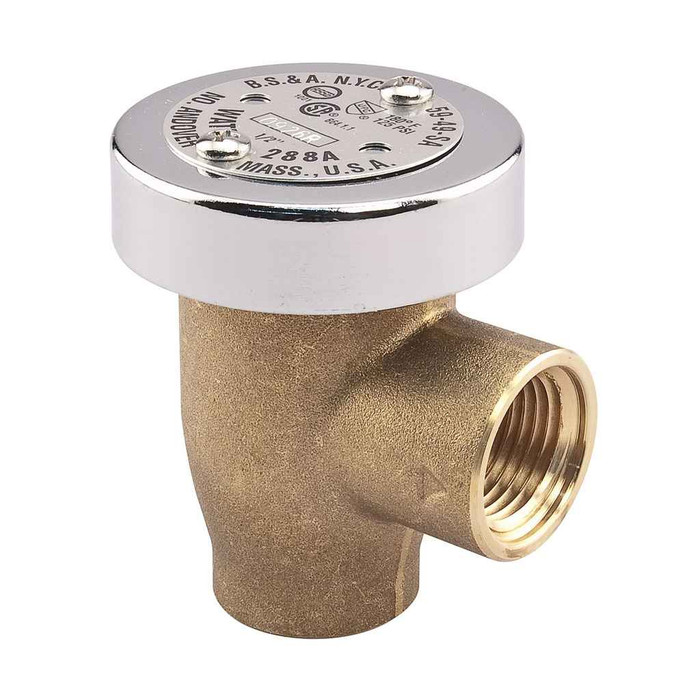

Watts LF288A 3/8 – Frequently Asked Questions
1) Can I use this anti-siphon vacuum breaker on a line that stays under constant pressure?
No. The LF288A is rated for non-continuous pressure only, which is how an atmospheric anti-siphon vacuum breaker works: it must be downstream of the last shutoff so the pressure drops off when the outlet is closed. If the valve will sit under standing line pressure all the time, you need a pressure-type vacuum breaker or an RPZ assembly instead.
2) What kind of backflow does this Watts LF288A actually protect against?
Backsiphonage only, and it is rated for health hazard level protection. That means it stops contaminated water being pulled back into the potable supply when supply pressure drops. It does not protect against backpressure, so on any installation where downstream pressure can exceed supply pressure (booster pumps, elevated tanks, chemical injection) this is the wrong device.
3) Does the LF288A come with shutoff valves or a strainer, or do I need to add them?
Neither is included. There is no inlet shutoff, no outlet shutoff, no strainer, no bypass, and no meter on the LF288A, and no test cap and tether. It is just the anti-siphon vacuum breaker body, so plan any isolation valve or upstream strainer as separate parts on your material list.
4) Is the Watts LF288A lead free for potable water work?
Yes. The body is lead free brass with a brass finish, and the valve is flagged lead free, so it is suitable for potable water lines where lead free construction is required. The internal disc and seat are silicone.
5) What pressure and temperature can this 3/8 inch vacuum breaker handle?
Up to 125 psi (8.6 bar) working pressure and 180 F maximum, with a minimum of 33 F (0.5 C). The 180 F ceiling covers normal domestic hot water service, but it is not built for hot and harsh water duty, so keep it off high temperature process or steam condensate lines. The 33 F minimum also means it is not a freeze rated device: protect it or remove it seasonally on outdoor lines.
6) Does the Watts LF288A meet Buy American Act requirements for a government job?
No. The LF288A 3/8 is flagged as not Buy American Act compliant, so it will not satisfy a BAA or domestic sourcing clause on a federal or federally funded project. It is lead free brass, which covers potable water requirements, but the origin requirement is a separate matter and this part does not meet it.
7) What is the Watts part number for the 3/8 inch LF288A anti-siphon vacuum breaker?
It is ordered as Watts LF288A 3/8, series LF288A, Watts part number 792037. That is the 3/8 inch female NPT by 3/8 inch female NPT lead free configuration.
