Weslock 600 Series Single Cyli...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$71.00
$39.60

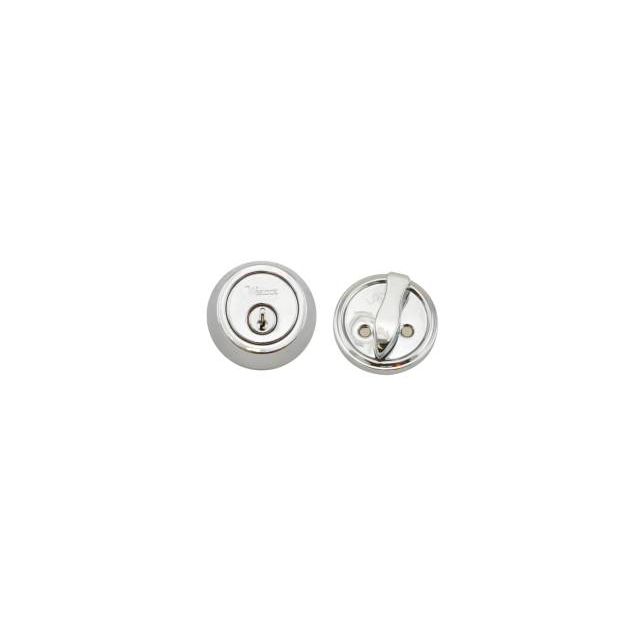

Weslock 600 Series Single Cylinder Deadbolt

Weslock 600 Series Single Cylinder Deadbolt

(No reviews yet) Write a Review

Model: 00671-6-6SL23
From the Traditionale Collection
$71.00
$39.60
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.00
$39.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK DEADBOLT OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.



Standard features

  • 5-Pin Cylinder, Weslock keyway
  • Heavy duty security strikes with 3” screws
  • 1” Throw bolt with two hardened steel rollers prevent sawing
  • ADA recommended, extra large interior thumbturn
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Fits doors prepared with 2-1/8” ( 1-5/8“ optional ) cross hole and 1” edge hole
  • Adjusts to door thickness from 1-3/8” - 2”
  • Limited Lifetime Mechanical Warranty
  • Limited Lifetime Finish Warranty





Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Traditionale
Keyed:
Yes
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Traditionale
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Residential Deadbolts
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Deadbolt
Product Attribute:
Deadbolts
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Cylinder x Thumbturn
Product Dimension:
2-1/2" Diameter with 15/16" Projection
Product Substrate:
Brass
Product Category:
Mechanical Locks
Department:
Door Hardware

Weslock 00671-6-6SL23 – Frequently Asked Questions

1) Will the Weslock 600 Series deadbolt fit my existing door prep?
It drops into a standard residential prep: 2-1/8 inch cross bore and 1 inch edge bore, with a 1-5/8 inch cross bore option if that is what your door has. The latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, so you don't need to know which one your door was bored for before ordering.
2) What door thicknesses does the Weslock 600 deadbolt adjust to?
From 1-3/8 inches up to 2 inches, which covers standard 1-3/4 inch entry doors as well as thinner 1-3/8 inch doors and thicker custom slabs. That top end is wider than most residential deadbolts reach.
3) Can I key several Weslock 600 deadbolts alike for a rental property?
Yes. Keying is selected at order time: keyed different is standard, or you can choose keyed alike so one key runs every unit in the group. There is also a key code field if you need them cut to an existing Weslock code. The cylinder is a 5-pin in the Weslock keyway, so these key alike with other Weslock hardware, not with Schlage or Kwikset cylinders.
4) Is this deadbolt strong enough for an exterior entry door?
It throws a 1 inch bolt with two hardened steel rollers inside it to stop a saw blade, and ships with heavy duty security strikes using 3 inch screws that reach past the jamb into the framing. That screw length is what actually resists a kick-in. It is a residential product, so for a commercial opening look at a Grade 1 unit like the Cal-Royal CRB800 or the Dexter DB1000 instead.
5) Which deadbolt should I use if I need a fire rated opening instead of the Weslock 600 Series?
The Weslock 600 Series is a residential deadbolt. For a fire door, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw and a fire rating, fitting doors 1-3/8 inch to 1-3/4 inch thick, and the Hager 3118 is the Grade 1 classroom-function deadbolt with a fire rating and a 6-pin Schlage C cylinder. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
6) What is a commercial-grade alternative to the Weslock 600 Series single cylinder deadbolt for an apartment entry door?
The Weslock 600 Series deadbolt is a residential single cylinder deadbolt with a cylinder x thumbturn function. If the opening needs a commercial-rated bolt, the Dexter DB1000 is a Grade 1 single cylinder deadbolt covering doors 1-3/8 inch to 1-7/8 inch thick, and the Dexter DB2000 is the Grade 2 single cylinder version for doors 1-3/8 inch to 1-3/4 inch. Both keep the same cylinder x thumbturn operation, so the door swing and user experience do not change.
7) I need a double cylinder deadbolt instead of a thumbturn for a door with glass nearby. What should I use?
The Weslock 600 Series is single cylinder, keyed outside with a thumbturn inside, so it will not serve an opening that requires a key on both sides. Double cylinder options include the Dexter DB1000 double cylinder deadbolt, a Grade 1 unit for doors 1-3/8 inch to 1-7/8 inch thick, the Dexter DB2000 double cylinder at Grade 2 for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LU Series Grade 2 double cylinder deadbolt in a stainless steel US32D finish. Confirm your local code permits double cylinder hardware on an egress door before specifying it.
8) I need to key the deadbolt to an existing Schlage C system. Is there an alternative to the Weslock 600 Series?
The Weslock 600 Series uses a 5-pin cylinder in the Weslock keyway, so it will not accept a Schlage C key. The Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt built on the Schlage C keyway for doors 1-3/8 inch to 1-3/4 inch thick, and the Hager 3118 uses a 6-pin Schlage C cylinder. For a small format interchangeable core system, the Arrow E61 is a Grade 2 single cylinder deadlock supplied with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors.
9) Which single cylinder deadbolts look like substitutes for the Weslock 600 Series but need different door prep?
The Weslock 600 Series is a bored tubular deadbolt fitting a 2-1/8 inch cross bore and 1 inch edge bore. Several deadbolts with the same cylinder x thumbturn function use different preparation: the Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch, the Dormakaba D900 is a small case mortise deadbolt, and the Codelocks CL200 is a surface mounted deadbolt with key override. None of those drop into a standard tubular deadbolt bore.
10) Which deadbolt should I standardize on across a multifamily property if the Weslock 600 Series is residential grade?
The Weslock 600 Series is a residential deadbolt with an adjustable 2-3/8 inch or 2-3/4 inch backset, which suits unit doors but is not graded for commercial cycles. For a fleet standard with an ANSI grade, the Accentra D111 is a Grade 1 single cylinder deadbolt with a 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors, the Deltana CL200LM is a Grade 1 single cylinder deadbolt, and the Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard. All three use cylinder x thumbturn operation.
11) My door is bored only for a 2-3/4 inch backset. Do the alternatives cover that?
The Weslock 600 Series ships with an adjustable latch that sets to either 2-3/8 inch or 2-3/4 inch backset, so one part covers both preps. Among alternatives, the Deltana CL200LA is a Grade 2 single cylinder deadbolt built specifically for a 2-3/4 inch backset, while the Accentra D111 Grade 1 deadbolt is a 2-3/8 inch backset unit. The Cal-Royal ED500 Grade 3 and the Brinks Raleigh E2401 both use an adjustable backset like the Weslock.
12) How far does this deadbolt stick out from the door face?
The rose is 2-1/2 inches in diameter with a 15/16 inch projection, so it sits close to the face without crowding a storm door or a narrow stile. The latch faceplate on the door edge is 1 by 2-1/4 inches, the common residential deadbolt faceplate size, and it is removable if you are fitting a drive-in style prep.
13) Is the thumbturn easy to operate for elderly or arthritic residents?
The interior thumbturn is oversized and ADA recommended, which means it can be turned without a tight pinch grip. If you are standardizing an assisted living or senior housing property, that matters more than the bolt spec. The Cal-Royal LSD is another option with an ADA ergonomic thumbturn.
14) What is the difference between this and a small format interchangeable core deadbolt?
The Weslock 600 uses a fixed 5-pin cylinder in the Weslock keyway, so rekeying means pinning the cylinder. If your property is on an SFIC system where maintenance swaps cores by hand, you want a deadbolt prepped less core, such as the Arrow E61 in 26D with SFIC prep or the Deltana CL200LAIC.
15) What deadbolt has an ADA-friendly thumbturn similar to the Weslock 600 Series?
The Weslock 600 Series uses an extra large interior thumbturn described as ADA recommended. The Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn that fits doors 1-3/8 inch to 1-3/4 inch thick, making it the closest match when the oversized turn piece is the reason for the selection.
16) Is there a deadbolt with a square or contemporary trim instead of the round Weslock 600 Series Traditionale?
The Weslock 600 Series Traditionale deadbolt has a 2-1/2 inch diameter rose with 15/16 inch projection. For squared or contemporary styling, the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt and the Bravura 310RC Elite is the contemporary round version, both cylinder x thumbturn. The Brinks Mendocino E2402 is a contemporary square single cylinder deadbolt with a 4-way adjustable backset, and Callan Model 200S is a Grade 3 single cylinder square trim deadbolt.
17) Does the Arrow DBX61 work as a substitute for the Weslock 600 Series deadbolt?
The Arrow DBX61 is a Grade 2 single cylinder deadbolt with the same cylinder x thumbturn function as the Weslock 600 Series, so it covers the same basic opening: keyed outside, turn inside. The difference is keying, since the Weslock runs a 5-pin Weslock keyway and the Arrow is on the Arrow DBX platform, so the two will not operate on one key without rekeying to a common system.
18) What deadbolt fits a thicker door than the Weslock 600 Series handles?
The Weslock 600 Series adjusts to door thickness from 1-3/8 inch to 2 inch. If the door is thicker, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock covering 1-3/4 inch to 2-1/4 inch doors, though it is a cylinder by blank plate configuration rather than cylinder x thumbturn. For a double cylinder application on a thick door, the Deltana 7312KA2 is a Grade 3 double cylinder deadbolt for 1-3/8 inch to 2 inch doors.
19) I want a keypad or electronic deadbolt instead of a keyed one. What are the options?
The Weslock 600 Series is a mechanical keyed deadbolt operated by a 5-pin Weslock key cylinder. Electronic alternatives include the Delaney KP400, a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 electronic surface deadbolt in brushed steel, and the Codelocks CL2210 electronic mortise deadbolt. Note that the surface and mortise electronic units do not use the same door prep as a bored tubular deadbolt.
20) I need a deadbolt with no key on either side, just a thumbturn. Is that available?
The Weslock 600 Series is keyed, with a single cylinder outside and a thumbturn inside. For a non-keyed opening, the Arrow E60 is a Grade 2 exit deadlock with a blank plate outside and thumbturn inside, fitting doors 1-3/8 inch to 1-3/4 inch thick. For a door where only the inside face is bored, the Callan Model 205S is a Grade 3 one-sided half-bore deadbolt.
21) What finish does the Weslock Traditionale 600 deadbolt come in?
Bright Chrome. The lock body is brass, so the finish is applied over brass rather than plated steel. If you need it to match other Weslock Traditionale trim on the same door, this is the collection those handlesets and levers belong to.
22) Is there a solid brass alternative to the Weslock 600 Series deadbolt for a decorative entry?
The Weslock 600 Series Traditionale deadbolt is built on a brass substrate. For a heavier decorative look, the Emtek Tuscany #11 is a lost wax cast bronze single cylinder deadbolt with cylinder x thumbturn function, and the Emtek 8323 Modern Disc deadbolt is a brass double cylinder unit. The Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt in the Estate Series.
