Weslock STONEBRIAR INTERCONNECTED Single Cylinder Handleset
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II Lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Heavy Duty Security Strikes with 3” screws
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Downloads and Resources
Weslock Catalog
Weslock General Specifications
Installation Instruction
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Keyed:
- Yes
- Product Subgroup:
- Bored Locksets
- Product Type:
- Interior Trim Only
- Subcategory:
- Residential Handlesets
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5 Pin Cylinder, Weslock Keyway
- Lock Function:
- Entry
- IMAP Policy:
- Yes
- Backset (Distance):
- 2-3/8 or 2-3/4
- Product Function:
- Single Cylinder
- Door Thickness Range:
- 1-3/4" to 2"
- Door Strike:
- 2-1/4" full lip and 1" x 2-1/4", Radius & Square
- Product Style:
- Stonebriar
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Weslock 07604--F1SL20 – Frequently Asked Questions
1) Does the Weslock 7604 include the exterior handleset, or is it just the inside trim?
The 7604 is interior trim only. It is the inside half that pairs with a Weslock Stonebriar or Wiltshire interconnected handleset, so you still need the exterior handleset itself. The trim comes with the adjustable latch and the strikes, and it gives you the interior knob plus the deadbolt turn side of a single cylinder entry setup.
2) What door prep does the Weslock 7604 interconnected handleset trim need?
Two cross bores at 2-1/8 inch (a 1-5/8 inch top bore is an option) with a 1 inch edge bore, and the cross holes must be at least 5-1/2 inches center to center. Because it is interconnected, that center to center spacing is the number that decides whether your existing door works. The latch adjusts between a 2-3/8 and 2-3/4 inch backset, so either common residential backset is covered without ordering a different part.
3) Will the Weslock 7604 latch drop into my existing strike, or do I have to cut the jamb?
The latch faceplate is 1 inch by 2-1/4 inch and comes with removable faceplates, and the strikes supplied are a 2-1/4 inch full lip plus a 1 inch by 2-1/4 inch, in both radius and square corner. So if your jamb is already mortised for a standard 1 x 2-1/4 strike in either corner style, you can reuse the cutout. The deadbolt throws 1 inch with two hardened steel anti-saw rollers, and the security strikes use 3 inch screws into the framing.
4) Can I have the Weslock 7604 keyed to match the other locks on the house?
Keying is a required selection when you order: keyed different or keyed alike, at no added charge, with an optional key code field if you need to match an existing Weslock key. It runs a 5-pin cylinder in the Weslock keyway, so matching only works across other Weslock-keyway cylinders. For a property manager standardizing several units, keyed alike plus a supplied key code is how you keep one key per building.
5) What is the closest equivalent to the Weslock 7604 interior handleset trim from another brand?
The nearest cross-brand equivalents are the Kwikset 966 interior trim packs for Signature Series 800 and 687 handlesets, such as the 966BRL-LH Brooklane lever and the 966BRNL-SQT Breton lever on a square rose, both listed as Grade 2 with an Entry function. The Weslock 7604 is likewise an interior trim only piece with an Entry lock function and a single cylinder keyed function, built to serve a Stonebriar or Wiltshire exterior handleset. The practical difference is the exterior half each one mates to: the Kwikset 966 packs are designed for Kwikset 800 and 687 series outside trim, while the 7604 is matched to Weslock Molten Bronze handlesets and uses the Weslock keyway with a 5 pin cylinder.
6) Is the Schlage F59 Accent lever interior pack a substitute for the Weslock 7604?
They are not interchangeable in function. The Schlage Residential F59 Accent lever interior pack carries a Dummy product function, while the Weslock 7604 is an Entry function trim with a single cylinder keyed function and an adjustable latch at 2-3/8 or 2-3/4 inch backset. If you need an operating latch behind the handleset, the F59 Accent pack will not provide it. The Schlage JH59 Broadway lever inside trim, listed with an Entrance function and a Collins deadbolt thumbturn, is the closer functional match on the Schlage side.
7) What should I use instead of the Weslock 7604 on a 1-3/8 inch door?
The Weslock 7604 starts at 1-3/4 inch door thickness, so a 1-3/8 inch door falls below its range. The Schlage Residential JH59 Broadway lever inside trim for a handleset covers 1-3/8 inch to 1-3/4 inch and is an Entrance function trim with a Collins deadbolt thumbturn, which makes it the comparable that fits a thinner door.
8) What grade is the Weslock 7604, and is it rated for a commercial opening?
Weslock states the 7604 exceeds ANSI A156.2 Grade 2 lock standards, but it is catalogued as residential hardware in the Molten Bronze collection with solid brass construction. For a house, townhome, or light multi-family entry it is a fit. For a high-traffic commercial entrance where a specifier is calling out Grade 1, this is not the part.
9) What are the alternatives to the Weslock 7604 if I am replacing interior handleset trim on a different brand of handleset?
Interior trim packs are brand-specific, so the 7604 only goes with Weslock Stonebriar or Wiltshire exteriors. If your exterior handleset is Kwikset Signature Series 800 or 687, the Kwikset 966BL Balboa or 966AO Aliso interior packs are the match, both Grade 3 entrance. For a Kwikset lever look, the 966BRNL Breton with square rose is Grade 2 entry. On Schlage exteriors, the JH59 Broadway lever inside trim with Collins deadbolt thumbturn is the handleset trim, Grade 3, for 1-3/8 to 1-3/4 inch doors, which is a thinner-door range than the Weslock covers.
10) Does the interior side of the Weslock 7604 use a key, or a thumbturn?
Single cylinder, so the key goes in the outside only and the inside is a turn. That is the normal choice for an entry door without glass near the lock. If you have sidelights or glass within reach of the interior turn, a single cylinder is the wrong configuration for that opening.
11) Which interior handleset trim carries a higher ANSI grade than a Grade 3 option?
The Weslock 7604 is stated to exceed ANSI A156.2 Grade 2 lock standards. On the comparable side, the Kwikset 966BRL-LH Brooklane and 966BRNL-SQT Breton trims are Grade 2, as are the Schlage Residential F59 Accent and FC59 Alexandria packs. The Kwikset 966AO Aliso and 966BL Balboa interior packs and the Schlage JH59 Broadway trim are Grade 3. For a residential entry door where you want the higher grade, the 7604 sits with the Grade 2 group.
12) I want a lever instead of the Wexford knob on the Weslock 7604 - what are my options?
The Weslock 7604 trim is offered with the Wexford knob in oil rubbed bronze. If a lever is what the opening calls for, comparable interior handleset trims in lever form include the Kwikset 966BRL-LH Brooklane lever in left hand, the Kwikset 966BRNL-SQT Breton lever on a square rose, and the Schlage Residential JH59 Broadway lever inside trim with a deadbolt thumbturn. Note those lever packs are built for Kwikset 687 and 800 series or Schlage J Series exteriors rather than a Weslock Stonebriar or Wiltshire handleset, so they are a choice made at the whole-handleset level, not a swap onto Weslock outside trim.
13) Do I need to worry about handing when choosing between the Weslock 7604 and the Kwikset 966 trims?
The Weslock 7604 is specified with an adjustable latch at 2-3/8 or 2-3/4 inch backset and no handed variant is called out, while among the comparables the Kwikset 966BRL-LH Brooklane lever is a left hand part and the 966BRNL-SQT Breton is described as a universal design for 687 and 800 series outside trim. If you are ordering a lever trim from the Kwikset side you have to confirm door hand on the 966BRL, whereas the universal Breton and the knob-style 7604 remove that step.
14) Between the Weslock 7604 and the Kwikset 966AO Aliso interior pack, which one is keyed?
The Weslock 7604 is keyed, with a single cylinder keyed function, a 5 pin cylinder and the Weslock keyway. The Kwikset 966AO Aliso and deadbolt interior pack is described as deadbolt keyed one side, as is the 966BL Balboa pack, both Grade 3 with an Entrance function. If you are standardizing keys across a property, the deciding point is keyway family: the 7604 keys into Weslock, so it will not key alike with a Kwikset pack.

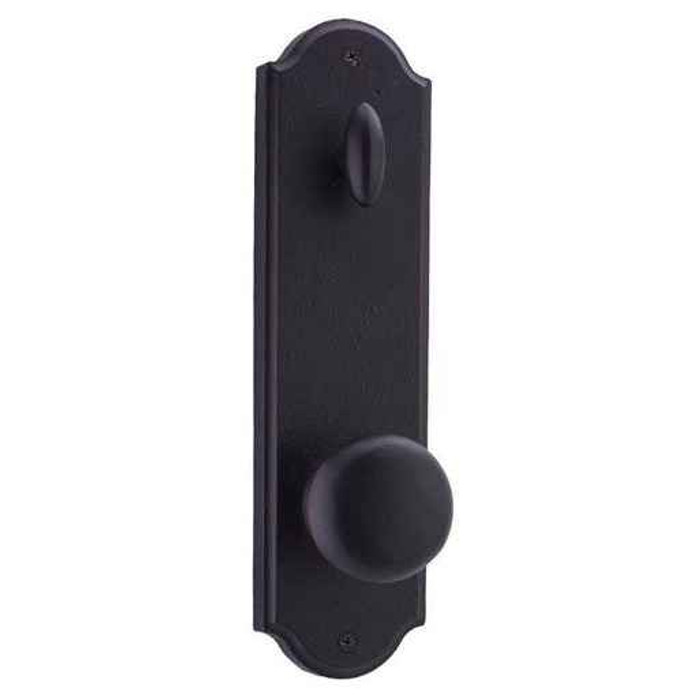

15) What finish and knob style does the Weslock 7604 come in?
Oil Rubbed Bronze with the Wexford knob. It is part of the Molten Bronze line, so it is meant to sit alongside other Molten Bronze openings in the same house. Installation screws are concealed and the knob is removable during install so you do not scratch the finish setting it.
16) Is the Weslock 7604 handing-specific?
No handing call-out is needed on the 7604. It is a knob trim on an interconnected bored prep, and the latch adjusts to either backset with reversible faceplate options, so the same part serves a left or right hand door. Lever trim on other brands is where handing starts to matter, for instance the Kwikset 966BRL Brooklane is sold as a dedicated left hand version.
