Westinghouse Electric 0110000 Westinghouse Saf-T-Brace, 3 Teeth, Twist and Lock

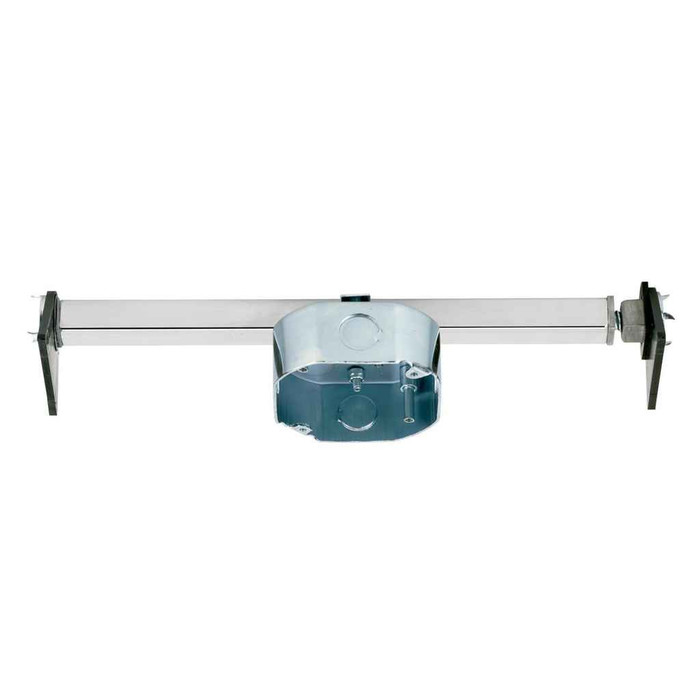

Westinghouse Electric Saf-T-Brace Ceiling Fan Support System with 3 Teeth Twist and Lock - 150 lb Capacity

(No reviews yet) Write a Review

Model: 110000
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$94.93
$31.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Westinghouse Electric Saf-T-Brace Ceiling Fan Support System with 3 Teeth Twist and Lock - 150 lb Capacity

Professional ceiling fan and fixture mounting solution with twist and lock installation

The Westinghouse Electric Saf-T-Brace provides professional-grade ceiling fan and fixture support with innovative 3 teeth twist and lock design. This comprehensive mounting system supports fixtures up to 150 lbs on 16-inch centers, fixtures up to 50 lbs on 24-inch centers, and fans up to 70 lbs, making it ideal for versatile residential and commercial applications. The system includes a 15.5 cu. in. dual-mount electrical box that is 1-1/2 inches deep, providing ample wiring space for professional installations.

Professional Features & Benefits

  • 150 lb Load Capacity: Supports heavy ceiling fans and fixtures on 16-inch centers for maximum installation flexibility and safety.
  • 3 Teeth Twist and Lock Design: Enables quick, secure installation with positive locking mechanism for reliable long-term performance.
  • 15.5 cu. in. Electrical Box: Provides generous wiring space at 1-1/2 inch depth for professional electrical connections and code compliance.
  • Complete Installation Kit: Includes brace, electrical box, Saf-T-Cap, mounting hardware, Romex connector and instructions for streamlined installation.
  • 6 Knockout Options: Accommodates both Romex and conduit connections with included Romex connector for versatile wiring methods.
  • Multiple Certifications: UL, CETL, ETL, CUL listed with IC rating, wet/damp location approval, and ADA compliance for professional applications.
  • Dual-Mount Capability: Supports both ceiling fans up to 70 lbs and light fixtures with varying weight capacities based on joist spacing.

Technical Specifications

  • Assembled Depth: 3.5 in
  • Assembled Height: 2.25 in
  • Assembled Weight: 1.65 lbs
  • Assembled Width: 24 in
  • Country Of Origin: China
  • Number In Pack: 1
  • Product Height: 14.63 in
  • Product Length: 3.88 in
  • Product Weight: 2.280625 lbs
  • Product Width: 3 in

Professional Applications

  • Residential ceiling fan installations in living rooms, bedrooms, and dining areas
  • Commercial facility lighting and ventilation mounting
  • Multi-unit residential properties requiring reliable fixture support
  • Professional office spaces with ceiling-mounted fixtures
  • Retail establishments requiring secure overhead mounting
  • Light industrial applications with appropriate load requirements

Why Choose Westinghouse Electric Quality?

Westinghouse Electric delivers proven reliability with comprehensive UL, CETL, ETL, and CUL certifications ensuring professional-grade performance. The IC rated, wet and damp location approved design with ADA compliance provides versatile installation options backed by trusted Westinghouse Electric engineering and quality standards.

Manufacturer Resources

Product Specs

Assembled Depth:
3.5 in
Assembled Height:
2.25 in
Assembled Weight:
1.65 lbs
Assembled Width:
24 in
Country Of Origin:
China
Number In Pack:
1
Product Height:
14.63 in
Product Length:
3.88 in
Product Weight:
2.280625 lbs
Product Width:
3 in

Westinghouse Electric 110000 – Frequently Asked Questions

1) How much weight will the Westinghouse Saf-T-Brace hold for a ceiling fan versus a light fixture?
Three different ratings apply to the Saf-T-Brace, and picking the wrong one is how these get overloaded. Fixtures up to 150 lbs when the brace spans 16-inch centers, fixtures up to 50 lbs on 24-inch centers, and ceiling fans up to 70 lbs. Fans are always the lower number because of the vibration and dynamic load, so a 70 lb ceiling fan is the ceiling regardless of how your joists are spaced.
2) Will the Saf-T-Brace fit between joists spaced 24 inches apart?
Yes. The brace adjusts and its assembled width is 24 inches, so it spans both 16-inch and 24-inch on-center framing. Just remember the capacity drops at the wider span: 150 lbs at 16-inch centers, 50 lbs at 24-inch centers.
3) Can the Saf-T-Brace be installed from below through the existing fixture hole, or do I need attic access?
It is built for retrofit from below. The 3-teeth twist and lock design lets you feed the brace through the existing ceiling opening and twist it until the teeth bite into the joists on either side, no attic access and no cutting extra drywall. That is the main reason electricians and property maintenance crews reach for this one on an existing ceiling.
4) Do I need to buy an electrical box separately with the Westinghouse Saf-T-Brace?
No, the box comes with it. The kit ships with a 15.5 cu. in. dual-mount box that is 1-1/2 inches deep, plus the brace, Saf-T-Cap, mounting hardware, a Romex connector and instructions. One kit per pack. You supply the fan or fixture mounting bracket that came with the fixture itself.
5) Is the Westinghouse Saf-T-Brace approved for a damp location like a covered porch?
Yes. The Saf-T-Brace carries wet and damp location approval, and it is also IC rated so it can sit in contact with insulation. Listings include UL, CETL, ETL and CUL, and it is ADA compliant.
6) Is 15.5 cubic inches enough box volume for a ceiling fan with a light kit?
The included box is 15.5 cu. in. at 1-1/2 inches deep. Box fill is counted by the number and gauge of conductors, devices and clamps in the box, so a typical fan feed plus a switched leg for the light kit fits comfortably, but count your fill if you are splicing through multiple circuits at that location. There are 6 knockouts for Romex or conduit and a Romex connector is in the kit.
7) Can I run EMT conduit to this box instead of Romex?
Yes. The box has 6 knockouts that take either Romex or conduit connectors. A Romex connector is supplied in the kit; for conduit you provide the appropriate connector for your raceway type.
8) How much space do I need above the ceiling for this fan brace?
Plan on roughly 3.5 inches of clearance above the drywall: that is the assembled depth of the brace, with an assembled height of 2.25 inches. In a shallow bay or over a tight soffit, measure before you commit, because the bar has to rotate freely to twist and lock into the joists.
