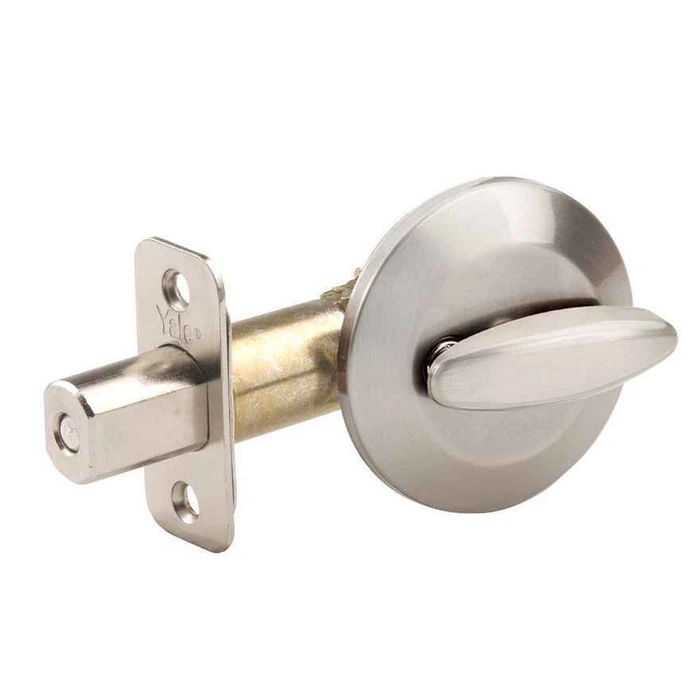

Yale New Traditions One way Deadbolt

Yale New Traditions One way Deadbolt

(No reviews yet) Write a Review

Model: YR880-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$23.00
$21.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

YALE NEW TRADITIONS YR880 ONE WAY DEADBOLT OVERVIEW

The Yale 800 series deadbolts offer a variety of functions and finishes, and are compatible with all New Traditions leversets and knobsets. The 800 series deadbolts offer excellent strength and reliability,certified to an ANSI Grade 3.

FEATURES & BENEFITS

  • Certified ANSI/BHMA Grade 3
  • Pre-Started screws makes installation quick and easy
  • Provide a clean consistent look.
  • Saves installation time and reduces chance of scratches.
  • Reduces wear and provides smooth operation.
  • Easily field reversible for installation in applications of either hand.
  • Limited Lifetime Mechanical and Finish Warranty

DOWNLOADS

Manufacturer Resources

Product Specs

Series:
New Tradition
Cross Bore:
2-1/8"
Warranty:
Limited Lifetime Mechanical and Finish
Subcategory:
Residential Deadbolts
Keyed Function:
Non-Keyed
Product Type:
Deadbolts
Commercial/Residential:
Residential
Keyed:
No
Lock Function:
One-Way
Product Group:
Mechanical Locks
Product Subgroup:
Deadbolts
Product Attribute:
Deadbolts
Product Function:
One-Sided
Door Thickness Range:
1-3/8" to 1-3/4"
Product Design:
Round
Product Category:
Mechanical Locks
Product Substrate:
Metal
Department:
Door Hardware

Yale Residential YR880-626 – Frequently Asked Questions

1) What is a one-way deadbolt and when would I use the Yale YR880 instead of a regular keyed deadbolt?
The Yale New Traditions YR880 is a one-sided, non-keyed deadbolt: thumbturn on the inside, nothing on the outside. No key, no cylinder, no outside trim. Use it where a door only ever needs to be locked and unlocked from inside, such as a storage room, a basement or garage service door, an interior connecting door in an apartment, or an unused secondary exterior door. If anyone needs to get in from outside, this is the wrong part and you want a cylinder x thumbturn deadbolt instead, like the Arrow DBX61 or the Dexter DB2000 single cylinder.
2) Does the Yale YR880 one way deadbolt drop into an existing 2-1/8 inch bore?
It does. The YR880 uses a 2-1/8 inch cross bore, the same hole a standard tubular deadbolt is prepped for, so on a door already bored for a deadbolt you are reusing the existing prep. Note it is a one-sided lock, so the outside face of the door will have an open bore behind the lock body rather than a cylinder filling it. If your existing prep goes all the way through and you want a finished look on both faces, a one-sided half-bore deadbolt like the Callan 205S is built for that case.
3) Is the Yale New Traditions deadbolt rated for commercial use?
It is certified ANSI/BHMA Grade 3 and catalogued for residential duty, which puts it in light residential and multi-family interior service, not a high-traffic commercial opening. For a commercial or institutional door, step up the grade: the Cal-Royal CB160 and Arrow DBX61 are Grade 2, and the Design Hardware D1 Series and Delaney LM Series are Grade 1.
4) Will the Yale YR880 deadbolt match the Yale knobs and levers already on my doors?
Yes, if they are New Traditions. The 800 series deadbolts are compatible with all New Traditions leversets and knobsets, so trim style and finish line up across the opening. Ten finishes are offered: 10BP Oil Rubbed Bronze Permanent, 605 Polished Brass, 609 Antique Brass, 613E Dark Oxidized Satin Bronze, 619 Satin Nickel, 620 Antique Nickel, 625 Polished Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat, and GM Gun Metal. Order the deadbolt in the same finish code as the lockset and they read as a set.
5) Can I key the Yale YR880 deadbolt to match my other locks?
No. The YR880 is non-keyed, with no cylinder to key, so it cannot be keyed alike into a house or building keying scheme. If you need this door on the same key as the rest, choose a keyed deadbolt: the Hager 3115 comes with a Schlage C keyway, and the Arrow E61 is prepped for SFIC less core if you are running interchangeable cores across a property.
6) I need a deadbolt on a 2-inch thick door - will the Yale YR880 work?
The YR880 New Traditions deadbolt is rated for doors 1-3/8 inch to 1-3/4 inch thick, so a 2 inch door is past its range. The Deltana 7312KA2 double cylinder deadbolt is Grade 3 and covers 1-3/8 inch to 2 inch doors. For thicker still, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock covering 1-3/4 inch to 2-1/4 inch. Both are keyed functions rather than one-sided.
7) Is there a Yale New Traditions deadbolt equivalent that locks from both sides of the door?
The YR880 New Traditions deadbolt is a one-sided, non-keyed deadbolt with a 1-3/8 inch to 1-3/4 inch door thickness range, so it throws the bolt from the inside face only. When an opening needs key control from outside, the Accentra D111 is a Grade 1 single cylinder deadbolt with a cylinder x thumbturn function and a 2-3/8 inch backset, covering the same 1-3/8 inch to 1-3/4 inch door thickness range. The Dexter DB2000 single cylinder deadbolt is a Grade 2 cylinder x thumbturn deadbolt over that same 1-3/8 inch to 1-3/4 inch thickness range. Both add an exterior keyed cylinder the YR880 does not have.
8) What one-sided deadbolt can I use if the door only has a half bore on the inside face?
The Yale New Traditions YR880 is a one-sided deadbolt built for a 2-1/8 inch cross bore. The Callan Model 205S is a Grade 3 one-sided half-bore deadbolt, which is the closer match when the door is prepped with a half bore rather than a full 2-1/8 inch through bore. Both are one-sided functions, so neither takes a key from outside; the difference is the door prep each one lands in.
9) I need a deadbolt keyed from both sides on a glass-front or sidelite door - what replaces a one-way bolt there?
The Yale New Traditions YR880 is non-keyed and one-sided, so it cannot be operated from the exterior. Double cylinder deadbolts take a key on both faces: the Dexter DB2000 double cylinder is Grade 2 across a 1-3/8 inch to 1-3/4 inch door thickness range, the Dexter DB1000 double cylinder is Grade 1 across 1-3/8 inch to 1-7/8 inch, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder for 1-3/4 inch doors. Choose by the door thickness you are working with.
10) What deadbolt do I use instead of the Yale YR880 on a fire rated opening?
The YR880 New Traditions deadbolt is a residential Grade 3 one-way bolt. Where the opening calls for a fire rating, the Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway and a fire rating, fitting 1-3/8 inch to 1-3/4 inch doors, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder, also fire rated over that same door range. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
11) What is the difference between the Yale YR880 and an interchangeable core deadbolt for a keyed-alike facility?
The YR880 New Traditions deadbolt is non-keyed, so it carries no cylinder and cannot join a keying system. For SFIC or interchangeable core standardization, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core covering 1-3/8 inch to 1-3/4 inch doors, and the Deltana CL200LAIC is a Grade 2 single deadbolt with an interchangeable core and a 2-3/4 inch backset. The Delaney LM Series is a Grade 1 single cylinder less core deadbolt in dull chrome US26D.
12) What should I specify instead of a Yale YR880 for a classroom deadbolt function?
The YR880 New Traditions deadbolt is a one-way, non-keyed residential bolt and has no classroom function. For classroom deadlocking, the Falcon D111 is a Grade 1 heavy duty classroom deadbolt with adjustable backset and the Falcon D211 is a Grade 2 medium duty classroom function deadbolt with single cylinder operation. The Corbin Russwin DL2211 is a Grade 1 cylindrical deadlock in classroom function with a cylinder x blank configuration for 1-3/4 inch doors.
13) Do I have to order the Yale YR880 by hand, left or right?
No handing to specify. The New Traditions 800 series deadbolt is field reversible, so one part covers a left or right hand opening and you set it at install. That matters for a property manager buying a few at a time for mixed openings, you stock one item rather than two.
14) What is the difference between the Yale YR880 one way deadbolt and an exit deadlock like the Arrow E60?
Both lock only from the inside, but they are built for different doors. The YR880 is a residential Grade 3 one-sided deadbolt in a round trim, sized for 1-3/8 to 1-3/4 inch doors and styled to match New Traditions residential trim. The Arrow E60 is a Grade 2 exit deadlock with a blank plate outside and thumbturn inside, covering the same 1-3/8 to 1-3/4 inch thickness but built for commercial exit openings where the outside face gets a finished blank plate. Pick the E60 for a commercial back door, the YR880 for a residential or multi-family interior door.
15) Which Grade 3 deadbolts cover the same 1-3/8 to 1-3/4 inch door range as the Yale YR880?
The YR880 New Traditions deadbolt is certified ANSI/BHMA Grade 3 and fits doors from 1-3/8 inch to 1-3/4 inch. Two Cal-Royal Chelsie deadbolts sit at the same grade and door range: the ED500 is a Grade 3 single cylinder deadbolt with adjustable backset, and the LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn. Both are cylinder x thumbturn functions, so they key from outside where the YR880 works from one side only.
16) Is a mortise deadbolt a substitute for the Yale YR880 tubular deadbolt?
No. The YR880 New Traditions deadbolt is a bored deadbolt taking a 2-1/8 inch cross bore. Mortise deadbolts need a pocket routed into the door edge instead: the Dormakaba D900 small case mortise dead bolt is a cylinder x thumbturn function, and the Emtek 2051 is a European mortise deadbolt with an integrated roller latch in a round trim. Those go into a mortise prep, so they are not a drop-in for a door already bored for the YR880.
17) The Yale YR880 comes in a round design - what square trim deadbolts are comparable?
The YR880 New Traditions deadbolt uses a round trim design. For square trim on the same door, the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt with cylinder x thumbturn function, the Callan Model 200S is a Grade 3 single cylinder square trim deadbolt, and the Brinks Mendocino is a contemporary square single cylinder deadbolt with a 4-way adjustable backset. All three key from the outside, unlike the one-sided YR880.
18) Can I put a keypad or electronic deadbolt where a Yale YR880 one-way deadbolt is now?
The YR880 New Traditions deadbolt is a mechanical, non-keyed one-way bolt with no code or credential entry. Electronic options include the Delaney KP400, a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 electronic surface deadbolt in brushed steel, and the Dormakaba Saffire LX-D RFID electronic deadbolt with BLE and electronic lock override. The Codelocks CL2200 is a surface-mounted deadbolt rather than a bored one, so it does not follow the 2-1/8 inch cross bore prep the YR880 uses.
19) Does the Arrow 460 strike work as a replacement for a Yale YR880 deadbolt?
No. The Arrow 460 is a mortise lock strike with straight lip for latchbolt and deadbolt functions on 1-3/4 inch doors - it is the strike plate side of the opening, not a lock. The YR880 New Traditions deadbolt is the bolt assembly itself, a one-sided deadbolt for a 2-1/8 inch cross bore. Similarly the Baldwin Reserve 8BR0618001 is a deadbolt spacer for double cylinder applications and the BEST 8T is a T Series tubular deadbolt tube component, both parts rather than complete deadbolts.
20) What does the Yale YR880 deadbolt look like, and is the trim round or square?
Round trim, in a metal substrate, in the New Traditions styling. If your other hardware is square or contemporary rather than traditional round, the Bravura 310SC Elite and the Baldwin Reserve Contemporary Square are square trim deadbolts, and the Bravura 310RC Elite is a contemporary round.
21) How long does it take to install a Yale New Traditions deadbolt on a pre-bored door?
On a door already bored to 2-1/8 inches it is a quick swap. The 800 series ships with pre-started screws, so the fasteners are already seated in the trim and you are not fishing for hardware or scratching the finish while you line things up. Being field reversible, there is no handing step either.
22) What deadbolt matches the Yale YR880 finish range if I want an oil rubbed bronze cast look?
The YR880 New Traditions deadbolt is offered in ten finishes including 10BP oil rubbed bronze permanent, 613E dark oxidized satin bronze, 609 antique brass and 605 polished brass. For a heavier decorative bronze on the same door, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt with cylinder x thumbturn function. The Tuscany takes a key from outside, so it is a different function from the one-sided YR880 rather than a finish-only swap.
