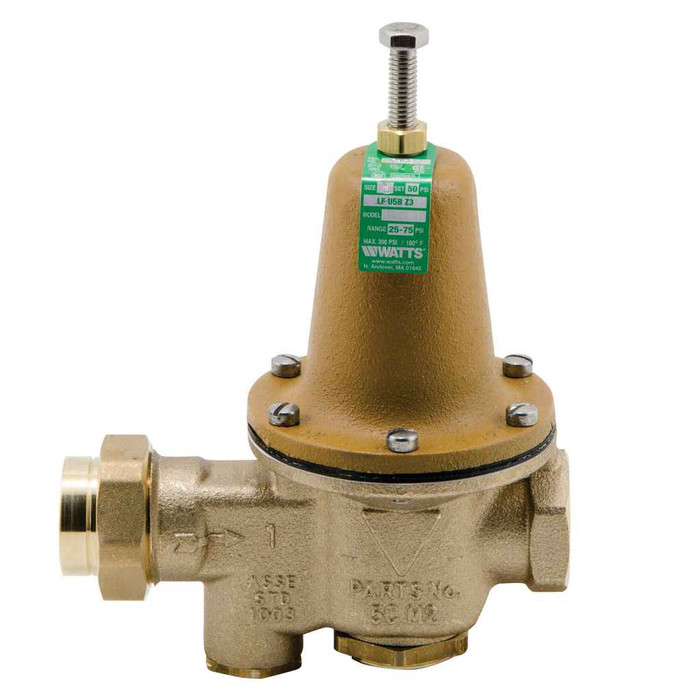

Watts 0009154 1 IN Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, Adjust 25-75 psi

Both ends of the Watts LFU5B-Z3, model 9154, are 1 inch female NPT threaded, so it mates with 1 inch NPT male threads on either side. The inlet is a union female NPT, which means you can break the valve out for service without cutting pipe. On copper you'll need 1 inch male adapters soldered or pressed on; on steel or brass nipples it threads straight on.

It ships set at 50 psi (3.4 bar) and adjusts from 25 to 75 psi, which is 1.8 to 5.2 bar. Most residential and light commercial service lands inside that band, so on a typical job you set it once at startup and leave it. If the building needs a reduced pressure above 75 psi, this is the wrong valve.

Maximum working pressure is 300 psi (20.7 bar) on the inlet side, so high-rise and high-street-pressure services are within its limits. What it will not do is reduce down to a setpoint outside 25 to 75 psi. Very high inlet pressure with a low target outlet is a two-stage job, and for that you want a high-pressure model rather than this standard one.

The body is a lead free copper silicon alloy, which is the material Watts uses for its potable water line. The seat disc is EPDM and both the trim and the strainer are stainless steel. It is intended for commercial and residential potable service, so it is the right family of valve for a domestic water main, not just mechanical make-up water.

The 9154 has a built-in thermal expansion bypass, so when water heats and expands it can push back through the valve toward the street instead of spiking pressure in the building. That bypass only works while the system is genuinely open to the main. If a backflow preventer, check valve, or meter check sits upstream, the system is closed and the bypass has nowhere to relieve to, and you still need an expansion tank. Plenty of retrofit jobs miss this and blow relief valves on the water heater.

A stainless steel strainer is integral to the valve, so you do not need a separate Y-strainer upstream to protect the seat. That matters on older galvanized or on new construction where debris and pipe dope find their way downstream. Plan the install so the strainer can be pulled and cleaned, and note the inlet union lets you drop the valve out without cutting.

Rated to 160 degrees F (71 C) maximum, with a minimum of 33 degrees F (0.5 C). That covers a domestic hot water line at normal delivery temperatures and a recirc return. It is not a boiler or heating-loop valve, and it must not be installed anywhere it can freeze, since the 33 degree floor is just above freezing.

No gauge is supplied with the 9154. If you need to verify the setpoint at the valve, or the owner wants a permanent readout, plan on a separate gauge teed in downstream. On a multifamily or MRO standardization program that is worth deciding up front, because a fleet of valves without gauges means someone carries a test gauge to every service call.

The valve carries a corrosion resistant coating, and the trim and strainer are stainless steel, so the wetted and exposed metal is set up to hold up in damp service. The limiting factor outdoors is temperature: the minimum is 33 degrees F, so it needs to stay above freezing. In an unheated pit or an exterior wall cavity in a cold climate, insulate or heat trace it.
