Metallics JSPMP5SS 10-24 x 1-1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.64
$0.64

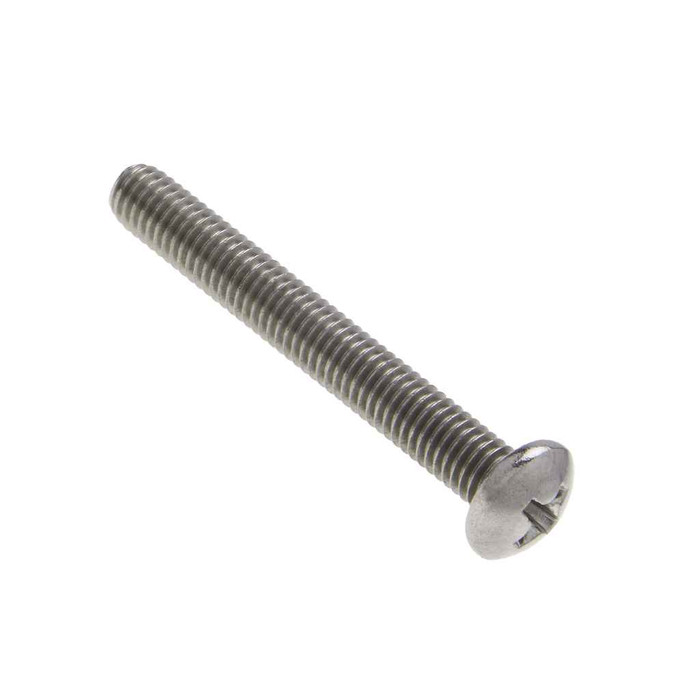

Metallics JSPMP5SS 10-24 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP5SS 10-24 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP5SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.64
$0.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Pan head with Phillips Drive
    • 18-8 Stainless Material
    • 10-24 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.15 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
24
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP5SS – Frequently Asked Questions

1) Are these stainless screws OK for outdoor or damp locations?
They are 18-8 stainless, which is the usual choice for wet locations, exterior boxes, and coastal or washdown areas where plated steel screws rust and seize. 18-8 is not as corrosion resistant as 316 in heavy salt exposure, but for general damp and outdoor electrical, plumbing, and HVAC work it holds up.
2) Can I use these on a federal or Buy American job?
No. The JSPMP5SS is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. For a job with domestic sourcing requirements you need a fastener certified to that requirement instead.
3) How many screws come in a jar of Metallics JSPMP5SS?
They ship in a jar of 100, and 100 is the order minimum, so the smallest purchase is one full jar rather than a single screw.
4) What size Phillips driver or bit do I need for these 10-24 pan head screws?
A #2 Phillips. The recess diameter is 0.192 in. with a gaging depth of 0.089 to 0.113 in., which is the standard #2 recess, so a worn or undersized bit will cam out before the screw seats.
5) How much does the pan head stick up, and will it clear a cover plate?
Head height runs 0.122 to 0.133 in. with a head width of 0.357 to 0.373 in. That is a low, broad profile typical of a pan head, so it sits nearly flush under a device plate and spreads load on sheet metal or a strap without needing a countersink.
6) Do these machine screws meet a dimensional spec I can put on a submittal?
Head, recess, and thread dimensions follow ASME B18.6.3-2010, the inch-series machine screw standard, with material to SAE. Tensile strength is listed at 80,000 psi minimum and hardness at Rockwell BBS-B9S. Note that stainless machine screws have no single performance standard, so treat strength figures as approximate.
7) Will a machine screw work in wood or drywall?
No. A machine screw like the JSPMP5SS has a straight, uniform 10-24 machine thread and a blunt end, so it needs a tapped hole, a threaded strap, or a nut to hold. For wood framing or drywall you want a wood screw, sheet metal screw, or an anchor, not this.
