Metallics JSRM27P 10-32 x 1 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.59
$0.59

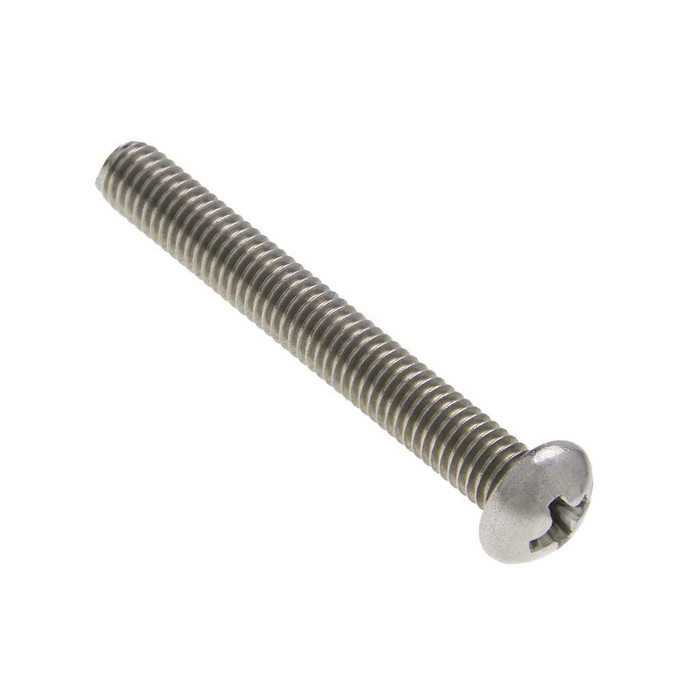

Metallics JSRM27P 10-32 x 1 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM27P 10-32 x 1 in. Round Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM27P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.59
$0.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with Phillips Drive
    • 10-32 Diameter, 1" Length
    • 18-8 stainless Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.093 - 0.119
Phillips Recess Diameter:
0.182 - 0.195
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.89 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM27P – Frequently Asked Questions

1) Will a 10-32 x 1 in. machine screw thread into a standard electrical box or device mounting hole?
Yes. Device boxes, plaster rings, and switch and receptacle straps in the US are tapped 6-32 for devices and 8-32 or 10-32 for fixture and cover mounting, and the Metallics JSRM27P is a 10-32 thread at 32 threads per inch. It is a machine screw, so it needs a tapped hole or a nut; it will not cut its own thread in sheet steel.
2) Is the Metallics JSRM27P screw Buy American or ARRA compliant for a government job?
No. The JSRM27P is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing requirements, you will need a domestic fastener instead.
3) How many screws come in a jar of Metallics JSRM27P?
They ship 100 to a jar, and the jar is the order minimum, so the smallest purchase is 100 pieces of the 10-32 x 1 in. round head Phillips screw.
4) What size Phillips bit do I need for these 10-32 round head screws?

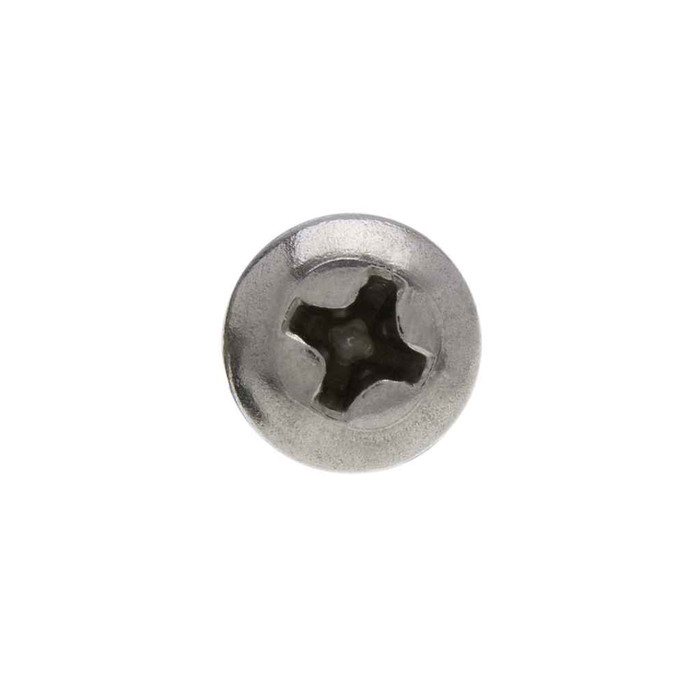

A #2 Phillips driver. The recess measures 0.182 to 0.195 in. in diameter with a 0.093 to 0.119 in. depth, which is the standard #2 geometry, so a #1 will cam out and a #3 will not seat.
5) Can these stainless machine screws be used outdoors or in a damp location?
The material is 18-8 stainless, which is the usual corrosion resistant choice for wet and outdoor electrical work (exterior fixture mounting, damp location covers, wash-down areas). Plated carbon steel screws rust in those spots; 18-8 does not.
6) How much does the round head stick up above the surface?
Head height runs 0.123 to 0.137 in. with a head width of 0.334 to 0.359 in. A round head is a domed, non-countersunk head, so it sits proud of the surface and bears on the face of the part. If you need the head flush, you want a flat head screw in a countersunk hole instead.
7) What grip length do I get from a 1 inch machine screw?
Length is 1 in., measured under the round head since round head screws are measured from the bearing face of the head. Subtract the thickness of the parts you are clamping to see how much thread is left to engage the tapped hole or nut.
