Metallics JSRM14P 6-32 x 2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.49
$0.49

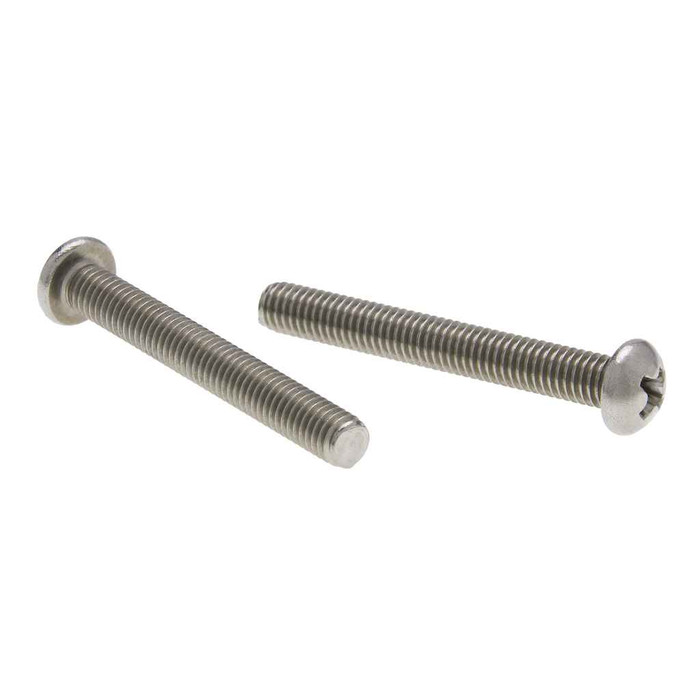

Metallics JSRM14P 6-32 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM14P 6-32 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM14P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.49
$0.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Round head with Phillips Drive
    • 18-8 stainless Material
    • 6-32 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.091 - 0.103 in.
Fastener Head Type:
Round
Fastener Head Width:
0.24 - 0.26 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.056 - 0.084
Phillips Recess Diameter:
0.149 - 0.162
Phillips Recess Width:
0.027
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.72 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.045 - 0.073
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM14P – Frequently Asked Questions

1) Are these screws Buy American or ARRA compliant for a government job?
No. The JSRM14P is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your spec carries a domestic-content requirement, this part will not satisfy it.

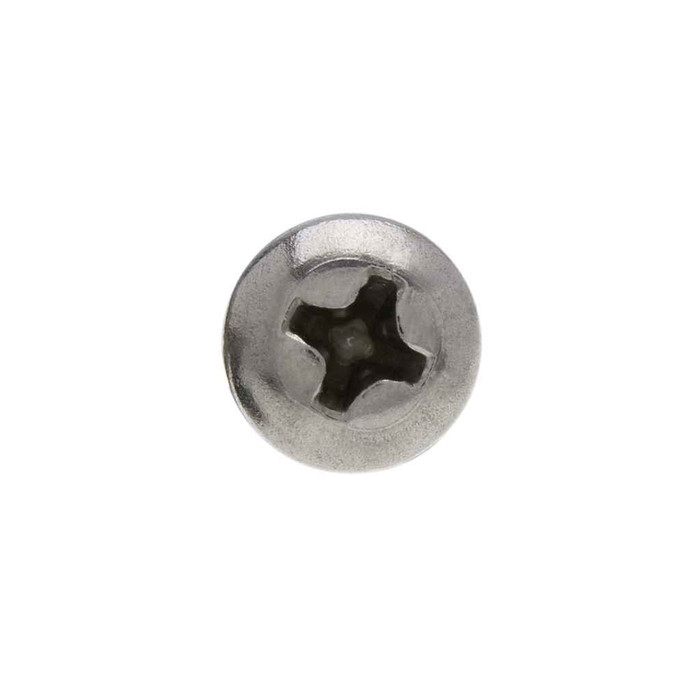

2) What driver do I need for these Phillips round head machine screws?
A #2 Phillips bit. The recess is specified at 0.149 to 0.162 in. diameter with 0.056 to 0.084 in. depth, which is what a #2 driver is sized for. Using a #1 will cam out.
3) How many screws come in a jar of Metallics JSRM14P?
These ship as a 100-piece jar, and 100 is the order minimum. The jar weighs 0.72 lbs.
4) Are 18-8 stainless machine screws OK for outdoor or damp-location electrical work?
18-8 stainless is the usual choice for wet and damp locations and exterior fittings because it resists corrosion without plating, unlike zinc-plated steel which eventually rusts at the head. The JSRM14P is 18-8 stainless throughout, hardness Rockwell B85-B95.
5) How much head does a 6-32 round head screw sit proud of the surface?
The round head measures 0.24 to 0.26 in. across with a head height of 0.091 to 0.103 in., so it stands roughly a tenth of an inch above the surface. If you need the head flush, a round head will not work; you want a flat head in a countersunk hole instead.
6) Do these machine screws come with nuts, or do I need to order them separately?
The JSRM14P jar is screws only. A machine screw has no self-tapping point, so it needs either a tapped hole or a separate 6-32 nut. Order 6-32 machine screw nuts alongside if you are fastening through unthreaded material.
7) What tensile strength should I expect from these stainless screws?
80,000 psi minimum, to SAE material standard. Metallics notes that tensile values for stainless machine screws are approximations, since there is no single performance standard for stainless machine screws. For a structural connection with a hard strength requirement, use an alloy steel fastener graded to that number.
