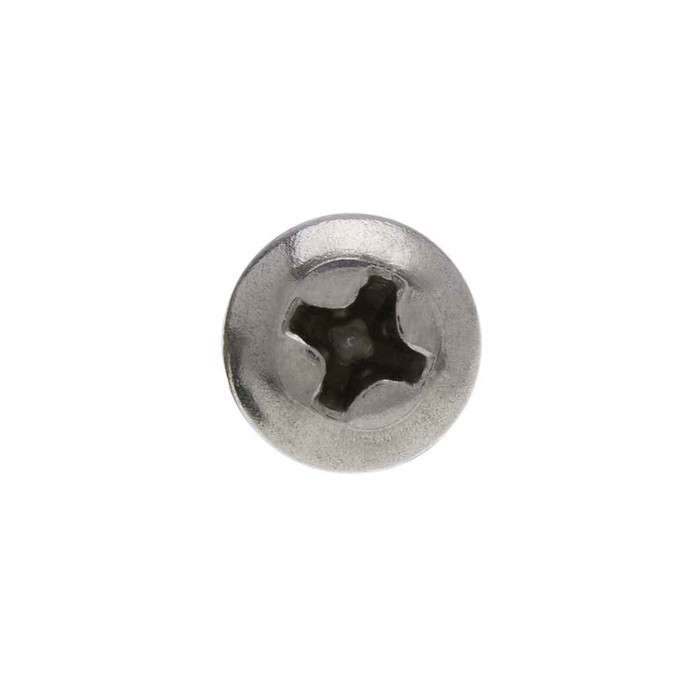

Metallics JSRM10P 6-32 x 1/2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM10P 6-32 x 1/2 in. Round Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM10P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.26
$0.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 1/2 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with Phillips Drive
    • 18-8 stainless Material
    • 6-32 Diameter, 1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.091 - 0.103 in.
Fastener Head Type:
Round
Fastener Head Width:
0.24 - 0.26 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries, Concrete, Masonry
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.056 - 0.084
Phillips Recess Diameter:
0.149 - 0.162
Phillips Recess Width:
0.027
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.3 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.045 - 0.073
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM10P – Frequently Asked Questions

1) Will a 6-32 x 1/2 in. machine screw thread into a standard electrical device box or switch plate?
6-32 is the standard thread used for device mounting holes in outlet and switch boxes, plates, and most wiring device straps, so the Metallics JSRM10P 6-32 screw threads straight into that prep. It is a UNC thread at 32 threads per inch, 1/2 inch long, which is enough grip for a device strap or plate without bottoming out in most boxes.
2) Are these screws stainless and OK for damp or outdoor locations?
They are 18-8 stainless, the austenitic grade commonly used where plated carbon steel would rust, so they hold up in damp interior work, unheated spaces, and typical exterior device and enclosure mounting. Hardness runs Rockwell B85 to B95.
3) Will a round head screw sit flush, or do I need a flat head for a countersunk hole?
Round head sits on top of the surface, it does not sit flush. The head measures 0.24 to 0.26 in. across and 0.091 to 0.103 in. tall, so it will proud above a plate or strap. If your hole is countersunk and you need the head buried, use a flat head machine screw in the same 6-32 size instead.
4) What driver bit do I need for these Metallics round head Phillips machine screws?
A #2 Phillips bit. The recess measures 0.149 to 0.162 in. in diameter with a 0.056 to 0.084 in. depth, which is the standard #2 geometry, so a worn or undersized bit is the usual cause of cam-out on these.
5) How is the Metallics JSRM10P packaged and what is the minimum I can buy?
It ships in a jar of 100 screws, which is the order minimum (100 count). Handy for a truck stock bin rather than a loose-count buy.
6) Do these Metallics machine screws meet Buy American or ARRA requirements on a public project?
The JSRM10P is flagged compliant for both ARRA and Buy American, with country of origin listed as China. If your spec requires domestic melt and manufacture rather than the compliance flag, verify against the project's specific clause.
7) How strong are these 18-8 stainless 6-32 screws?
Tensile strength is 80,000 psi minimum. Metallics notes that stainless machine screw strength figures are approximations, since there is no single performance standard for stainless machine screws, so treat 80,000 psi as a guide rather than a certified structural value.
8) What trades and applications are these 6-32 round head screws intended for?
Metallics lists them for electrical, plumbing, heating and air conditioning work, plus concrete and masonry applications. In practice that means device and plate mounting, enclosure covers, strap and bracket fastening, and anywhere a 6-32 tapped hole or nut is already in place. Dimensional sizing follows SAE.
