Metallics JFMP49 10-32 x 1/2 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.21
$0.21

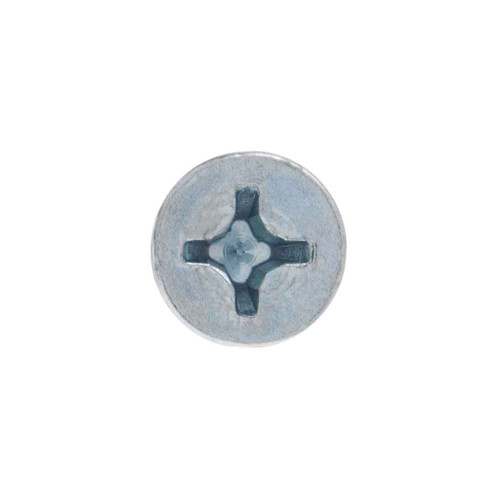

Metallics JFMP49 10-32 x 1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP49 10-32 x 1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP49
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$0.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Flat head with Phillips Drive
    • Zinc yellow screws are popular in electronics applications.
    • 10-32 Diameter, 1/2" Length
    • Steel Zinc Material

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.5 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP49 – Frequently Asked Questions

1) Can these be used on a federally funded or Buy American job?
No. The JFMP49 screws are not Buy American compliant and not ARRA compliant, with multiple countries of origin. If your contract carries a domestic sourcing clause, these will not satisfy it.
2) Is a 10-32 screw the same as 10-24, and will one work in place of the other?
No, and they are not interchangeable. The JFMP49 is 10-32, meaning 32 threads per inch (the UNF fine pitch), while 10-24 is the coarse version. Same shank diameter, different pitch, so forcing a 10-32 into a 10-24 tapped hole will damage the threads. Check the tap on the existing hole before you buy.
3) What size Phillips driver do I need for the Metallics JFMP49 screws?
A #2 Phillips. The recess is 0.198 in. diameter, 0.124 in. deep and 0.032 in. wide, which is the standard #2 geometry, so a worn #1 bit will cam out and strip the head.
4) How many screws come in a jar of Metallics JFMP49, and can I buy fewer?
They ship as a 100 piece jar, and the jar is the order minimum, so 100 is the smallest buy. The description notes other sizes and quantities are available by request.
5) Are zinc plated steel machine screws suitable for outdoor or damp locations?
The JFMP49 is zinc plated steel, made from AISI 1006-1022 low carbon steel. Zinc plating is a mild corrosion coating meant for dry interior work, panel and device mounting, and electronics. For wet locations, washdown areas or exterior work, specify a stainless machine screw of the same 10-32 x 1/2 in. size instead.
6) How much load will a 10-32 Metallics machine screw hold?
Rated at 1200 lb minimum tensile, with a hardness of Rockwell B70 to B100. That is ample for mounting devices, plates, panels and light brackets, but it is a low carbon steel fastener, not a graded structural bolt, so do not substitute it where a drawing calls out a Grade 5 or Grade 8 bolt.
7) What trades actually use these flat head Phillips machine screws?
Metallics lists the FM and FMP series for electrical, plumbing, heating and air conditioning work. In practice that is panel and device mounting, cover plates, control enclosures and sheet metal brackets with tapped 10-32 holes. The zinc yellow finish is also common in electronics assembly.
