Metallics JFMP93 10-32 x 2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.37
$0.37

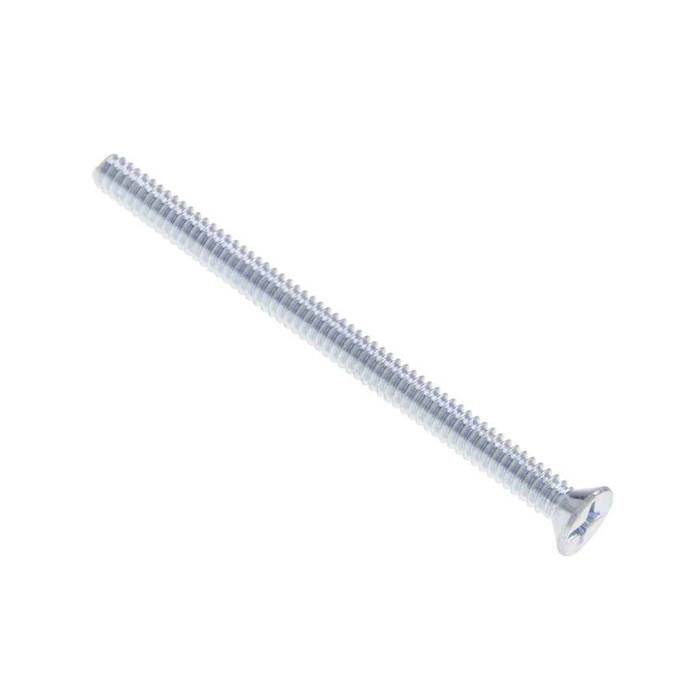

Metallics JFMP93 10-32 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP93 10-32 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP93
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.37
$0.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with Phillips Drive
    • Steel Zinc Material
    • 10-32 Diameter, 2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.41 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP93 – Frequently Asked Questions

1) Does a flat head machine screw sit flush, and how big is the head?
Flat head means a countersunk 82 degree head that finishes flush with the surface when the hole is countersunk for it. On the JFMP93 the head measures 0.333 to 0.362 in. across with a head height of 0.098 to 0.116 in. If your plate or bracket has a plain drilled hole and no countersink, the head will stand proud by about that head height, and you want a pan or round head instead.
2) Is zinc plated steel good enough for outdoor or damp locations?
The JFMP93 is zinc plated carbon steel, made from AISI 1006 to 1022 stock. Zinc plating handles dry interior work, panel builds and in-box device mounting. It is not a stainless screw, so sustained wet, washdown or coastal exposure will eventually rust it through the plating. For those locations specify a stainless 10-32 machine screw instead.
3) Can I use these on a federally funded job with Buy American requirements?
No. The JFMP93 is listed as not Buy American compliant and not ARRA compliant, with multiple country of origin. If your project carries a domestic sourcing clause, you need a domestically produced 10-32 machine screw instead.
4) What size Phillips driver do I need for these 10-32 flat head screws?
A #2 Phillips. The recess on the JFMP93 measures 0.198 in. diameter, 0.124 in. deep, with a 0.032 in. slot width, so a #2 bit seats fully. Using a #1 will cam out and chew the recess on a 2 inch screw that needs real torque to drive home.
5) How is this screw packaged, and what is the minimum I can buy?
These ship 100 screws to a jar, and the jar is the order minimum, so the smallest purchase is 100 pieces. Packed weight is 1.41 lbs.
6) How much load will a 10-32 zinc machine screw hold?
Rated 1200 lb minimum tensile on the JFMP93, with hardness Rockwell B70 to B100. That is ordinary carbon steel machine screw territory, fine for mounting devices, straps, brackets and enclosure hardware. It is not a structural or grade 5/grade 8 fastener, so do not substitute it where a bolt spec is called out on a drawing.
7) Does this machine screw meet a recognized dimensional standard for submittals?
Yes. The JFMP93 is made to ASME B18.6.3-1998 for head and drive dimensions, with threads to ANSI/ASME B1.1. That is the standard a spec or submittal for flat head Phillips machine screws normally cites, so the head geometry will match countersinks drilled to the same standard.
8) What trades normally stock a 2 inch 10-32 flat head Phillips screw?
It is a standard MRO and rough-in fastener for the electrical, plumbing and HVAC trades. Electricians use the 2 inch length for device mounting through built-up rings and for fastening straps and brackets; the zinc yellow version of these screws is also common in electronics assembly. Maintenance shops keep the jar on hand because 10-32 is the thread most device and enclosure hardware uses.
