Metallics JFMP92 10-32 x 1-1/2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.34
$0.34

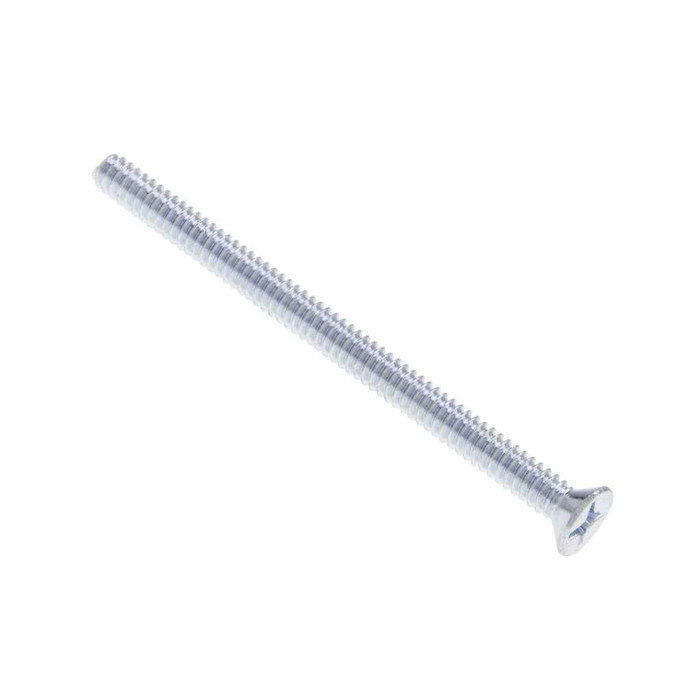

Metallics JFMP92 10-32 x 1-1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP92 10-32 x 1-1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP92
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.34
$0.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Flat head with Phillips Drive
    • Steel Zinc Material
    • 10-32 Diameter, 1-1/2" Length
    • Zinc yellow screws are popular in electronics applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.04 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP92 – Frequently Asked Questions

1) Is zinc plated steel good enough for an outdoor or damp location?
Zinc plated carbon steel is a dry, indoor-rated finish. The JFMP92 is AISI 1006-1022 steel with a zinc plating, which handles interior panels, boxes, enclosures and mechanical rooms fine, but it will corrode in exterior, wet or coastal exposure. For those openings use a 300 series stainless machine screw in the same 10-32 x 1-1/2 size instead.
2) Are these screws Buy American or ARRA compliant for a government job?
No. The JFMP92 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project has domestic sourcing requirements, these will not satisfy them.
3) What size Phillips driver do I need for the Metallics JFMP92 screws?
A #2 Phillips. The recess is 0.198 inch in diameter and 0.124 inch deep, so a #1 will cam out and a #3 will not seat. Keep a #2 bit on the drill or driver and you'll drive these clean.
4) How many Metallics JFMP92 screws come in a jar, and can I buy just a few?
They ship as a 100-piece jar, and 100 is the order minimum, so one jar is the smallest buy. Each jar weighs 1.04 lbs.
5) Do these Metallics machine screws meet a recognized dimensional spec for submittals?
Yes. Head and recess dimensions are built to ASME B18.6.3-1998 and the threads to ANSI/ASME B1.1, which is what you cite on a submittal when the spec calls for a standard flat head machine screw. Material is AISI 1006-1022 steel.
6) What trades actually use the Metallics FM and FMP machine screws?
The FM and FMP series is stocked for the electrical, plumbing, and heating and air conditioning trades. In practice that's panel and enclosure work, device and plate mounting, duct and equipment hardware. The zinc yellow version of these screws is common in electronics work.
7) Can I get the same screw in a different length or a larger quantity?
Yes, other sizes and quantities in the Metallics FM and FMP flat head Phillips machine screw line are available by request. The JFMP92 itself is the 10-32 x 1-1/2 inch in zinc plated steel, packed 100 to a jar.
