Metallics JSPM19SS 10-32 x 1/2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.50
$0.50

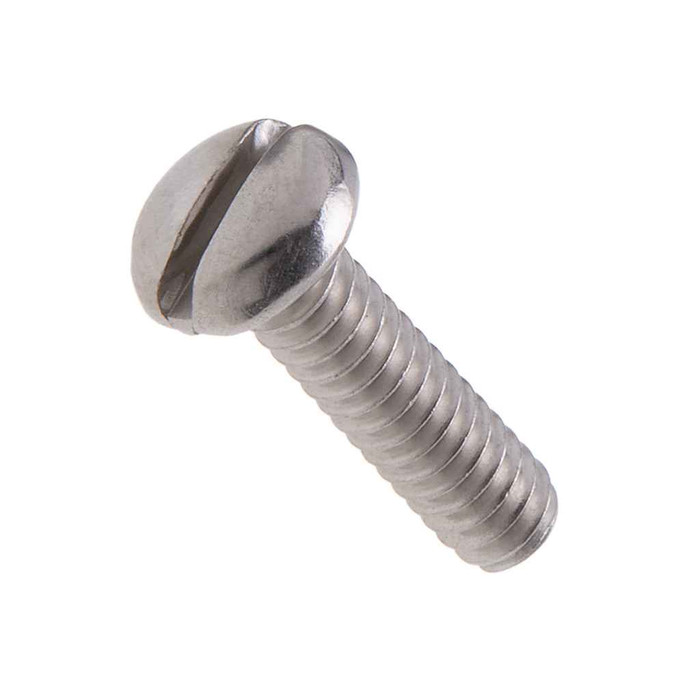

Metallics JSPM19SS 10-32 x 1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSPM19SS 10-32 x 1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPM19SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.50
$0.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • 18-8 Stainless Material
    • Pan head with slotted Drive
    • 10-32 Diameter, 1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.099 - 0.11 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
2-Jan
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.59 lbs
Product Width:
3 in
Slot Depth:
0.053 - 0.068
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPM19SS – Frequently Asked Questions

1) Will a 10-32 x 1/2 in. machine screw work for mounting device plates and switch covers?
10-32 is the standard thread for electrical device and cover plate mounting, and the Metallics JSPM19SS is a 10-32 thread at 32 threads per inch with a 1/2 inch length. The pan head sits nearly flush with a low 0.099 to 0.11 inch head height and a 0.357 to 0.373 inch head width, so it covers a standard plate hole without standing proud. Half an inch of length suits plate-to-strap work; for deeper standoffs or ganged spacers you want a longer screw.
2) Are these stainless screws OK for outdoor or damp-location electrical work?
The screws are 18-8 stainless, the austenitic grade used where plated steel would rust, so they hold up in wet, damp, and exterior boxes and in washdown areas far better than a zinc-plated machine screw. 18-8 is not the grade to pick for direct saltwater immersion; that is 316 territory.
3) Will these pan head slotted screws interchange with the screws already in my existing plates and boxes?
They are built to ASME B18.6.3-2010, the dimensional standard for slotted and recessed head inch machine screws, with SAE as the material standard. That means head and thread geometry match any other 10-32 pan head slotted screw made to the same standard, so they drop into existing 10-32 tapped straps and brackets. The slot measures 0.05 to 0.06 inch wide and 0.053 to 0.068 inch deep, which is standard flat-blade territory.
4) How many Metallics JSPM19SS screws come in a jar, and is there an order minimum?
They ship in a jar of 100, and 100 count is the order minimum. If you need a different size or a different count, Metallics offers other sizes and quantities by request.
5) Do these screws meet Buy American requirements for a government or institutional job?
The Metallics JSPM19SS is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement file usually needs on a fastener line item. Country of origin is listed as multiple.
6) Should I buy slotted or Phillips machine screws for device plate work?
Slotted is the traditional choice for electrical device and plate screws because a flat blade on a lineman's screwdriver drives them and the slot lets you align the head cleanly. The JSPM19SS is slotted drive only. If your crew runs cordless drivers all day, a Phillips or combination head machine screw is the easier call, since a slot cams a powered bit out.
7) What is the tensile strength of these 18-8 stainless machine screws?
Rated at 80,000 psi minimum, with a hardness of Rockwell BBS-B9S. Metallics notes that tensile values for stainless screws are approximations, since there is no single performance standard for stainless machine screws. For structural or load-bearing fastening, use a graded steel bolt rather than a stainless machine screw.
8) What does a jar of 100 of these Metallics screws weigh for shipping?
The packaged jar is listed at 0.59 lbs, with a packed size of 3 x 3 x 2.15 inches.
