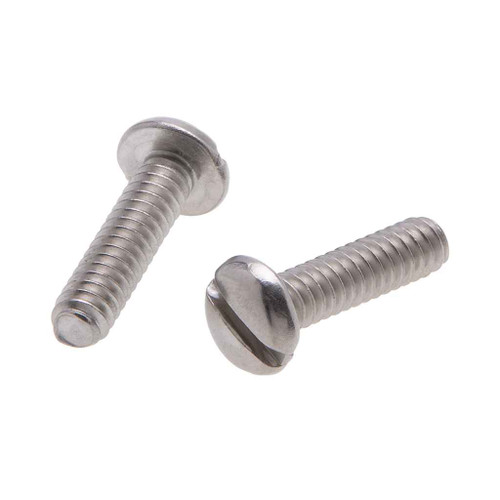

Metallics JSPM15SS 8-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSPM15SS 8-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPM15SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.51
$0.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Pan head with slotted Drive
    • 8-32 Diameter, 1" Length
    • 18-8 Stainless Material

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Slotted
Driver Size:
#2
Fastener Head Height:
0.085 - 0.096 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
1
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.63 lbs
Product Width:
3 in
Slot Depth:
0.045 - 0.058
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPM15SS – Frequently Asked Questions

1) Will a 1 inch long 8-32 screw be too long for a flush device box?
It can be. At 1 inch of thread, mounting a receptacle or switch straight to a flush-set box leaves excess screw protruding past the yoke into the box, which eats wiring room. Use the 1 inch length where you are spanning a plaster ring, extension ring, or a recessed box, and drop to a shorter 8-32 for flush mounting.
2) How wide is the pan head, and will it cover an oversized hole in a cover plate?
Head diameter runs 0.306 to 0.322 inch with a head height of 0.085 to 0.096 inch. That is the standard ASME B18.6.3 pan head footprint for an 8-32, so it bears on a normal device or cover plate hole but will not bridge a worn or oversized opening. For that, add a flat washer or step up to a fender washer under the head.
3) Is 18-8 stainless the right choice for outdoor or damp-location electrical work?
18-8 stainless is the usual pick for wet and damp locations and coastal exteriors because it resists rust where a plated steel screw will bleed and seize. These are 18-8 stainless through the whole screw, not plated, so a scratched head does not become a corrosion point. For heavily chloride-exposed marine work, 316 stainless is the step up.
4) How many screws come in a jar, and can I buy fewer than 100?
They ship 100 to a jar, and 100 count is the order minimum. If you need a different size or a different pack quantity, Metallics offers other sizes and quantities by request.
5) Do these machine screws meet Buy American requirements for a public project?
The JSPM15SS is flagged compliant for both Buy American and ARRA, which is what a government, school or municipal procurement file typically needs on a fastener line item. Country of origin is listed as multiple, so if your contract requires a single named origin, that is the point to verify on the specific lot.
6) Are these the same as a sheet metal or self-tapping screw?
No. The JSPM15SS is a machine screw with uniform 8-32 UNC threads running the full length, so it needs a pre-threaded hole or a nut. It will not cut its own thread in sheet metal the way a self-tapping screw does. If you are fastening into bare sheet, you want a sheet metal screw or a tapped hole plus this screw.
7) What size screwdriver do I need for these slotted pan head screws?
A #2 driver. The drive is a straight slot, 0.045 to 0.054 inch wide and 0.045 to 0.058 inch deep, so a #2 flat blade seats properly without camming out. If you are running these with a power driver, a slotted bit in that width is what to load.
8) What is the tensile strength of these stainless machine screws?
80,000 psi minimum, with hardness reported as Rockwell BBS-B9S. Worth knowing before you spec it on anything structural: there is no single performance standard for stainless machine screws, so Metallics publishes tensile values as approximations. For a load-bearing connection, use a graded steel bolt rather than an 8-32 stainless machine screw.
