Metallics JSPM10SS 6-32 x 1 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.46
$0.46

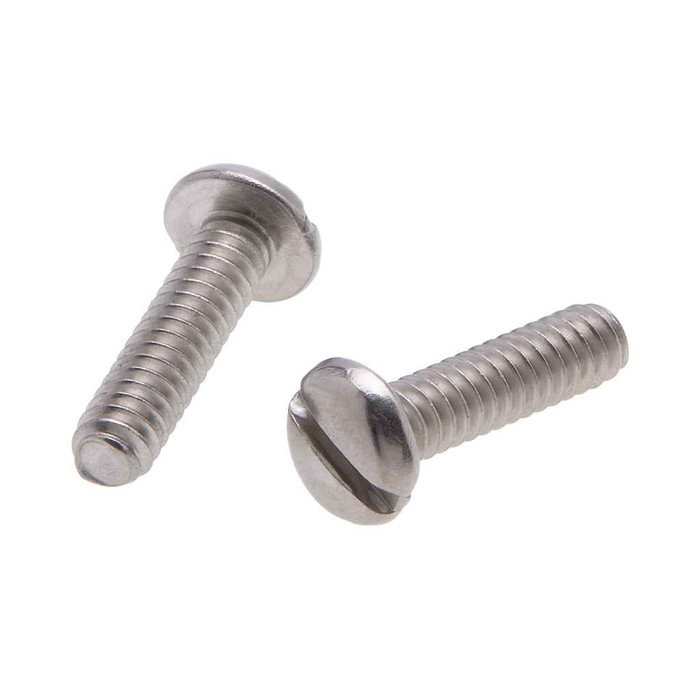

Metallics JSPM10SS 6-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSPM10SS 6-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPM10SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.46
$0.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 1 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with slotted Drive
    • 18-8 Stainless Material
    • 6-32 Diameter, 1" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.072 - 0.082 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
1
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.43 lbs
Product Width:
3 in
Slot Depth:
0.037 - 0.05
Slot Width:
0.039 - 0.048
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPM10SS – Frequently Asked Questions

1) Do these machine screws meet a recognized dimensional standard for government or spec work?
Dimensions conform to ASME B18.6.3-2010, the standard for inch-series machine screws, and the material follows SAE. The screws are also listed as ARRA compliant and Buy American compliant, which is what a public-agency or federally funded project submittal normally asks for. Country of origin is multiple.
2) Are these stainless machine screws OK for outdoor or wet locations?
The JSPM10SS screws are 18-8 stainless, which is the austenitic grade normally specified for damp, outdoor, and washdown environments where a plated steel screw would rust and seize. For coastal or chemical exposure, 316 stainless is the step up.
3) How many 6-32 x 1 in. stainless screws come in a jar?
They ship in a jar of 100, which is the order minimum (100 count). Ordering by the jar is the practical way to stock a truck or an MRO crib rather than scavenging screws out of device boxes.
4) Will the pan head sit flush enough under a wall plate?
The head on these 6-32 screws runs 0.256 to 0.27 in. across with a head height of 0.072 to 0.082 in., so it is a low-profile pan rather than a domed round head. That head height is what keeps it from fouling a wall plate or a cover that sits close to the device.
5) How strong is an 18-8 stainless 6-32 screw compared to a plated steel one?
Tensile strength on these is 80,000 psi minimum, with hardness reported as Rockwell BBS-B9S. Keep in mind there is no single standard for the performance of stainless machine screws, so treat stainless tensile figures as approximations. Stainless also galls more readily than plated steel when driven hard into a tapped hole, so run them in without over-torquing.
6) Can I get this 6-32 pan head slotted screw in another length or a bigger pack?
The SPM series covers other sizes and quantities by request, so if 1 inch is longer than you need or 100 count is short for a large multi-family or institutional job, the same pan head slotted 18-8 stainless screw can be sourced in other configurations.
