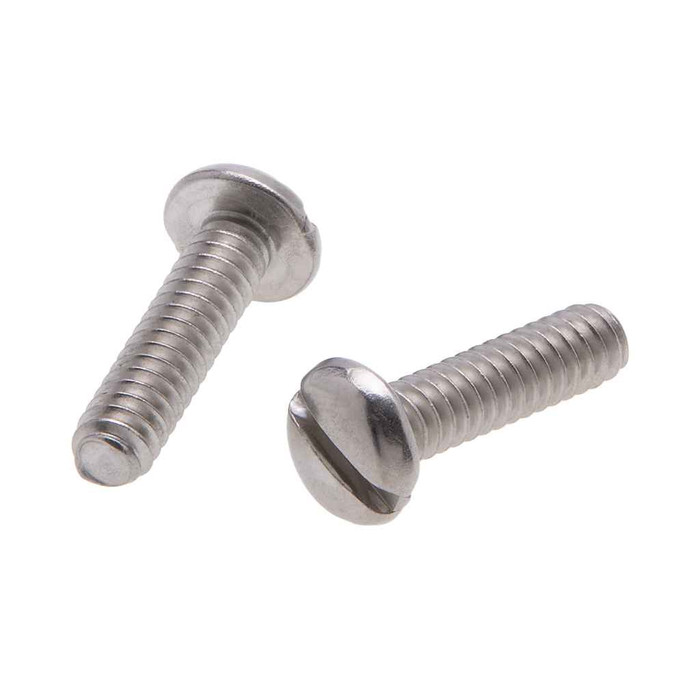

Metallics JSPM6SS 6-32 x 1/4 in. Pan Head Slotted Machine Screws - 18-8 Stainless - Each

They are made from 18-8 stainless steel, the austenitic 300 series grade used where corrosion resistance matters, so they hold up in damp and exterior locations far better than plated carbon steel. Minimum tensile strength is 80,000 psi, with a Rockwell hardness rating of BBS-B9S. Note that tensile values for stainless screws are approximations; there is no single performance standard for stainless machine screws.

Metallics lists the JSPM6SS as both Buy American compliant and ARRA compliant. Country of origin is recorded as multiple, so if a contract requires a single named country of manufacture on the submittal, confirm the origin on the lot you receive.

They ship in a jar with a minimum order of 100 count, so one purchase unit is a 100 piece jar. Smaller counts are not offered, though Metallics lists other sizes and quantities available by request.

Head width runs 0.256 to 0.270 in. and head height 0.072 to 0.082 in. That is roughly a quarter inch of bearing surface, which covers a standard 6-32 clearance hole but will not bridge a sloppy or enlarged hole. For that you want a fender or finishing washer under the head, or a truss head screw with a wider, lower crown.

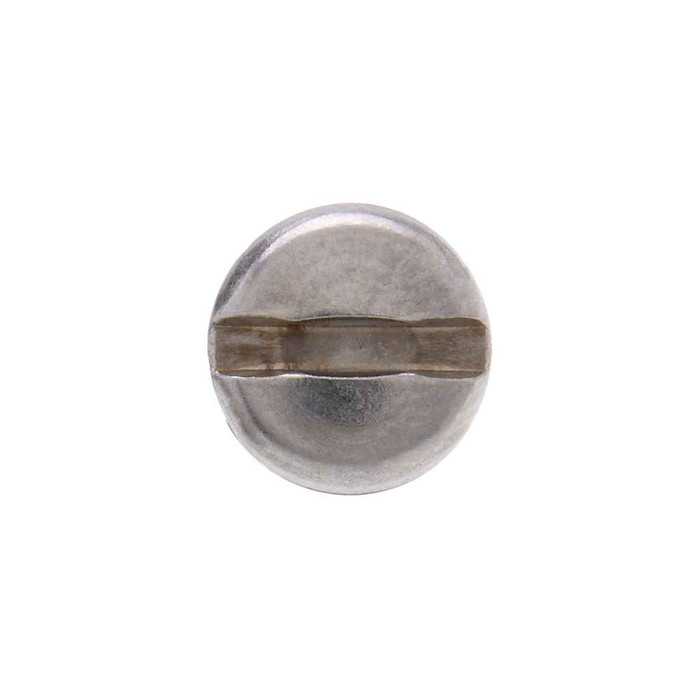

Slotted drive only, so a flat blade is what you need. The slot measures 0.039 to 0.048 in. wide and 0.037 to 0.05 in. deep, which is a shallow slot typical of a small pan head, so use a tip that fills the slot and keep the driver square to avoid camming out. If your crew runs Phillips bits in impact drivers, spec a Phillips pan head instead.

They are manufactured to ASME B18.6.3-2010, the standard for machine screws and tapping screws (inch series), with material called out to SAE. That is the reference to cite on a submittal when a spec calls for standard inch-series pan head machine screws.

The jar is listed at 0.21 lbs, measuring 3 in. by 3 in. by 2.15 in. Light enough to carry a few jars on the truck without thinking about it.
