Metallics JFWP31 10 x 1-1/2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.29
$0.29

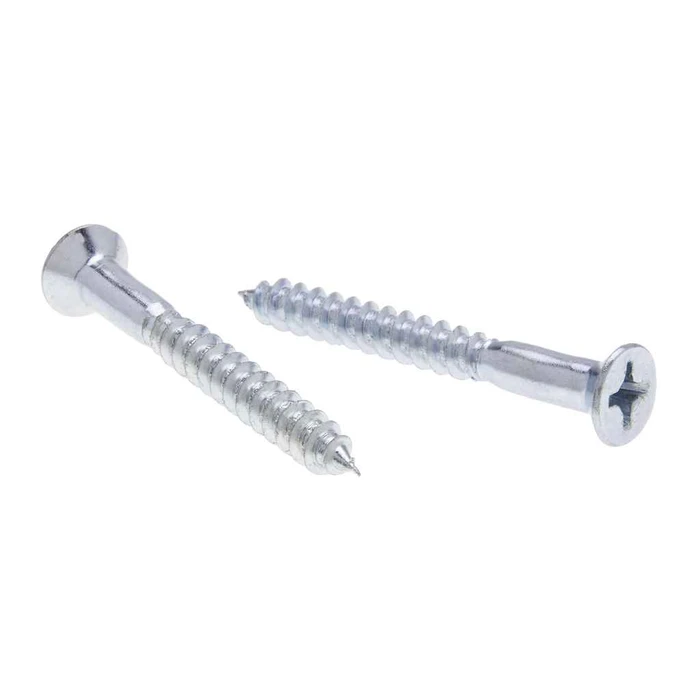

Metallics JFWP31 10 x 1-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

Metallics JFWP31 10 x 1-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFWP31
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.29
$0.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

  • Features

    • 10 Diameter, 1-1/2" Length
    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • Steel Zinc Material
    • Flat Head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Steel_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.123 - 0.146
Phillips Recess Diameter:
0.245 - 0.258
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.99 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWP
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFWP31 – Frequently Asked Questions

1) Are these Metallics wood screws rated for exterior or wet locations?
No. The JFWP31 is steel with a zinc finish, which is a dry indoor plating. Zinc plated steel will rust in exterior, damp, or treated lumber contact. For outdoor strapping or pressure treated wood, use a stainless or hot dip galvanized wood screw instead.
2) Will these screws satisfy a Buy American or ARRA requirement on a federal job?
No. The JFWP31 is not Buy American compliant and is not ARRA compliant, and the country of origin is listed as multiple. On a job with domestic sourcing language, these will not pass.
3) What driver bit do I need for Metallics JFWP31 wood screws?
A #3 Phillips bit. The JFWP31 is a Phillips drive screw with a #3 driver size, so a #2 bit will cam out and chew the recess. The recess itself runs 0.245 to 0.258 inch in diameter and 0.123 to 0.146 inch deep.
4) How many screws come in a jar of Metallics JFWP31 and can I buy fewer?
They ship in a jar with a 100 piece minimum, so 100 is the smallest order quantity. The jar weighs 0.99 lbs. Other sizes and quantities can be had by request.
5) Do these screws meet the standard dimensions our spec calls out for wood screws?
Yes. The JFWP31 is built to ASME B18.6.1 for dimensions, with threads to ASME B18.6.1-1997. That is the standard commonly cited on fastener submittals for slotted and recessed head wood screws.
6) Can I use #10 x 1-1/2 wood screws to hang electrical boxes and conduit straps to wood studs?
That is exactly the intended use. Metallics lists the JFWP31 for electrical, plumbing, heating and air conditioning work, and the 1-1/2 inch length gives plenty of bite into a stud or joist behind a device box or a one hole strap.
7) Is the #10 x 1-1/2 in. screw fully threaded or partially threaded?
Partially threaded. On the JFWP series, a screw longer than 1 inch carries thread over about two thirds of its length, leaving a shank under the head. That unthreaded shank is what lets the screw clamp two pieces of wood tight instead of jacking them apart.
8) Do these wood screws need a pilot hole, and will they self start in softwood?
The JFWP31 has a tapered point with 13 threads per inch, so it will start in softwood without much help. In hardwood or near an edge, drill a pilot, since a tapered point wood screw displaces rather than cuts and can split the stock.
