Metallics JFWP33 10 x 2-1/2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.44
$0.44

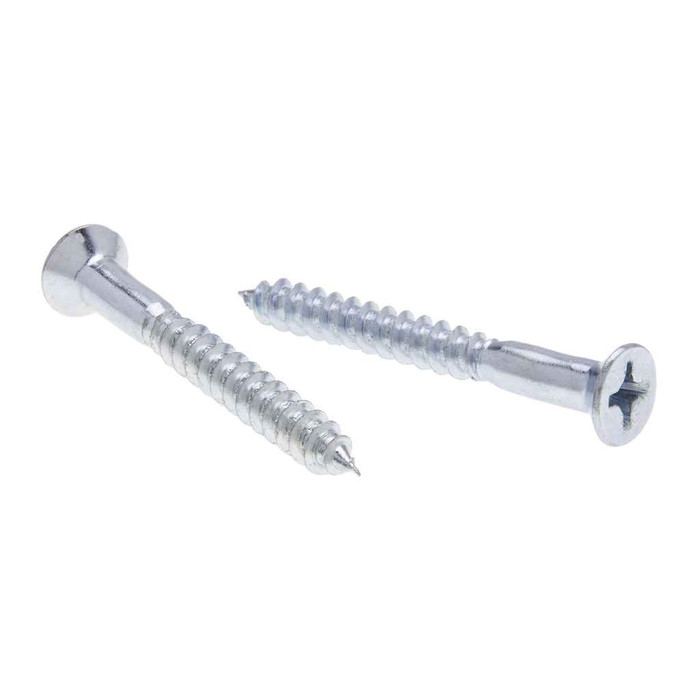

Metallics JFWP33 10 x 2-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

Metallics JFWP33 10 x 2-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFWP33
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.44
$0.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 2-1/2 in. Flat Head Phillips Wood Screws - Steel Zinc - 100qty

  • Features

    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • Steel Zinc Material
    • Flat Head with Phillips Drive
    • 10 Diameter, 2-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Steel_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.123 - 0.146
Phillips Recess Diameter:
0.245 - 0.258
Phillips Recess Width:
0.034
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.59 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWP
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFWP33 – Frequently Asked Questions

1) Are Metallics JFWP33 wood screws Buy American or ARRA compliant for a government job?
No on both counts. The JFWP33 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, these will not clear it and you need a domestically sourced flat head wood screw instead.
2) Do these Metallics wood screws sit flush, or do they stand proud of the surface?
They countersink flush. The JFWP33 has a flat head measuring 0.34 to 0.385 inch across with a 0.116 inch head height, so in a properly countersunk hole the head disappears below the surface. That is what you want under a strap, a box mounting ear, or anything that has to lie flat against the wood.
3) Will these screws self-start in hardwood, or do I need to drill a pilot hole?
Drill a pilot. The JFWP33 has a tapered point, not a self-drilling or type-17 auger point, so it relies on a pilot hole in hardwood or near an edge where splitting is a risk. In soft framing lumber the taper will start on its own with a #3 Phillips bit driving it.
4) How much of a 2-1/2 inch wood screw is actually threaded?
On the JFWP33, roughly the bottom two thirds. Metallics threads these so that past a 1 inch length the screw carries about 2/3 thread, leaving an unthreaded shank under the head. That shank is what lets the flat head pull the top piece tight against the substrate instead of the threads holding the two boards apart.
5) How much does a jar of Metallics JFWP33 screws weigh for shipping or truck stock?
The jar of 100 runs 1.59 lbs. Small enough to keep several sizes on the van without eating into payload, and it is the figure to use when you are working out a bulk restock across multiple lengths.
