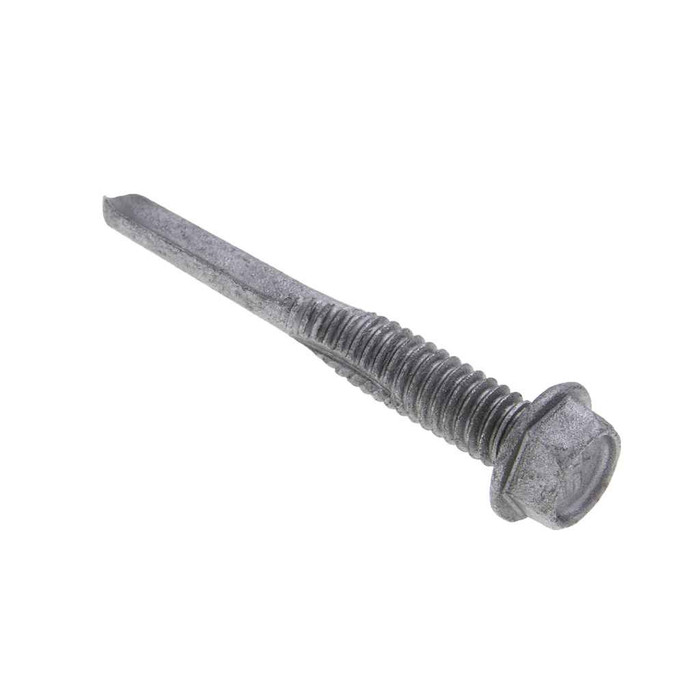

12 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - Steel Zinc - 456qty
Additional Notes
- Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request
Features
- 5/16 Hex Head with Hex Drive
- Made in the USA
- 12 Diameter, 1-1/4" Length
- Steel Zinc Material
- #5 Drill Point
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 456 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.6.3-2010
- Division:
- Electrical H1
- Drill Point Size:
- #5
- Drive Type:
- Hex
- Fastener Head Height:
- 0.139 - 0.155 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.305 - 0.312 in.
- Fastener Length:
- 1/1/04
- Hardness:
- Rockwell C32-40
- Language Code:
- EN
- Material Standard:
- AISI 1016 - 1024
- Order Minimum Imperial:
- 1
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Jar
- Panel Thickness:
- 0.110 - 0.210 IN
- Product Group:
- Screws
- Screw Point Type:
- Drill Point
- Slot Depth:
- 0.077 - 0.093
- Slot Width:
- 0.056 - 0.067
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 14
- Thread Standard:
- SAE J78 - 2013
- Torsional Strength:
- 92 lb-in minimum
- Washer Od:
- 0.398 - 0.432 in.
- Washer Thickness:
- 0.022 - 0.039 IN
- Width Across Corners:
- 0.34
- Department:
- Fasteners
- Product Subgroup:
- Tapping Screws
- Product Type:
- Self-Drilling Screw
- Type2:
- Type BSD Heavy Duty Drill Screw
- Series:
- TXV
- Product Finish:
- Zinc
- Product Details:
- Type BSD Heavy Duty Drill Screw
- Product Material:
- Steel Zinc
Metallics TXV12114ZVLB – Frequently Asked Questions
1) Will these screws satisfy a Buy American or ARRA requirement on a public job?
No. The TXV12114ZVLB is flagged not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your project has domestic sourcing language in the spec, this part will not clear the submittal and you need a domestically certified fastener line instead.
2) Do I need a pilot hole for these Metallics hex head drill screws?
No pilot hole. These are Type BSD drill screws with a drill point that cuts its own hole and then taps the thread as it drives, intended for steel-to-steel work. Drive them with a 5/16 hex socket on a screwgun and keep steady pressure until the point breaks through.
3) Is there a built-in washer under the head on the TXV12114ZVLB, or do I add one?
There is an integral washer face under the hex head, 0.398 to 0.432 inch outside diameter and 0.022 to 0.039 inch thick. That spreads the clamp load on the panel, so no separate washer is required for steel-to-steel fastening. If you are clamping a soft or oversized hole, add your own washer.
4) Can zinc plated drill screws be used outdoors or in a damp mechanical room?
The finish is zinc plating over steel, which is a general purpose indoor and protected corrosion finish. It is fine for mechanical rooms, interior steel framing, strut and equipment mounting. For direct weather exposure, roof curbs, coastal sites or treated lumber contact, specify a stainless or coated-capped fastener instead.
5) What thread pitch do these #12 drill screws have, and what spec are they built to?
14 threads per inch on a #12 diameter, 1-1/4 inch long body. Threads conform to SAE J78-2013, head dimensions to ASME B18.6.3-2010, and the steel is AISI 1016-1024. If a submittal calls out a self-drilling tapping screw to SAE J78, this meets it on paper.
6) How are these Metallics drill screws packaged, and can I buy a small quantity?
They come in a jar, and the order minimum is 1 each, so you are not forced into a case to get a jar on the truck. Other sizes and quantities are available by request if the 12 x 1-1/4 does not match your gauge or grip.
