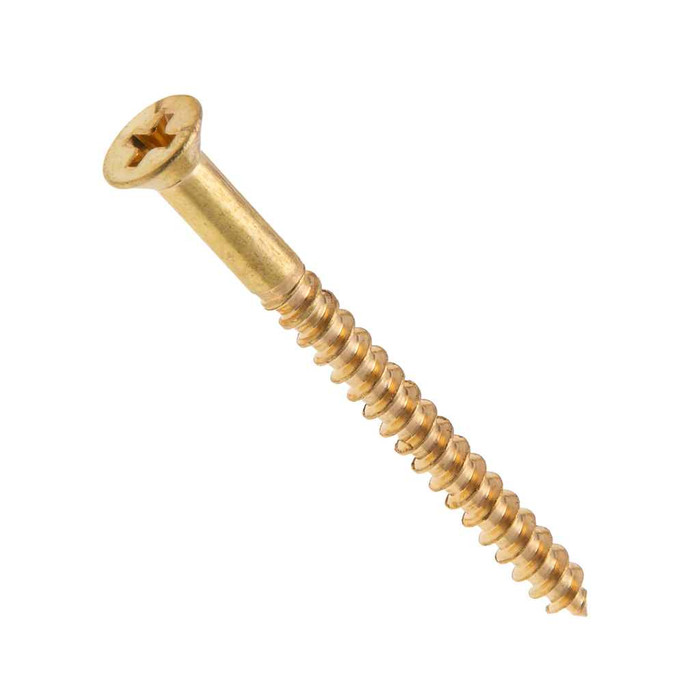

Metallics JFWPB52 12 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB52 12 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB52
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.07
$1.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Flat Head with Phillips Drive
    • 12 Diameter, 1-3/4" Length
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
China
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.132 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.389 - 0.438 in.
Fastener Length:
1/3/04
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.148 - 0.171
Phillips Recess Diameter:
0.270 - 0.283
Phillips Recess Width:
0.036
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.35 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB52 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JFWPB52 brass wood screws?
A #3 Phillips bit. The JFWPB52 uses a Phillips drive, and the recess is sized at 0.270 to 0.283 inch diameter with a 0.036 inch recess width and 0.148 to 0.171 inch depth. A #2 bit will cam out and chew up a brass head, so bring the #3.
2) How deep do I need to countersink for a #12 flat head brass wood screw?
Plan the countersink around a head 0.389 to 0.438 inch across and 0.132 inch high. Cut the cone to that diameter and the flat head sits flush with the surface, which is the whole point of a flat head in trim or finish work. Under-cut it and the head stands proud; over-cut it and you bury the head below the face.
3) Why would I use brass wood screws instead of steel on a job?
Brass is the material here, and it's the usual call where the screw is visible on finish hardware, marine or damp interior trim, or where you don't want a steel screw staining oak or reacting with a brass plate or hinge. The trade-off is strength: brass is softer than steel, so drill a pilot hole and drive it with the right #3 Phillips bit or you will twist a head off.
4) Do the Metallics JFWPB52 screws come loose or in a package, and is there a minimum order?
They ship in a jar, with a minimum of 100 count. If you need a different size or a different quantity of the same brass flat head Phillips wood screw, the series is made in other sizes and pack quantities by request.
5) Will Metallics brass wood screws meet a Buy American or ARRA requirement on a federal job?
The JFWPB52 is flagged compliant for both ARRA and Buy American, and the country of origin on record is China. If your specification is a strict domestic-melt-and-manufacture clause rather than a general compliance flag, take the origin into account before you submit it.
6) What dimensional standard do these #12 flat head wood screws follow?
Head, drive and thread are built to ASME B18.6.1, with the thread specifically to ASME B18.6.1-1997. That's the standard for wood screws, so the head diameter, countersink angle and thread form interchange with any other #12 x 1-3/4 wood screw made to the same spec.
7) How much does a jar of 100 Metallics JFWPB52 wood screws weigh?
About 1.35 lbs for the jar, which matters if you're building out a stocking order or a job box and counting weight across a lot of fastener lines.
